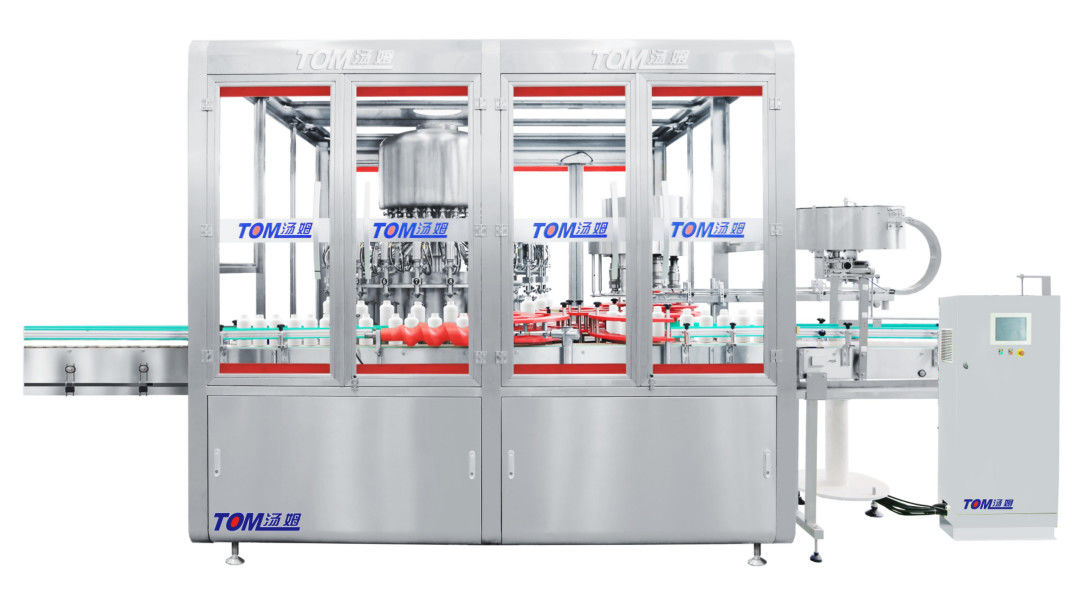

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GXCC Series

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 60 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

2 In 1 rotary filling and capping machine

,

Monoblock rotary filling and capping machine

,

High Speed rotary filler and capper

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine

Intelligent High Speed Rotary Filling And Capping 2-In-1 Monoblock Machine

Major characteristics:

1. Integrate filling and capping function, compact structure, save space.

2. Weighing type filling, suitable variety kinds of liquid, special for liquid which uneven density or with bubble.

3. Change moulds are fast loading type, accurate positioning, change over time only need 10 minutes.

4. Magnetic force capping, controllable torque, ensuring that every bottle’s capping torque is the same.

5. Safety door alarm protection, ensuring the security of operator, integral prevention, more environmental.



Technical parameters

No. Items Performance
01 Dimensions 3000mm (L) ×2200mm (W) × 2450mm (H)
02 Filling/ capping head 24-6/20-6
03 Suitable bottle Diameter: Φ50mm~ Φ180mm height:120mm~350mm (May customized)
04 Packing specification 100ml-1L / 1L-5L (may customize)
05 Production capacity (1L) 1L≧6000 bottles/hour; 4L≧3600 bottles/hour
06 Measurement error ≤±4g
07 power supply 380V;50/60HZ
08 host power 5.5KW
09 Air supply 0.55MPa~0.65MPa clean and stable source of gas supply with gas
10 Air consumption 200L/minute
11 Bottle inlet direction From left to right



High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 0



High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 1

Machine details:

Filling nozzle:

The filling nozzle is designed according to the characteristics of liquid products, and nozzle diameter is based on bottle mouth diameter, high processing accuracy, good sealing, smooth filling and no leakage.

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 2



Most of machine materia is SS304, machine running sable with high speed, long service life

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 3



Plc control, the changeover time is within 30 minute, fast loading and unloading.

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 4



The pass rate of the screw cap is close to 100%, the torque is adjustable, convenient and fast, and the stability is good. High pass rate:

Good versatility: Adopts correct capping type, suitable to the anti-theft cap and straw caps.

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 5



The cap sorter can incessantly feed caps to capping machine, match to capping machine

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 6





Application products:

This filling and capping machine is applicable for various bottles and caps

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 7

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 8







Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 9



Tom's logistic department will load the goods into container direclty in Tom factory

High Speed 2 In 1 Monoblock Rotary Filling And Capping Machine 10
