Product Details
Place of Origin: Changzhou, China
Brand Name: TOM
Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO
Model Number: GXY-6DYZ-1XZ
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery
Delivery Time: 60 WORKING DAYS
Payment Terms: T/T
Supply Ability: 25SETS/MONTHLY
Material: |
SS304 Or SS316L |
Pneumatic Element: |
Airtac |
Electronic Element: |
Siemens, Schneider Or Panasonic |
Filling Tank: |
Including |
Liquid Level Sensor: |
Including |
No. Of Filling Nozzle: |
4 Or 6 |
No. Of Capping Head: |
1 |
Material: |
SS304 Or SS316L |
Pneumatic Element: |
Airtac |
Electronic Element: |
Siemens, Schneider Or Panasonic |
Filling Tank: |
Including |
Liquid Level Sensor: |
Including |
No. Of Filling Nozzle: |
4 Or 6 |
No. Of Capping Head: |
1 |
Major characteristics:

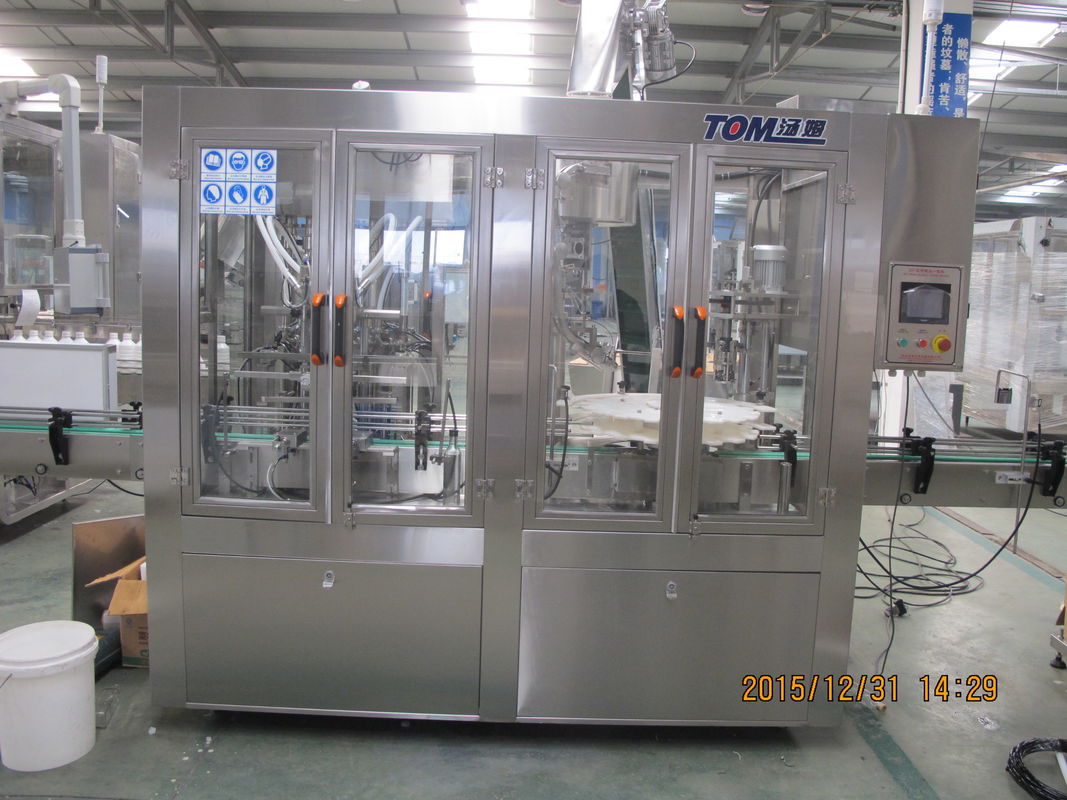

This is a monoblock machine combines filling and capping, applicable for various bottles and liquids.
PLC computer system and touch screen controlling, friendly machine human interface, Simple operation, convenient maintenance, it is an ideal packing machine for customers with small productivity required.
The capping system bears the function of cap sorting and tightening.
All parts which contact with filling products are made of qualified stainless steel, the surface has been polished well, nice appearance, friendly environment, comply with GMP standard.
Technical parameters:
| No. | Items | Performance |
| 01 | Power supply | AC 220V;50Hz |
| 02 | Power | 2.5 Kw |
| 03 | Bottle diameter | Φ40mm ～ Φ100mm (may customize) |
| Bottle height | 60mm ～230mm (may customize) | |
| 04 | Cap diameter | Φ20mm ～ Φ70mm (may customize) |
| Cap height | 15mm ～30mm (may customize) | |
| 05 | No. Of filling nozzle | 6 head |
| 06 | No. Of capping head | 1 head |
| 05 | Production capacity | 1500 bottles/hour |
| 06 | Machine weight | 1800 Kg |
| 07 | Machine dimension (L×W×H) | 3000mm x 1000mmx2200mm |
Machine details:
Filling nozzle:
The filling nozzle is designed according to the characteristics of liquid products, and nozzle diameter is based on bottle mouth diameter, high processing accuracy, good sealing, smooth filling and no leakage.
Most of machine materia is SS304, machine running sable with high speed, long service life, the piston can fall of piston cylinder during self-cleanning process
Plc control, the changeover time is within 30 minute, fast loading and unloading.
The pass rate of the screw cap is close to 100%, the torque is adjustable, convenient and fast, and the stability is good. High pass rate:
Good versatility: Adopts correct capping type, suitable to the anti-theft cap and straw caps.
The cap sorter can incessantly feed caps to capping machine, match to capping machine
Water-proof and dust proof electric box
Application products:
This filling and capping machine is applicable for various bottles and caps
Packaging & Shipping
The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.
Tom's logistic department will load the goods into container direclty in Tom factory
