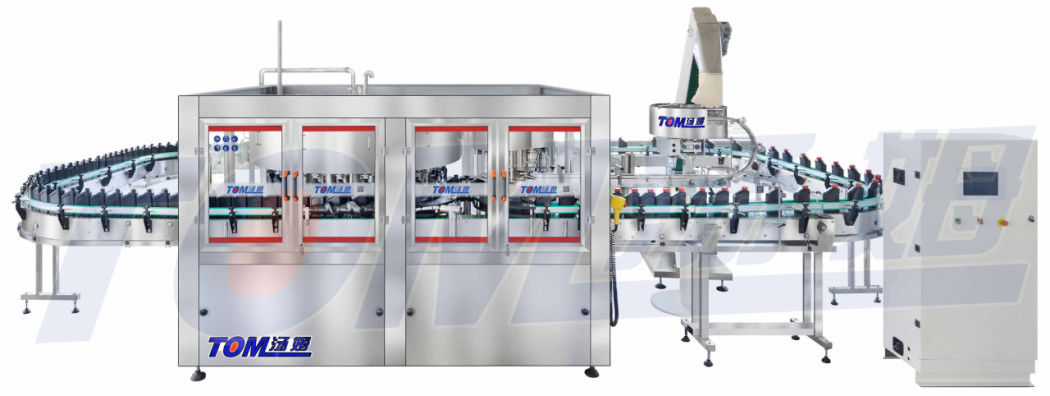

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: GXXC-20-6

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days

Payment Terms: L/C, T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

Piston Monoblock Filler Capper Machine

,

Fully Automatic Monoblock Filler Capper Machine

,

100ml automatic bottle filling and capping machine

Model:
GXXC-20-6
Filling Range:
100ml-1L
Filling Head:
20 Heads
Capping Head:
6 Heads
Warranted:
One Year
Capacity:
5000bph
Accuracy:
+/-0.5% For 500ml
Materials:
SUS304
Model:
GXXC-20-6
Filling Range:
100ml-1L
Filling Head:
20 Heads
Capping Head:
6 Heads
Warranted:
One Year
Capacity:
5000bph
Accuracy:
+/-0.5% For 500ml
Materials:
SUS304
Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L

GXXC-20-6 Fully Automatic PLC Control Piston Filling and Capping for 100ml-1L

Major characteristics:

Major characteristics:

20 rotary piston filling, 8 rotary cap, SUS304 stainless steel host frame, tempered glass door, sealing ring outer frame, cleaning liquid, waste liquid collection tank and discharge outlet with air inlet at the top of the filling machine.



The filling department:

1. Filling department: the filling mouth is designed exclusively by Tom Company, with high processing accuracy, good sealing and smooth filling without drip leakage.Filling device: the filling mouth is inserted into the bottle, the material flows down the inner wall of the container, and rises with the liquid level, reducing the foam produced by the material impact, so that the filling speed is stable without splashing.



  • Tank liquid level protection: in addition to the normal working liquid level control, high and low liquid level detection and sound and light alarm devices are added to prevent abnormal liquid level;The main machine will automatically alarm and stop when the liquid level is abnormal. Meanwhile, the feed valve or feed pump can be controlled.

Adopt no dead Angle material box, visual material box, can form automatic cycle cleaning, simple structure without wearing parts.


 Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 0

 Technical parameters:

Dimension

3500mm×2500mm×2300mm

Filling Head 20
Capping Head 6
Suitable bottle diameter Φ60mm-Φ145mm(can customize)
Height 80mm-380mm(can customize)
Packing specification 100ML-1000ML
Speed 5000BPH( for 500ml)
Filling error 100g<±0.5g
Pneumatic air source 0.65MPa clean and stable air source
Power supply AC380V 50HZ
Power 7.5 kw


Partial Introduce:

Protection:

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 1

The main machine is equipped with safety door interlocking device. If the safety door is not closed properly during normal production, the equipment can not run and alarm.The lock of the safety door cannot be opened during the operation of the device. You must remove the interlock of the safety door on the operation screen.Laminated tempered glass is inlaid on the door, and a protective cover is added on the top of the filling machine (as shown in the picture on the right).



Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 2

Depending on the type of cap, choose suitable method to grab cap (cap grip, mechanical clutch cap, vacuum absorb cap, etc.)

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 3


The touch screen support adopts 360 degrees rotating support, easy to operate, simple and generous appearance, strong practicability, and gives the operator a kind of arbitrary enjoyme



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 4





















Packaging & shipping:

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 5



warehouse for finished machine:

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 6



Loading picture:

Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 7



Company Overview--Jiangsu Tom Group



Fully Automatic Piston Monoblock Filler Capper Machine 100ml-1L 8
