SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine

Product Details

Place of Origin: China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: YDGP-4-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days for single machine

Payment Terms: T/T, L/C

Supply Ability: 5 sets per month

Get Best Price
Highlight:

Bag filling and capping machine

,

Automatic filling and capping machine

,

SUS304 monoblock machine

Control:
By HMI And PLC
Capacity:
1000bph
Guarantee:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Filling Range:
100ml-500ml
Automatic Grade:
Automatic
Filling Liquid:
Softer
Control:
By HMI And PLC
Capacity:
1000bph
Guarantee:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Filling Range:
100ml-500ml
Automatic Grade:
Automatic
Filling Liquid:
Softer
SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine

YDGP-4-1 SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine



Major characteristics:

This model is suitable for flat bags with hard mouths, pillow bags and stand-up pouches filling and capping. It can be filled with various forms of liquid and paste. The machine is stable in operation and wide in application range, which provides another packaging form for bag.

This machine adopts programmable logic control (PLC) computer control, frequency conversion speed regulation, high degree of automation, perfect bag feeding device, convenient specification replacement, and can be added at any time without cover. The motor control components used in this machine are all selected from international famous brands, and the material contact parts are made of high-quality stainless steel materials. It is an ideal packaging equipment for daily chemical, lubricating grease, medicine, pesticide, fertilizer, food and other industries.





Technical Parameter:

No. Items Performance
01 Mainframe dimensions 2000mm × 1800mm × 2000mm
02 Weight :about 1200kg
03 Bag mouth inner diameter ≥ φ18mm (≤ φ18 bottle can be customized)
04 Power supply AC380V; 50HZ
05 Machine power 3.5kw
06 Filling amount 100ml-500ml
07 Filling error ≤ ±0.5%
08 Need to prepare gas source 0.5-0.65MPa clean dry air source
09 Air consumption 220 L/ min
10 Number of filling heads 4 heads
11 number of capping 1 head
12 Water line cover height 950mm ± 50mm
13 The height of the bottom of the man-machine interface about 1400mm from the ground
13 Production capacity about 1200 bags / hour(for 500ml, real speed depends on the bag mouth diameter and filling materials)



Machine Picture:

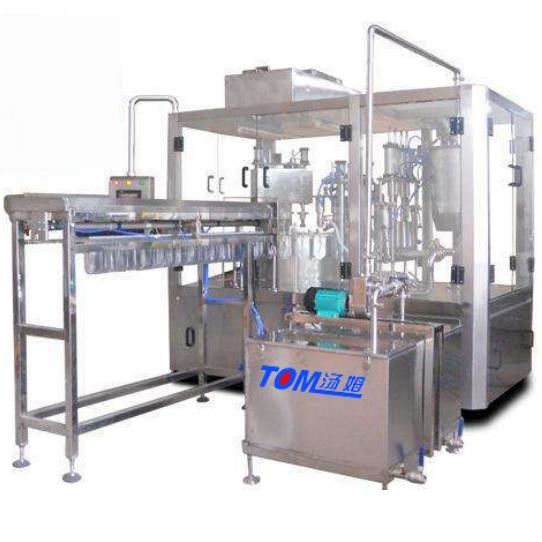

SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine 0



Partial introduce:

Bad feeding part: hang the bags on this device by manual, bag sending device push the roll to finished bag feeding, interlock control with main machine’s motor.

SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine 1



Filling part:adopts piston filling way, each station corresponds to the corresponding bag mouth for filling

SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine 2



Cap feeding part:automatic cap feeding and sorting, cap sorter located on the top of the main machine, feeding caps through the cap falling groove.

SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine 3



Capping part: external scale magnetic torque clutch cap

SUS 304 PLC Controlled Automatic Stand Up Bag Filling And Capping Machine 4
