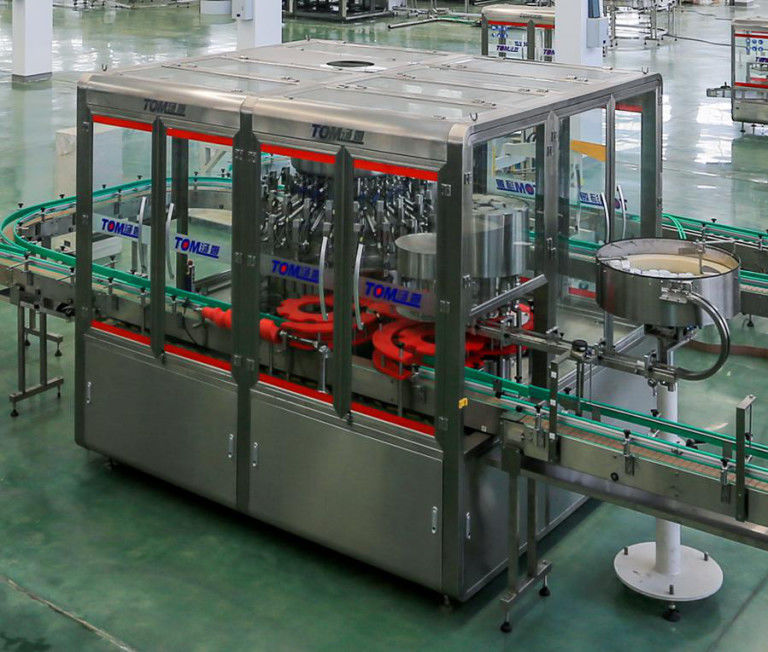

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: GXXC-24-8

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days

Payment Terms: L/C, T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

5L automatic weight filling machine

,

1L automatic weight filling machine

,

6000BPH weigh filler

Model:
GXXC-24-8
Filling Range:
1L-5L
Filling Head:
24 Heads
Capping Head:
8 Heads
Warranted:
One Year
Capacity:
6000bph
Accuracy:
+/-0.5% For 1000ml
Materials:
SUS304
Model:
GXXC-24-8
Filling Range:
1L-5L
Filling Head:
24 Heads
Capping Head:
8 Heads
Warranted:
One Year
Capacity:
6000bph
Accuracy:
+/-0.5% For 1000ml
Materials:
SUS304
1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH

GXXC-24-8 Fully Automatic PLC Control Weight Filling and Capping for 1L-5L

Major characteristics:

This machine is filling and capping 2 in 1 machine, inlet bottle, filling, cap sorting,cap pressing, outlet bottle, checking, high degree of automation, production capacity, filling using online dynamic weighing measurement, display and control unit separately and independently of the automatic elimination of excessive control and calibration procedures.

1)Using the programmable controller (PLC), high-speed weighing module for real-time monitoring, volume adjust by one key control.

2)each filling head combine PLC, weighing feedback module, Through the man-machine interface control machine dose adjustment and single head dose control

3)Machine design and meet GMP requirements, all piping, valves connected using quick, easy removal

4)Capping part using position pressing,inlet drum direction setting photoelectric sensors, no barrel no supply cap, under the capping head have protection devices.

5)Include automatic cap feeding, photoelectric cap sorting, the cap sorter have reject function(checking foil)

6)The height of filling machine and capping can adjust, adjust it in the touch screen, capping adopt same torque (can control)

7)Inlet bottle by screw, transport bottle’s bottom, different bottle only need change some relate part, adopt flexible construction under the filling valve, avoid to damage weighing sensor

8)Install two-way automatic checking device for filling substandard goods, capping unqualified automatically removed.

9)Configuration of SKF dry oil lubrication device, automatic timing refueling point grease injection system load detection switch protection, when the oil blockage automatic alarm

10)compact, perfect control system, easy operation, high degree of automation, for lack of a bottle, pour bottles, full bottles, bottle block achieve automatic control, along with no bottle no filling,fault filling valve blocked does not feeding bottle and cap.




 Technical parameters:

Dimension

3500mm×1100mm×2300mm

Filling Head 24
Capping Head 8
Suitable bottle  customize
Suitable cap customize
Packing specification 1L-5L
Speed 56000BPH( for 500ml)
Filling error 100g<±0.5g
Pneumatic air source 0.65MPa clean and stable air source
Power supply AC380V 50HZ
Power 7.5 kw


Partial Introduce:

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 0

Protection:

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 1

The main machine is equipped with safety door interlocking device. If the safety door is not closed properly during normal production, the equipment can not run and alarm.The lock of the safety door cannot be opened during the operation of the device. You must remove the interlock of the safety door on the operation screen.Laminated tempered glass is inlaid on the door, and a protective cover is added on the top of the filling machine (as shown in the picture on the right).



1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 2

Depending on the type of cap, choose suitable method to grab cap (cap grip, mechanical clutch cap, vacuum absorb cap, etc.)

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 3


The touch screen support adopts 360 degrees rotating support, easy to operate, simple and generous appearance, strong practicability, and gives the operator a kind of arbitrary enjoyme



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 4





















Packaging & shipping:

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 5



warehouse for finished machine:

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 6



Loading picture:

1L-5L Automatic Weight Filling Machine 24 Heads 6000BPH 7
