Product Details
Place of Origin: China
Brand Name: TOM
Certification: CE, ISO,CO
Model Number: FJ-300GD
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Sea Worthy Packing
Delivery Time: 50 working days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Filling Type: |
By Weight And Screw |
Application: |
For Liquid, Powder, Granule |
Model: |
FJ-300GD |
After-sales Service Provided: |
Online Support Or Dispach Engineer |
Voltage: |
220V/380V |
Weight: |
1200KG |
Filling Range: |
200g-1000g |
Speed: |
15 Bags/min |
Filling Type: |
By Weight And Screw |
Application: |
For Liquid, Powder, Granule |
Model: |
FJ-300GD |
After-sales Service Provided: |
Online Support Or Dispach Engineer |
Voltage: |
220V/380V |
Weight: |
1200KG |
Filling Range: |
200g-1000g |
Speed: |
15 Bags/min |

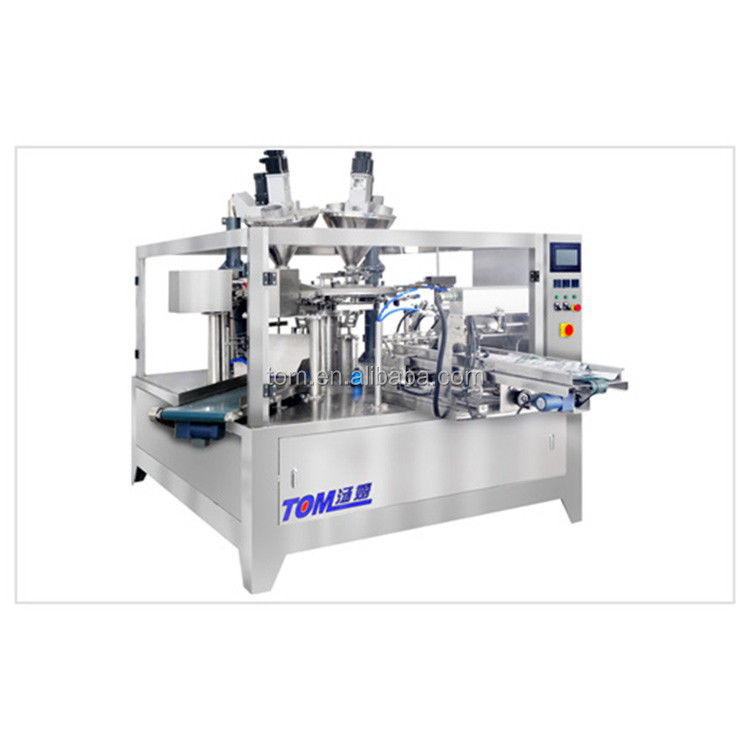

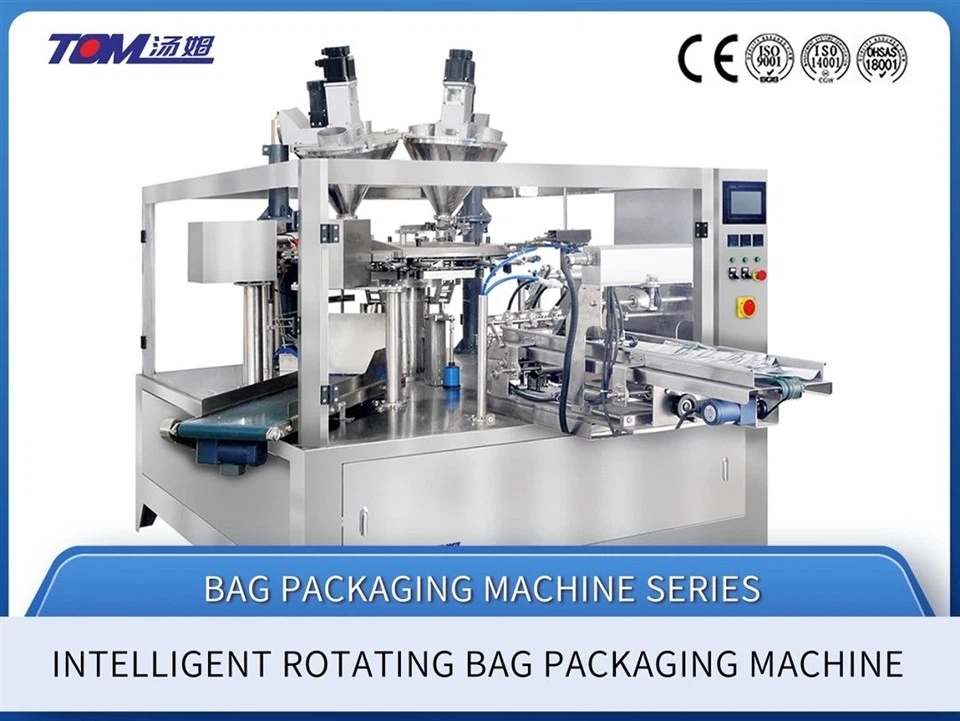

This machine mainly consists of fully automatically packing machine and auger. It is a good choice for pesticide powder, coffee powder, spices, additives and other powder materials. It is also good choice for liquid, jam material filling ,as juice, catsup, béchamel, chili sauce, liquid soap ,detergent and so on.
1. Machinery handbag -printing -bag opening filling -jolt air pressed -sealing - shaping -embossing -finished product outputting
2. Touch screen control panels , no operator’s intervention ,fully automatically control ,PLC executive machinery ,and movement reliability , easy to operate ,no environment pollution .
3. The mainframe is adjusted by exported frequency conversion .
4. The packaging bags are good looking qualified , which it has printed and heat-sealed for twice .
5. The machine is designed with unitary service position ,so the mouth of the bottle is unruffled .
6. The part which contact with filling materials are made of stainless steels . It is clean , anti-corrosion ,durability .
7. It is provided with automatic metering machine according to the requirement of the filling materials , automatic screw filling machine ,intelligent compound balance and other products ,which are suitable for metering automatically to compound a line.
Technical parameters
| Model | FJ-300 | FJ-210 |
| Packing size | 200*300-300*450mm | 100*150-210*320mm |
| Filling Range | 500g-1000g | 100g-500g |
| Packing Speed | 600-900bags/hour | 600-900 bags/hour |
| Power supply | 5KW | 4KW |
| Machine dimension(L*W*H) | 3000mm*2300mm*2200mm | 2700mm*2000mm*2200mm |
| Machinery station | Eight | |
| Packing materials | Stand up bag,four sides sealing bag,three size sealing bag | |
| Machine weight | About 900kg | |
| Pneumatic air source | 0.6MPa clean and stable air source | |
Partial Introduce:
work flow diagram
1.manually put the bag in the feeding oart of the main machine, machine will automatic suck the bag.
2.Automatic bag opening(opening the bag up and down at the same time and blowing the bag on the top to assist open the bag)
3.The rough filling by compressing filling head, the dust removing port is installed in the filling position, the dust generated by the filling is sucked, and the cylinder under the filling head is blocked.
4. Accurate filling, first weigh the rough filled material, determine the small amount, then add it, and add the side to weigh until the set filling amount is stopped. This position also installs the vacuum port irrigation. The loaded material enters the flat position of the bag opening, and the dust suction port is installed above the bag
5. Enter the heat seal sealing position, and then vent and seal before sealing
6. Enter the sealing cold press shaping position (can be equipped with steel printing code)
7. Delivery of the machine through the belt
8. The belt at the exit of the machine will be packaged and delivered out, then manual packed to carton. Feeding Bags →clip Bags → Openings → Filling 1 → Filling 2 → Heat Sealing 1 → Heat Sealing 2 → Shaping → Output
Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.
Packaging & shipping:
warehouse for finished machine:
Loading picture:
