24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: DGP-CZ-24-6

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 60 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

2 In 1 Automatic Lubricant Oil Filling Machine

,

8 Heads Automatic Lubricant Oil Filling Machine

,

24 Nozzle Lubricant Filling Machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Number Of Filling Nozzle:
24
Number Of Capping Head:
8
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Number Of Filling Nozzle:
24
Number Of Capping Head:
8

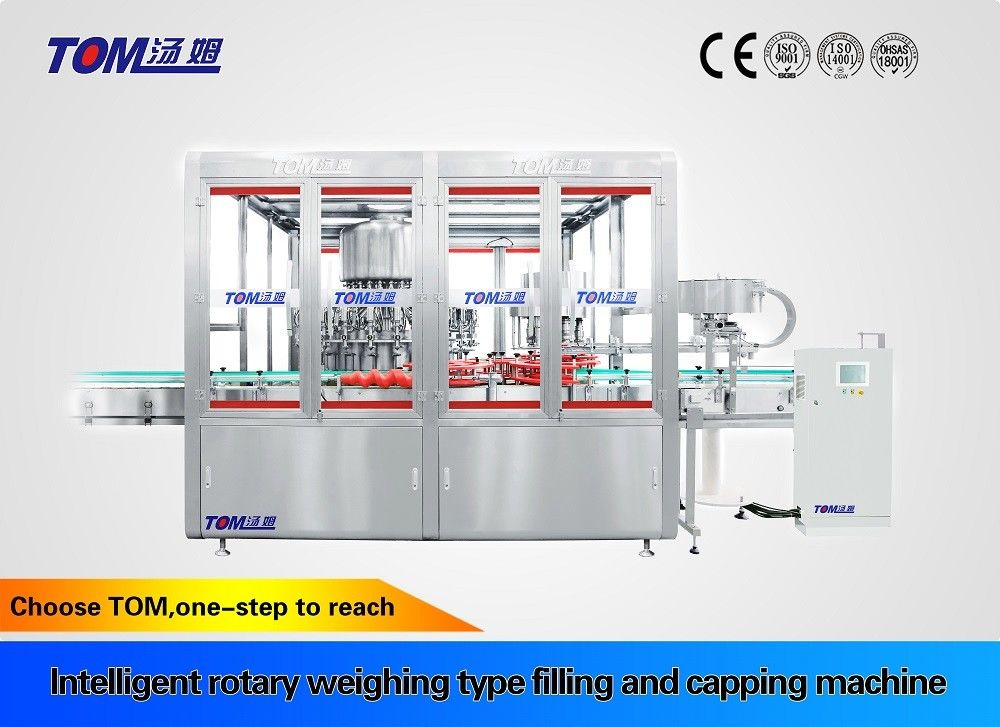

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine

Automatic PLC Controlled 24 Nozzle Filler And 8 Heads Capper 2-In-1 Lubricant Filling Machine

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 0

Major characteristics:

1. This machine is newly developed filling and capping machine ,with highly antomation and large capacity . It is automatic controlled by PLC and touch screen controlled panel, It is an ideal integration of mechanic,electric ,light and gas . The machine has exceeded the top level of the similar type .
2.This machine is the integration of mechanics and electrics filling specifications can easily be changed by altering parameters on touch screen controll panel .Each of filling head can be adjusted respectively . The computer has the function of memorizing the related parameters of each packing specifications , so that it can save time for the second adjustment .The filling head adopts double-speed filling style without any dripping. There is a weighing and feed-back system in every filling head.
3.During the process ,the key parts are protected by integration of mechanics and electrics . If there is anything abnormal, it will automatically stop and alarm, then the touch screen will hint the abnormal part.
4.Based on the design of water-proof and pneumatic protection , there is no pollution to the environment of workshop .



Technical parameters

No. Item Performance

01

Machine overall imension(L×W×H) 3500mm×2500mm×2300mm

02

No. of filling heads 24

03

No. of capping heads 6

04

Filling error ±5g (test by water )

05

Machine weight About 3000kg

06

Suitable bottle mouth ≥φ20mm (may customized)

07

Suitable bottle volume 1L-5L

08

Power supply AC380V;50HZ

09

Power 6.5kw

10

Air source / air consumption 0.6MPa clean and stable compressed air; 300L/min

11

Production capacity 1-5L:5500-10000bottle /hour (it will be different ,according to material and volume of packing container )

12

Capper conveyor height 950mm±50mm



Machine details:

The main filling and capping parts including 24 nozzle filling nozzles and 8 heads cappin heads, filling by weight with high filling accuracy and filling speed,

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 1



Each filling station has a weight scale, we use Mettler Toledo weighing scale to keep high filling accuracy

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 2



The capping heads suitable for varous kind of caps, and he capping heads are customized according to customer's cap sample, if the cap diameter is different, the capping heads need to change accordingly, but the changeover time is quick.

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 3



The bottle inlet screw is used for separate bottle one bye one enter into filling station smoothly

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 4



The crooked cap detector and rejector, is the capped bottle is unqualified such as cap is crooked, or cap is missing, this bottle will be rejected automatically

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 5



This is the aluminum foild detector and rejector, if the aliminum foil is missing, the bottle will be rejected automatically

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 6



This is the cap sorter, the cap sorter and sorting the caps to capping station one by one automatically, it has linkage function with the cap elevator and capping machine, if the cap sorter bowl is full, the cap elevator will stop feeding cap into sorter, if cap sorter is lacking caps, the elevator will start work again.

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 7



This is the cap transfer station, the capping head will grasp cap here and put cap onto bottle

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 8



Application products:

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 9



Conveyor and drip gutter: the conveyors before filling and after filling equipped with drip gutter also, to prevent liquid drop on ground and pollution workshop.

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 10



Cable trays: simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 11



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 12



Tom's logistic department will load the goods into container direclty in Tom factory

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 13

24 Nozzle 8 Heads 2 In 1 Automatic Lubricant Oil Filling Machine 14
