PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Model Number: LP-8

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 50 Working Days

Payment Terms: L/C, T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

PLC Controlled Chemical Packaging Machine

,

Chemical Packaging Machine Automatic

,

Square bottle unscrambler

Automatic Grade:
Automatic
Warranty:
1 Year
Voltage:
220/380V
Materials:
SUS304
Capacity:
5000bph
Suitable Bottle:
1L-4L
In-feed Direction:
From Left To Right
Power:
4.5kw
Automatic Grade:
Automatic
Warranty:
1 Year
Voltage:
220/380V
Materials:
SUS304
Capacity:
5000bph
Suitable Bottle:
1L-4L
In-feed Direction:
From Left To Right
Power:
4.5kw
PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler

LP-8 PLC Controlled Automatic High Speed Square Bottle Unscrambler



summarize:

The machine adopts PLC combine each actuator into whole.Also can modified the data which has been set to meet different customers' needs. This machine adopts frequency stepless adjustment dial speed rotary movement, so that the barrel under the action of the rotational force sequentially into the conveyor belt, and packaging production line.





Major Parameters:

NO. Name Parameter
1 Machine’s size(L×W×H)

special designed according to customer’s bottle

2 Weight about 1500kg
3

Specification of bottles

1L-4L

4 Power supply AC380V;50HZ
5 Max power About 4.5kw
6 Pneumatic air source/air consumption 0.6MPa clean and stable air source; 18m³/h
7 Capacity about 5000bph
8

In-feed direction

:from left to right
9 Packing line’s height 950mm±50mm

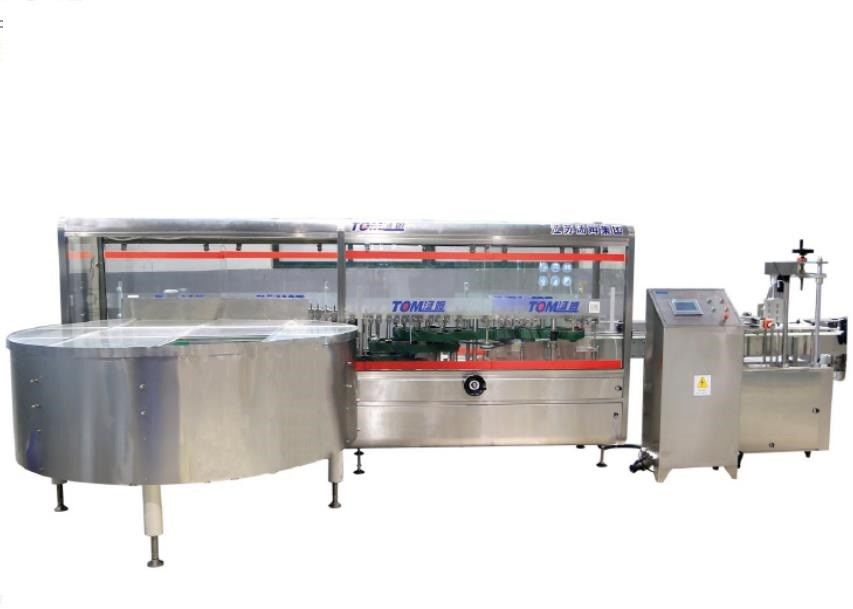

Machine's Main picuture:

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 0





Detailed introduce:



1.Bucket conveyor bucket to bottle unscrambler, the justifications for the overall level of gap by side and adjust track width to achieve the bottle standing in the side street. Simple structure, high success rate, greatly increased the rate of the barrel.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 1

2. The brush dial-out the standing bottles and inclined bottles, only allow the bottles in with crosswise, in case of bottle jam and block.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 2

3. Bottle-in belt, crosswise bottle go into the standing organization through the belt, make the bottle separately. The belt adopts special materials which don’t hurt the bottles.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 3



4.Pressure bottle roller , preventing lateral bottle tilt, to ensure its stable stand into the barrel body, with roller way to reduce friction.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 4

5.The belt which make bottle standing is sloping belt , the bottle can stand when it go fast and does not require complicated procedures can be achieve a bottle standing, to ensure high-speed and stable yields.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 5



Safety door:

All doors are equipped with photoelectric induction, emergency door opening, machine shutdown alarm to ensure personnel safety.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 6



Electrical parts:

The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 7



Packaging & shipping:

All the machines are wrapped with film, and then fixed with carbon steel , outside use plywood case packed which totally suitable long distance sea shipping.

PLC Controlled Chemical Packaging Machine Automatic Square Bottle Unscrambler 8
