6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler

Product Details

Place of Origin: China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: LP-6B

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days for single machine

Payment Terms: T/T, L/C

Supply Ability: 10 sets per month

Get Best Price
Highlight:

6000BPH Chemical Packaging Machine

,

100ml Chemical Packaging Machine

,

1L Automatic Bottle Unscrambler

Control:
By HMI And PLC
Capacity:
6000bph For 100ml
Guarantee:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Suitable Bottle:
100m-1L Round Bottle
Automatic Grade:
Automatic
Control:
By HMI And PLC
Capacity:
6000bph For 100ml
Guarantee:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Suitable Bottle:
100m-1L Round Bottle
Automatic Grade:
Automatic

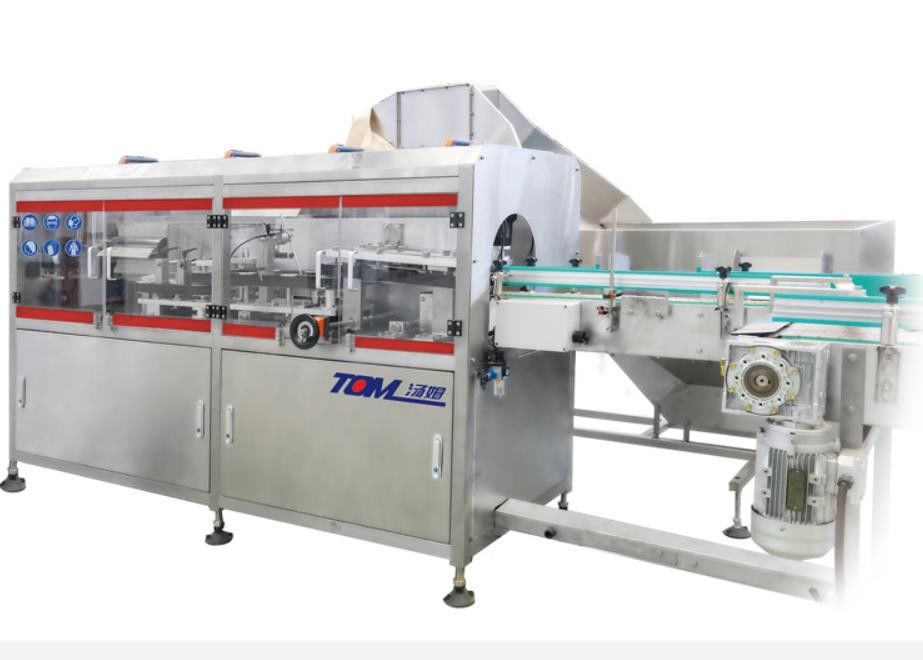

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler

Chemical Packaging Machine LP-6B Automatic Bottle Unscrambler



Major characteristics:

LP-6BY Automatic Bottle Unscrambler consists of a bottle feeding machine, a bottle stopper, a bottle-removing part, a bottle-making part and an electric box. A large number of disordered bottles from the bottle machine is put into the bottle-shaped turntable, and through the conveyor belt to the bottle parts, so that the bottle can be erected to convey to the user's conveyor belt. The compact structure, the principle is simple, the technology is mature, the action is stable and reliable. Native species change as long as the bottle bucket belt replacement, other components without the need to replace the spare parts can be freely adjusted. Making machine according to GMP standards, using high-quality SUS304 stainless steel and aluminum materials processing quality aluminum. Nice machine, high efficiency, can adapt to various work environments, this machine has drive parts are transparent shield, safety, and environmental protection.



Technical Parameter:

Suitable Bottle diameter: Φ40-95mm, Height:80-250mm
Air pressure 0.5~0.7 Mpa
Infeed direction from left to right
Total power 4.5kw
Production capacity 100ml-500ml<8000bottles/hour 500ml-1000ml<6000bottles/hour
Host Dimensions 3445mm×1600mm×1500mm
Weight about 1250kg





Machine details:

When changing bottles, don’t need to change any moulds, 100ml-1000nl bottles are can be used on this machines. Easy and fast to adjust,when changing different bottle specification, only changed the belt’s quantities and the distance of the spare parts(each belt driven by servo motor separately, capacity, quality and stable are with huge improvement ).

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 0



Equipped with coordinated photoelectricity, when the bottles on the back conveyor are blocked, the bottle sorting is suspended, and when the back conveyor is smooth, the bottles are sorted again to achieve a perfect connection with the back packaging equipment; the unmanned operation of the whole machine can be realized.

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 1

Equipped with an inverted bottle rejection device. When the bottle is sorted out, the inverted bottle is detected photoelectrically, and the cylinder kicks the inverted bottle into the bottle collection bucket.

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 2



Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 3



Ware hourse for finished packed machines:

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 4



Loading machines into container:

We have a professional logistics team responsible for shipping

6000BPH Chemical Packaging Machine 100ml Automatic Bottle Unscrambler 5
