Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: XG-1

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

Carbon Steel semi automatic capping machine

,

10 Drums / Minute semi automatic capping machine

,

25L semi automatic capper

Materials:
Carbon Steel
Machine Weight:
200kg
Machine Size:
500*1700*900MM
Suitable Cap:
Suitable Cap
Equipped Power:
AC220V±10% 50HZ
Equipped Air Source:
0.6MPa Clean And Dry Air Source
Materials:
Carbon Steel
Machine Weight:
200kg
Machine Size:
500*1700*900MM
Suitable Cap:
Suitable Cap
Equipped Power:
AC220V±10% 50HZ
Equipped Air Source:
0.6MPa Clean And Dry Air Source
Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L
XG-1 Semi-Automatic Cap Capping Machine (Put Cap On The Drum By Manual)

Product advantages

This machine is special designed for middle and wide mouth barrel scraping and capping. It can be widely used in 10-30L round drum automatic loading cap and capping in coating, petrochemical and other industries.



Technical Parameter:

NO. Item Parameter
  1.
Outside dimension(L×W×H) 500*1700*900MM
  1.
Machine’s weight 600KG
  1.
Equipped power AC220V±10% 50HZ
  1.
Equipped air source 0.6MPa clean and dry air source
  1.
Air consumption 40L/min
  1.
Power supply 3kw
  1.
Capacity 8-10drums/minute
  1.
Suitable cap 5-25L wide mouth cap
  1.
Packing range 5-25L

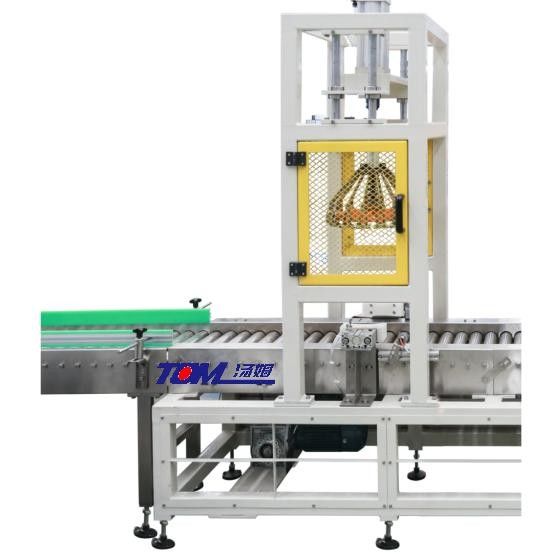

Machine's picture:

Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L 0



Suitable Drum:

Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L 1

Equipment control technical point:

 Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L 2

1. Put cap on the drum by manual

2.The cap pressing device uses a continuous capping machine

3. Adopts inclined roller conveyor, and there is an exhaust device on the side.

4. Height can be adjusted by handwheel. To adapt to different barrel types;

5. The conveying process running stable before capping and make sure no splashing.



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L 3



Packaging & Shipping:

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

Carbon Steel Semi Automatic Capping Machine 8-10 Drums / Minute 5-25L 4
