Plastic Bottle 1L Automatic Capping Machine 3000BPH

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Model Number: FXX-4A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 Working Days

Payment Terms: L/C, T/T

Supply Ability: 25 sets per month

Get Best Price
Highlight:

1L Automatic Capping Machine

,

Plastic Bottle Automatic Capping Machine

,

3000BPH automatic capper machine

Automatic Grade:
Automatic
Type:
Capping Machine
Warranty:
1 Year
Capping Speed:
3000 Bottles/Hour
Voltage:
220/380V
Materials:
SUS304
Capping Head:
4
Suitable Bottle:
100ml-1L
Automatic Grade:
Automatic
Type:
Capping Machine
Warranty:
1 Year
Capping Speed:
3000 Bottles/Hour
Voltage:
220/380V
Materials:
SUS304
Capping Head:
4
Suitable Bottle:
100ml-1L
Plastic Bottle 1L Automatic Capping Machine 3000BPH

FXX-4A PLC Controlled Automatic Capping Machine For Plastic Bottle Within 1L





summarize:

This machine is a new generation of rotary capping machine developed on the basis of the working principle and operation mode of the machine of France's serac company, combined with the specific situation of packaging equipment in China. Its performance and qualified rate of screw cap are the most advanced models in China. The function of catching cap and releasing claw can be comparable with similar products in Europe and America. This product is a mature model of our company which has been tested by the market. Many manufacturers without R & D experience in the market are surveying and mapping products of our company, whose stability is worrying and meets the requirements of GMP certification.





Major Parameters:



NO. Name Parameter
1 Suitable Bottle  100ml-1L
2 Machine weight About 1000kg
3 Suitable cap Φ30-75mm H20-40mm
4 Equipped power supply AC380V;50HZ
5 Power 3.5kw
6 Equipped with air source/consumption 0.6MPa clean and dry air source; 200L/min
7 Capacity 3000 bottles/hour for 1L

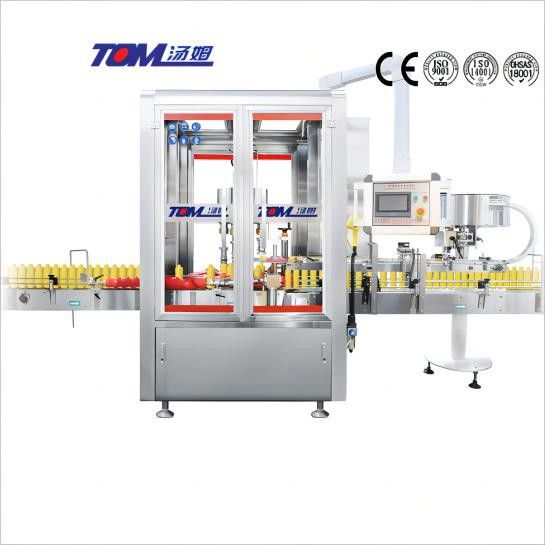

Machine's Main picuture:

Plastic Bottle 1L Automatic Capping Machine 3000BPH 0





Machine’s detailed three vision drawings:

Plastic Bottle 1L Automatic Capping Machine 3000BPH 1



Detailed Introduce:

1. When the bottle entering star wheel detects that the bottle is in, the cap-in cylinder release caps, enter into star wheel, find the cap to screw the cap at the position of the star wheel, and automatically rotate to the starting position after completion;

2. The speed of cap elevator, cap sorter, bottle feeding, capping and bottle conveying can be adjusted by frequency conversion and can be adjusted separately in the touch screen, so as to avoid bottle falling and bottle blocking caused by inconsistent speed and improve working efficiency.

3. For the template with quick installation mode, the corresponding template can be removed by rotating the knob 90 ° to change the specification

Plastic Bottle 1L Automatic Capping Machine 3000BPH 2

The independent motor drives the capping machine. Compared with the multi gear operation of the conventional old capping machine, this capping machine has higher efficiency.

Plastic Bottle 1L Automatic Capping Machine 3000BPH 3

After the capping is completed, the detection device is used to detect the skew cap, no cap and no aluminum foil, and the defective products are eliminated by the swing cylinder elimination device to ensure that the products are 100% qualified



The reverse cap is automatically removed to ensure the qualified rate:

Plastic Bottle 1L Automatic Capping Machine 3000BPH 4





Applicable bottle type:



Plastic Bottle 1L Automatic Capping Machine 3000BPH 5





Packaging & shipping:

Plastic Bottle 1L Automatic Capping Machine 3000BPH 6
