6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads

Product Details

Place of Origin: Changzhou, Changzhou

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: FXB-8F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 60 working days for single machine

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

6000BPH rotary capping machines

,

rotary capping machines 8 Heads

,

12 Heads bottle screw capping machine

Material:
Stainless Steel 304
Capping Speed:
6000BPH
Capping Error:
<0.2%
PLC Control:
Yes
Changeover Time:
Within 30 Minute
Material:
Stainless Steel 304
Capping Speed:
6000BPH
Capping Error:
<0.2%
PLC Control:
Yes
Changeover Time:
Within 30 Minute

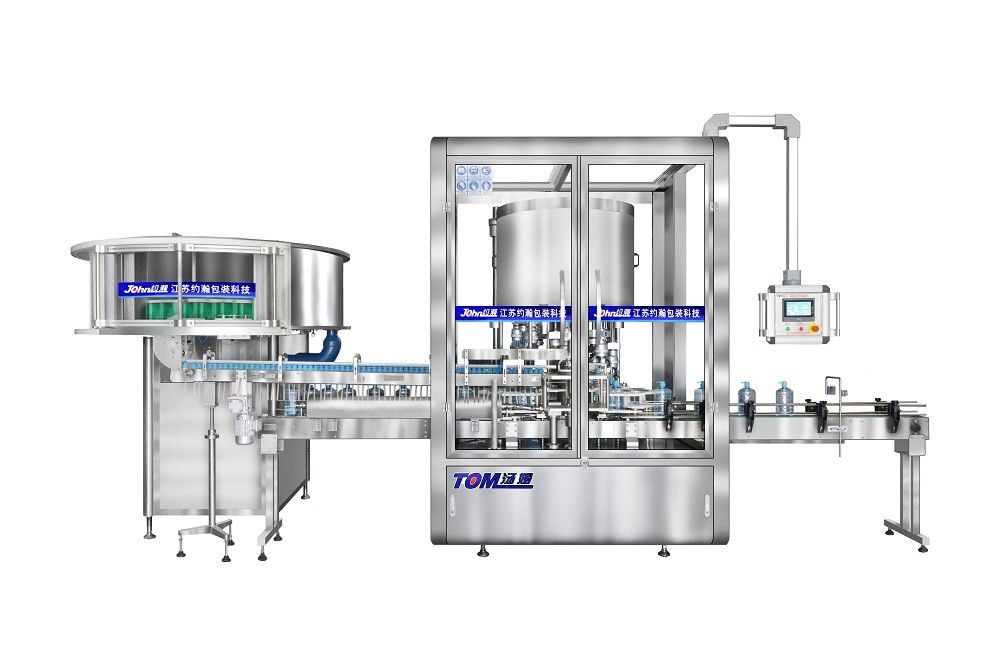

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads

8/10/12 Heads Atutomatic Rotary Pump Cap Capping Machine

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 0



Major characteristics:

This machine is rotary pump capping machine, stable working, widely using range, applicable to round bottle, ellipse bottle and square pail’s capping, high capping rate;

Integrate bottle inlet, cap elevating, cap sorting, cap feeding, caping and bottle outlet, adopts grasping cap and positioning capping, complete the capping process timing with the bottle moving;

Without any damage to the bottle and cap during capping process, get high qualified rate;

The whole machine controlled by PLC, operated by HMI; can comparable to the foreign similar products, with long service life of spare parts, stable working, low noise, widelu using range, high capping rate.



Technical Parameter:

No. Item Performance
01 Overall dimension(L×W×H) 2400mm×1600mm×2800mm
02 Machine weight 2000Kg
03 Suitable pump caps Customized according to client’s caps
04 Number of capping heads 8/10/12 heads
05 Production Capacity 5000/6000/7000 bottles/minute
06 Qualified rate of capping ≥98% (Container mouth center deviation less than 1mm, Container mouth face height deviation less than 1mm)
07 Power supply AC 380V,50Hz
08 Power 4.5~6.5Kw
09 Air operated source 0.6Mpa clean and stable compressed air
10 Filling line height 950mm±50mm
11 The height of touch screen 1300mm≤H≤1400mm (in the direction of bottle outlet)
12 Bottle feeding direction From left to right



Machine details:

1. The machine is intelligentialize and humanization, with the function of automatic interlock protection, alarming, yield counting and manual / auto adjusting; the machine is shield by environmental protection door, to ensure the security of operator.

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 1



Bottle inlet and outlet star wheel

When change bottle specification, all the star wheel adopts modular design, and carved marks, due to the bottle’s diameter is different, just need to change the corresponding moulds is ok, convenient and efficient, the changing time (all the part) is about 30-50 minutes ( according to the proficiency level)

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 2



1. The capping part consists of capping head, bottle driving plate, cap pipe insert fixed orientation part and bottle guard plate; according to the characteristics of the user’s packaging material, choose using suitable capping head

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 3

Cap detecting sensor

When the cap is full, the cap sorter will stop feeding cap automatically, and when the cap is lack, the cap sorter will start feeding cap automatically

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 4



Pump cap/ Trigger cap dip tube centering device

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 5





Touch screen:

The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 6



Suitable bottles and caps

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 7

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 8



Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 9

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 10

6000BPH PLC Controlled Rotary Capping Machines 8 10 12 Heads 11



The goods are all loaded at TOM factory by TOM's logistic department.
