Product Details
Place of Origin: Changzhou, Changzhou
Brand Name: TOM
Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO
Model Number: FXX-4C/6C/8C
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery
Delivery Time: 30 working days for single machine
Payment Terms: T/T
Supply Ability: 30 sets per month
Material: |
Stainless Steel 304 |
Capping Speed: |
4000BPH |
Capping Error: |
<0.2% |
PLC Control: |
Yes |
Changeover Time: |
Within 30 Minute |
Material: |
Stainless Steel 304 |
Capping Speed: |
4000BPH |
Capping Error: |
<0.2% |
PLC Control: |
Yes |
Changeover Time: |
Within 30 Minute |

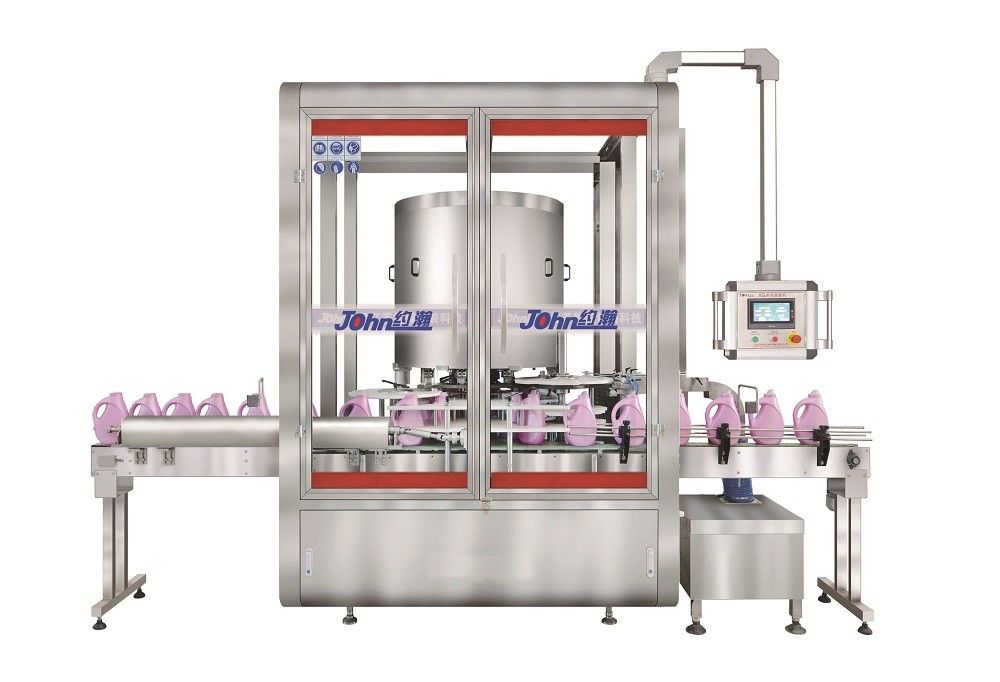

Atutomatic PLC Controll High Speed Laundry Detergent Capping Machine 4/6/8 Capping Heads
Major characteristics:
This machine is a new generation rotary capping machine developed on the basis of the working principle and operation mode of the company's French serae machine combined with the specific conditions of China's packaging equipment. Its performance and capping pass rate are currently the most advanced models in China. Among them, the function of capping and loose claws can be comparable to similar products in Europe and America. Many manufacturers in the market that do not have R&D experience are mapping our company's products, and their stability is worrying.
Technical Parameter:
| No. | Item | Performance |
|
01 |
Machine overall imension(L×W×H) | 2400mm×1700mm×240mm |
|
02 |
No. of capping heads | 4/6/8 heads |
|
03 |
Machine weight | About 1500kg |
|
04 |
Suitable bottle mouth | ≥φ20mm (may customized) |
|
05 |
Suitable bottle volume | 1L-5L |
|
06 |
Power supply | AC380V;50HZ |
|
07 |
Power | 4.5/6.5kw |
|
08 |
Air source / air consumption | 0.6MPa clean and stable compressed air; 300L/min |
|
09 |
Production capacity | 40/60/80 bottles/minute |
|
10 |
Capper conveyor height | 950mm±50mm |
Machine details:
1. Bottle inlet by screw, stable and anti-shake, stable into the bottle, automatic alarm when bottle lacking
Each capping head is equipped with a clutch device, and the cap is elastically adjustable. When the cap is tightened, the clutch is disengaged, thereby avoiding the injury of the cap and prolonging the service life of the capping head; grasping the outer cap and rotating the outer cap, stable performance
The equipment is equipped with oil pressure distributor and automatic oil pipeline to ensure the lubrication effect of moving parts of the equipment and improve the life cycle of the equipment.
The capping device adopts the principle of centrifugal movement to make the cap inside enter the track and perform the front and back cap treatment. The photoelectric detect and the compressed air blow, makes the back cap return into the cap sorter bowl, and the positive cap enters the cap chute, cap sorting speed can be adjusted by frequency conversion.
Touch screen:
The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.
Applicable products:
Packaging & Shipping
1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.
The goods are all loaded at TOM factory by TOM's logistic department.
