800BPH Automatic Capper Machine Single Head Linear 20L

Product Details

Place of Origin: Changzhou, Changzhou

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: FZX-1T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 30 working days for single machine

Payment Terms: T/T

Supply Ability: 20 sets per month

Get Best Price
Highlight:

800BPH automatic capper machine

,

automatic capper machine Single Head

,

20L automatic capping equipment

Material:
Stainless Steel 304
Capping Speed:
800BPH
Capping Error:
<0.2%
PLC Control:
Yes
Changeover Time:
Within 30 Minute
Material:
Stainless Steel 304
Capping Speed:
800BPH
Capping Error:
<0.2%
PLC Control:
Yes
Changeover Time:
Within 30 Minute

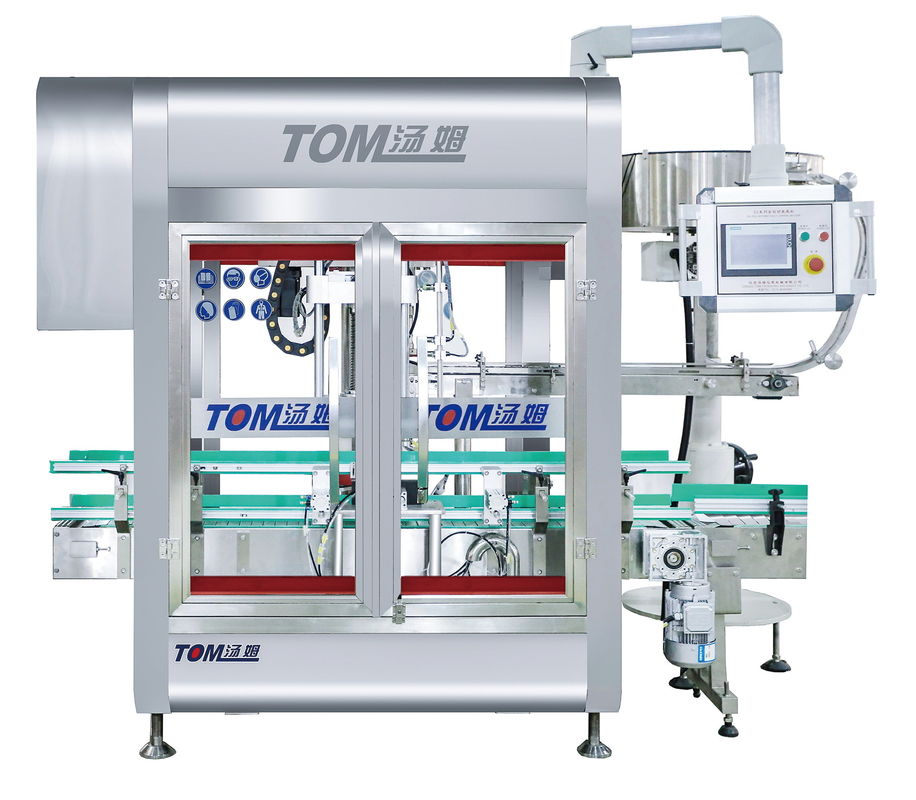

800BPH Automatic Capper Machine Single Head Linear 20L

800BPH Single Head Linear PLC Controlled Fully Automatic Capping Machine For 20L Container

800BPH Automatic Capper Machine Single Head Linear 20L 0



Major characteristics:

This machine can finish a series of operations such as bottle-feeling cap-feeding , cap-unscrambling and bottle-outleting . We adopt international advanced modular design concept ,including molds cap-sending , cap-grasping by positioning servo-controlled torque . Non-injury of bottle and caps , high efficiency . No caps , no operating . At the same time , this machine can remove the damaged bottles and non-foiling bottles . It uses advance control technology,touch screen , programmable controllers , servo motor combination , product upgrade quickly . About conditioning , just input the arming angle in the touch screen . Then through the screw lifting mechanism to lift the whole place to complete the specifications . It greatly improves production efficiency and friendlier human-machine combination



Technical Parameter:

No. Items Performance
01 Power supply AC 380V; 50Hz (may customized)
02 Power 2.5 Kw
03 Suitable bottles 5kg-30kg
04 Production Capacity ≦800 containers/hour
05 Number of capping head 1
06 Pneumatic (air-operated) source 0.5-0.6Mpa clean and stable compressed air
07 machine weight 580kg
08 machine dimension (L×W×H) 3000×1300×2200mm



Machine details:

This machine includes bottle inlet part, cap feeding part, cap screwing part and bottle outlet part

800BPH Automatic Capper Machine Single Head Linear 20L 1



The pass rate of the screw cap is close to 100%, the torque is adjustable, convenient and fast, and the stability is good. High pass rate:

Good versatility: Adopts correct capping type, suitable to the anti-theft cap and strew caps.

800BPH Automatic Capper Machine Single Head Linear 20L 2



Automatic cap feeding and cap screwing; Button start;

800BPH Automatic Capper Machine Single Head Linear 20L 3

Tool-free quick disconnect for capping heads

800BPH Automatic Capper Machine Single Head Linear 20L 4





Simple structure and easy to maintain

800BPH Automatic Capper Machine Single Head Linear 20L 5



The cap sorter:

The cap sorter can incessantly feed caps to capping machine, match to automatic capping machine.

800BPH Automatic Capper Machine Single Head Linear 20L 6



Protection door:

All doors on the machine are equipped with safety door switches and full range of interlock control. If any door is opened, the machine cannot start or stop automatically

800BPH Automatic Capper Machine Single Head Linear 20L 7



Touch screen:

The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.

800BPH Automatic Capper Machine Single Head Linear 20L 8



Cable trays:

Simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

800BPH Automatic Capper Machine Single Head Linear 20L 9



Suitable for contain pictures:

800BPH Automatic Capper Machine Single Head Linear 20L 10





Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

800BPH Automatic Capper Machine Single Head Linear 20L 11

800BPH Automatic Capper Machine Single Head Linear 20L 12

800BPH Automatic Capper Machine Single Head Linear 20L 13



The goods are all loaded at TOM factory by TOM's logistic department.

800BPH Automatic Capper Machine Single Head Linear 20L 14

800BPH Automatic Capper Machine Single Head Linear 20L 15

800BPH Automatic Capper Machine Single Head Linear 20L 16
