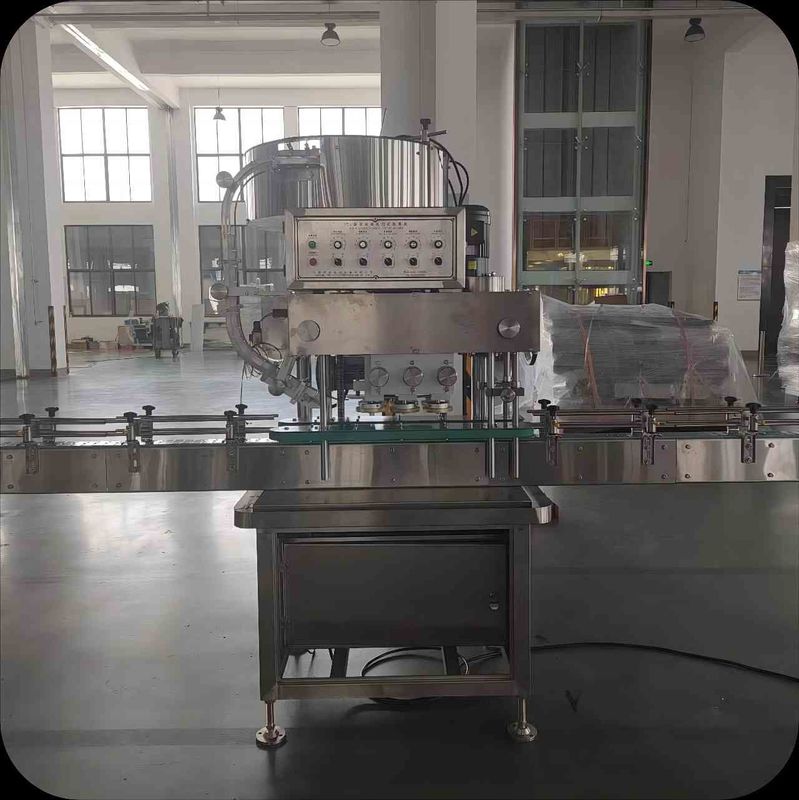

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Model Number: FXZ-A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 20 Working Days

Payment Terms: L/C, T/T

Supply Ability: 30 sets per month

Get Best Price
Highlight:

Linear Automatic Capping Machine

,

Automatic Capping Machine 5L

,

100ml automatic screw capping machine

Automatic Grade:
Automatic
Type:
Capping Machine
Warranty:
1 Year
Capping Speed:
5000 Caps/Hour
Voltage:
220/380V
Suitable Bottle:
1-5L/100ml-5L
Condition:
New
Suitable Cap:
Round Plastic Cap
Automatic Grade:
Automatic
Type:
Capping Machine
Warranty:
1 Year
Capping Speed:
5000 Caps/Hour
Voltage:
220/380V
Suitable Bottle:
1-5L/100ml-5L
Condition:
New
Suitable Cap:
Round Plastic Cap
Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour

Automatic Capping Machine

FXZ-A Automatic Linear Capping Machine For Plastic Caps

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 0

This machine applies and torques caps onto containers. It’s suitable for various material and figure Containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different figure bottles and caps for tightening, we don't need instead any components. we just adjust the position of several components. No caps down when no bottle in the seat.
Sorter Selections machine, conveyor machine, cap tightening machine, bottle clamping strap can be conversion adjusted to meet the tightening requirements for various bottles and caps. The machine good type stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)



Major Parameters:



NO. Name Parameter
1 Main machine size(L×W×H) 2heads:2000mm×850mm×2000mm
2 Machine weight About 650kg
3 Suitable cap

Ф20mm-Ф50mm

4 Equipped power supply AC380V;50HZ
5 Power 2.2kw
6 Equipped with air source/consumption 0.6MPa clean and dry air source; 200L/min
7 Capacity 5000 bottles/hour



Detailed Introduce:

Controlled part:                                                                      Capping part:

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 1Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 2

The cap sorter adopts the principle of centrifugal movement to make the cap inside the cap sorter enter the track and do positive and negative cap treatment. Through photoelectric detection and compressed air blowing, the reverse cap will fall back into the cap sorter, and the positive cap will enter the cap falling groove. Its speed can be adjusted by frequency conversion.

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 3



Applicable bottle type:

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 4



Packaging & shipping:

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 5



Company Overview--Jiangsu Tom Group

Linear Automatic Capping Machine 1-5L 100ml-5L 5000 Caps / Hour 6

Tom "The Little White House"

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
