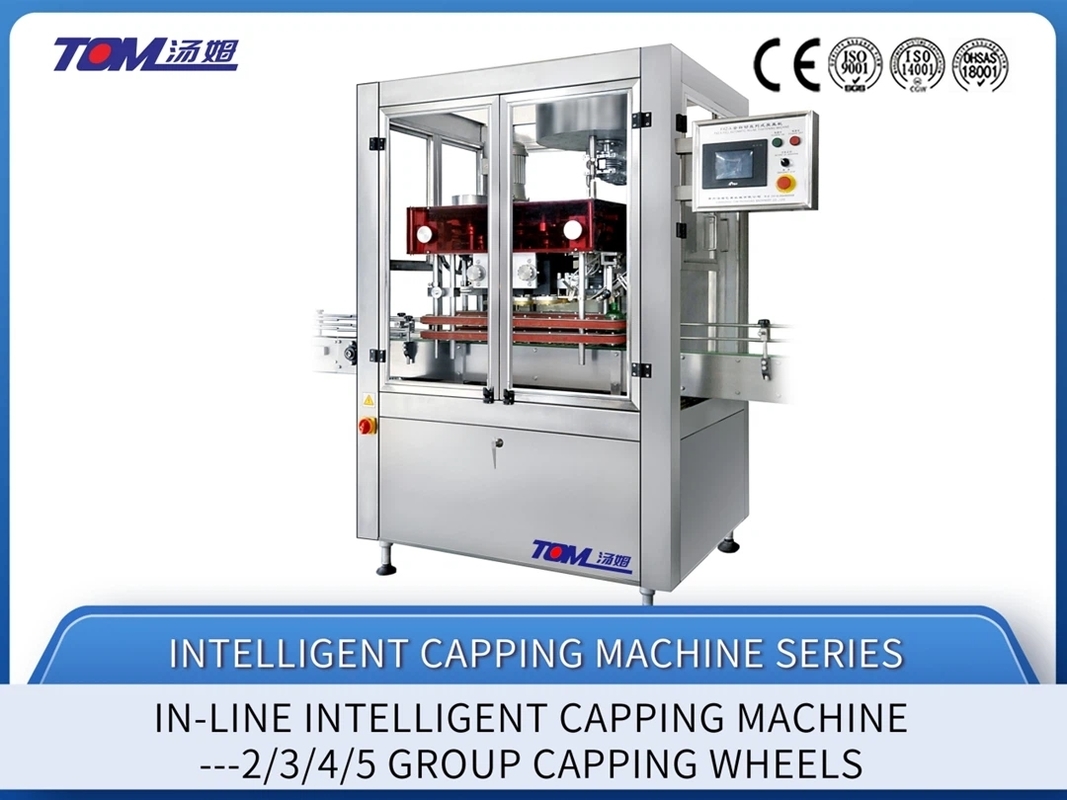

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: FXZ-A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 sets per month

Get Best Price
Highlight:

Linear automatic bottle capping machine

,

automatic bottle capping machine 6000BPH

,

Stainless Steel linear bottle capping machine

Material:
Stainless Stell 304
Capping Type:
Linear Type
Speed:
6000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap
Model:
FXZ-A
Cap Sortor:
Include
Material:
Stainless Stell 304
Capping Type:
Linear Type
Speed:
6000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap
Model:
FXZ-A
Cap Sortor:
Include
Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel
FXZ-A Fully Automatic Stinless Steel PLC Controlled Linear Capping Machine for bottle

Major characteristics

This machine applies and torques caps onto containers. It’s suitable for various material and figure Containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different figure bottles and caps for tightening, we don't need instead any components. we just adjust the position of several components. No caps down when no bottle in the seat.
conveyor machine, cap tightening machine, bottle clamping strap can be conversion adjusted to meet the tightening requirements for various bottles and caps. The machine good type stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)

Technical Parameter:

No. Items Performance
01 Power supply AC220V/380V; 50/60 Hz (may customized)
02 Power 2.2 Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04

Container mouth Size Range

Diameter: Ф40mm-Ф100mm

05

Suitble Cap size range

Diameter: Ф20mm-Ф50mm

06 Production capacity 6000 bottles/hour
07 Machine weight about 650Kg
08 Machine dimension (L×W×H)

2000mm×850mm×2050mm

09 Packaging percent of pass ≥99.9% (Bottle center deviation < 1 mm, bottle month height deviation < 1 mm)
10 Height of touch screen from ground 1300mm≤H≤1400mm
11 Bottle inlet direction From left to right
12 capping type linear capping



Machine Photo

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 0



Capping part

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 1Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 2

Capping driving part                                                            Simple and convenient capping adjust part

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 3

Add stable clipping device in order to bottle axis broken when not adjust well



Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 4

Detection system (if no foil, no cap, have slanting cap will automatic reject)

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 5

Cap sorter:

Cap sorter is adjustable in frequency, adopts Japanese PLC, leuze photoelectric infrared sensor intelligent detection positive and negative cap, Taiwan Airtac solenoid valve performs elimination action, making it the best for this effect, effectively solving the large noise, large gas consumption, The problem of low pass rate, convenient and quick adjustment

Linear Automatic Bottle Capping Machine 6000BPH Stainless Steel 6
