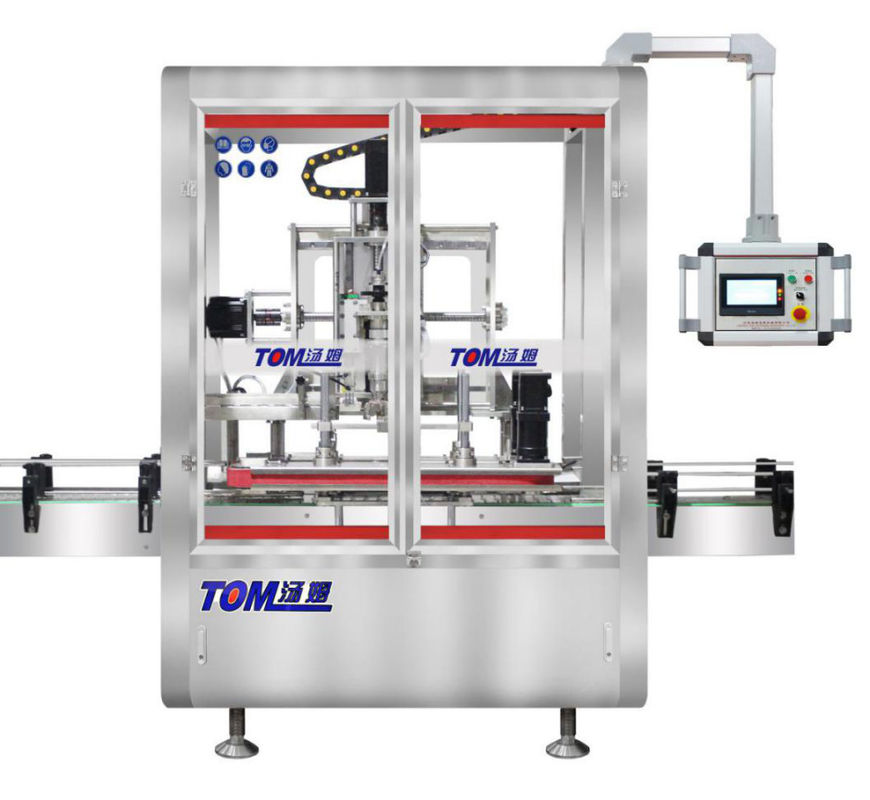

Single Head Bottle Automatic Capping Machine 1500-2000BPH

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: FGX-1G

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 25 sets per month

Get Best Price
Highlight:

Single Head Automatic Capping Machine

,

Automatic Capping Machine 1500BPH

,

2000BPH single head capping machine

Material:
Stainless Stell 304
Capping Type:
Tracking Type
Speed:
1500-2000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap Or Pressing Cap
Model:
FGX-1G
Capping Head:
1
Material:
Stainless Stell 304
Capping Type:
Tracking Type
Speed:
1500-2000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap Or Pressing Cap
Model:
FGX-1G
Capping Head:
1
Single Head Bottle Automatic Capping Machine 1500-2000BPH
FGX-1G Fully Automatic Stinless Steel Single Head Tracking PLC Controlled Capping Machine for bottle

Major characteristics

The product is the latest capping machine designed by our company. The overall performance of the product has reached the international advanced level. Some of the products have exceeded the best level of similar foreign products and have been approved by the world's giant companies. This product is a track-type capping machine, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast speed, easy to change specifications, all parts are use high-quality stainless steel, is the ideal packaging equipment for various industries. PLC has a memory function, and can simultaneously memorize the combination of five doses and operating parameters, mechanical structure is simple, large space, greatly facilitate the replacement of the specifications of the adjustment



Working principle:

(1)This capping machine adopts rotary type for screwing or pressing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing

Capping work, finally capper bottles are outlet by conveyor.

(2) Bottle inlet can cap inlet are controlled synchronously

(3) Reversed caps can be ejected. (Optional function)

(4) If bottle size different, no need change mould.



Technical Parameter:

No. Items Performance
01 Power supply AC220V/380V; 50/60 Hz (may customized)
02 Power 4.5 Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Container spec. L: Φ100mm-Φ250mm; W:100mm-250mm
height: 10mm~35mm; diameter: Φ18mm~Φ80mm
05 Number of capping head 1
06 Production capacity 2000 bottles/hour
07 Machine weight about 1100Kg
08 Machine dimension (L×W×H) 2000mm*1200mm*2000mm
09 Packaging percent of pass ≥99.9% (Bottle center deviation < 1 mm, bottle month height deviation < 1 mm)
10 Height of touch screen from ground 1300mm≤H≤1400mm
11 Bottle inlet direction From left to right
12 Single machine production efficiency ≥98%



Machine Photo

Single Head Bottle Automatic Capping Machine 1500-2000BPH 0



Capping part

Single Head Bottle Automatic Capping Machine 1500-2000BPH 1

Single Head Bottle Automatic Capping Machine 1500-2000BPH 2

Detection system

Single Head Bottle Automatic Capping Machine 1500-2000BPH 3

Main lifting part:

The machine main lifting parts adopts motor-type lifting adjustment, when need to replace the bottle specifications, due to the different bottle height, you only need to operate in the touch screen to achieve height adjustment, and the machine installed upper limit, lower limit photoelectric protection device to ensure that no errors occur;

Single Head Bottle Automatic Capping Machine 1500-2000BPH 4

Capping part:

The PLC controlled the rotation of the servo motor to achieve the rotary cap around the shift to produce the effect of tracking the screw cap, use servo motor control, stable operation, the translation distance accurate, fast and security.

Single Head Bottle Automatic Capping Machine 1500-2000BPH 5



Single Head Bottle Automatic Capping Machine 1500-2000BPH 6

Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;



Single Head Bottle Automatic Capping Machine 1500-2000BPH 7

An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

Single Head Bottle Automatic Capping Machine 1500-2000BPH 8
