Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: XG-6B/8B

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 25 sets per month

Get Best Price
Highlight:

Stainless Steel Automatic Capping Machine

,

Rotary Automatic Capping Machine

,

Bottle capping machinery

Material:
Stainless Stell 304
Capping Type:
Rotary
Speed:
4000-9000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap Or Pressing Cap
Model:
XG-6B/8B
Capping Head:
6/8
Material:
Stainless Stell 304
Capping Type:
Rotary
Speed:
4000-9000 Bottle Per Hour
Torque:
Can Adjust
Application:
Screw Cap Or Pressing Cap
Model:
XG-6B/8B
Capping Head:
6/8
Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle
XG-6B/8B Fully Automatic Stinless Steel Rotary PLC Controlled Capping Machine for bottle

Major characteristics

This machine integrates bottle inlet, cap sort, cap feed, capping, and bottle outlet function together.

Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running. Fast speed of machine and high qualified rate of capping, it bears step less adjusting, can reach the international advanced level of similar products.

Electric elements use international famous brand, which ensure the machine’s quality and its service lifetime, reasonable structure, superior performance, low voice, friendly environmental.



Working principle:

(1)This capping machine adopts rotary type for screwing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing

Capping work, finally capper bottles are outlet by conveyor.

(2) Bottle inlet can cap inlet are controlled synchronously

(3) Reversed caps can be ejected. (Optional function)



Technical Parameter:

No. Items Performance
01 Suitable bottles

height 60mm~280mm

diameter Φ30mm~Φ110mm(special size can design)

02 Suitable caps

height: 10mm~35mm

diameter: Φ20mm---Φ80mm (special size can design)

03 Power supply AC 380V 3phase; 50Hz
04 Power 4.0 Kw
05 NO. of Capping heads 6/8 heads
06 Production capacity 4000-9000 bottles/hour
07 Pneumatic (air-operated) source 0.6Mpa clean and stable compressed air
08 Overall dimension (L×W×H) 2000mm×1100mm×2200mm
09 Machine weight 1200 KG

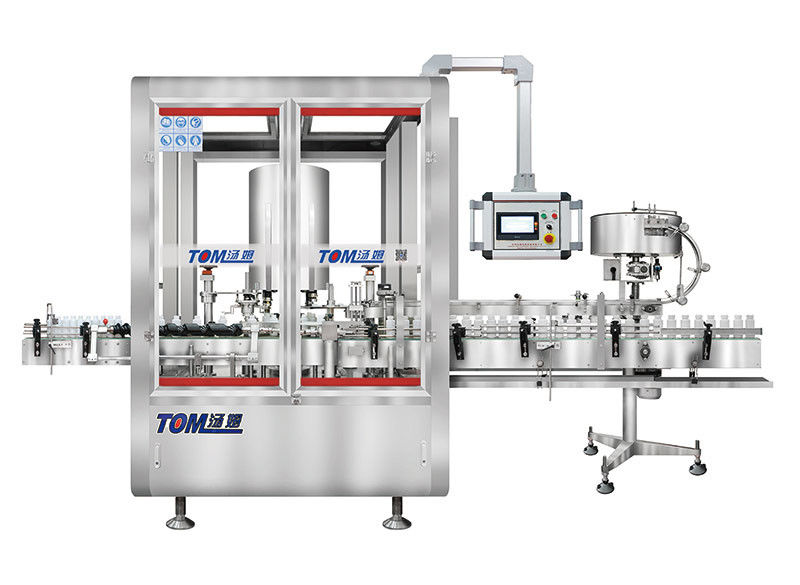

Machine Photo

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 0



Capping part

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 0

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 2

Detection system

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 3

Main lifting part:

The machine main lifting parts adopts motor-type lifting adjustment, when need to replace the bottle specifications, due to the different bottle height, you only need to operate in the touch screen to achieve height adjustment, and the machine installed upper limit, lower limit photoelectric protection device to ensure that no errors occur;

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 4

Capping part:

In capping part, each capping head has the function of torque force effect control system, through this device to ensure the effect of capping and to avoid injury (when the cap is screwed, capping head and clutch separately, bottle and cap relatively static, will not hurt bottle and cap).

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 5Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 6



Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;



Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 7

An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

Stainless Steel Automatic Capping Machine Rotary PLC Controlled For Bottle 8
