2000BPH Filling And Capping Machine Single Head Stainless Steel 304

2000BPH Filling And Capping Machine Single Head Stainless Steel 304

2000BPH Filling And Capping Machine Single Head Stainless Steel 304
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 2000BPH Filling And Capping Machine Single Head Stainless Steel 304 2000BPH Filling And Capping Machine Single Head Stainless Steel 304

Large Image :  2000BPH Filling And Capping Machine Single Head Stainless Steel 304 Get Best Price

Product Details:
Place of Origin: Changzhou, Changzhou
Brand Name: TOM
Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO
Model Number: FGX-1G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery
Delivery Time: 30 working days for single machine
Payment Terms: T/T
Supply Ability: 30 sets per month
Detailed Product Description
Material: Stainless Steel 304 Capping Speed: 2000BPH
Capping Error: <0.2% PLC Control: Yes
Changeover Time: Within 30 Minute
Highlight:

2000BPH filling and capping machine

,

filling and capping machine Single Head

,

ss304 capping machinery

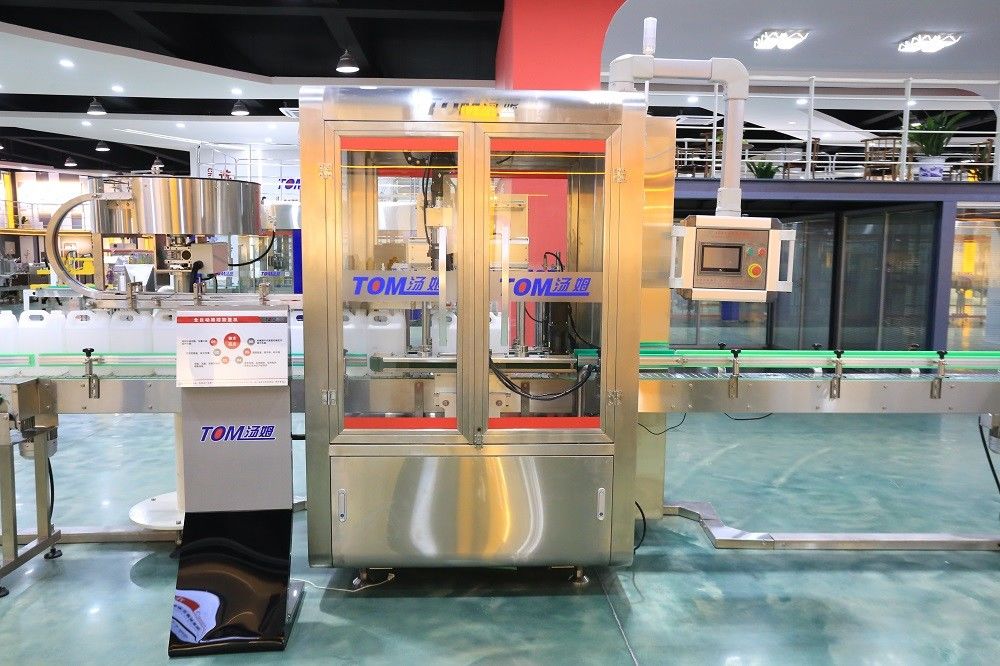

Atutomatic PLC Controlled Single Head Following Type Capping Machine
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 0
Major characteristics:
The product is the latest capping machine designed by our company. The overall performance of the product has reached the international advanced level. Some of the products have exceeded the best level of similar foreign products and have been approved by the world's giant companies. This product is a track-type capping machine, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast speed, easy to change specifications, all parts are use high-quality stainless steel, is the ideal packaging equipment for various industries. PLC has a memory function, and can simultaneously memorize the combination of five doses and operating parameters, mechanical structure is simple, large space, greatly facilitate the replacement of the specifications of the adjustment

Technical Parameter:

No.ItemsPerformance
01Power supplyAC220V/380V; 50/60 Hz (may customized)
02Power7Kw
03Air source0.55Mpa-0.6Mpa clean and stable compressed air
04Container spec.L: Φ100mm-Φ250mm; W:100mm-250mm
height: 10mm~35mm; diameter: Φ18mm~Φ80mm
05Number of capping head
06Production capacity2000 bottles/hour
07Machine weightabout 1500Kg
08Machine dimension (L×W×H)2500mm*1200mm*2000mm
09Packaging percent of pass≥99.9% (Bottle center deviation < 1 mm, bottle month height deviation < 1 mm)
10Height of touch screen from ground1300mm≤H≤1400mm
11Bottle inlet directionFrom left to right
12Single machine production efficiency≥98%

Machine details:
High-precision screw cap, precise grip, reliable screw cap, stainless steel, professional surface treatment, three claws in a triangular shape, internal wear-resistant tendon strip to prevent metal from directly contacting the lid , reduce the wear of the cap.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 1
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 2

The bottle is clamped firmly by belt during the capping process, and at the same time, it plays the Z-axis direction. The servo motor controls the bottle clamping speed and keeps pace with the capping motor, so that the gripper can precisely match the bottle mouth.

2000BPH Filling And Capping Machine Single Head Stainless Steel 304 3

2000BPH Filling And Capping Machine Single Head Stainless Steel 304 4



Adopting the imported motion module controller + motion module control follow-up capping method, the clutch is stable and the positioning accuracy is high.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 5
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 6


The equipment is equipped with oil pressure distributor and automatic oil pipeline to ensure the lubrication effect of moving parts of the equipment and improve the life cycle of the equipment.

2000BPH Filling And Capping Machine Single Head Stainless Steel 304 7

2000BPH Filling And Capping Machine Single Head Stainless Steel 304 8



The capping device adopts the principle of centrifugal movement to make the cap inside enter the track and perform the front and back cap treatment. The photoelectric detect and the compressed air blow, makes the back cap return into the cap sorter bowl, and the positive cap enters the cap chute, cap sorting speed can be adjusted by frequency conversion.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 9
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 10

The capping head is driven by the cylinder, and the torque and force control system is used to ensure the capping effect and the injury cap. The servo motor drives the screw cap and lift, the positioning is accurate, the operation is smooth, safe and efficient.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 11

Touch screen:
The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 12

Packaging & Shipping
1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 13
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 14
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 15

The goods are all loaded at TOM factory by TOM's logistic department.
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 16
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 17
2000BPH Filling And Capping Machine Single Head Stainless Steel 304 18
