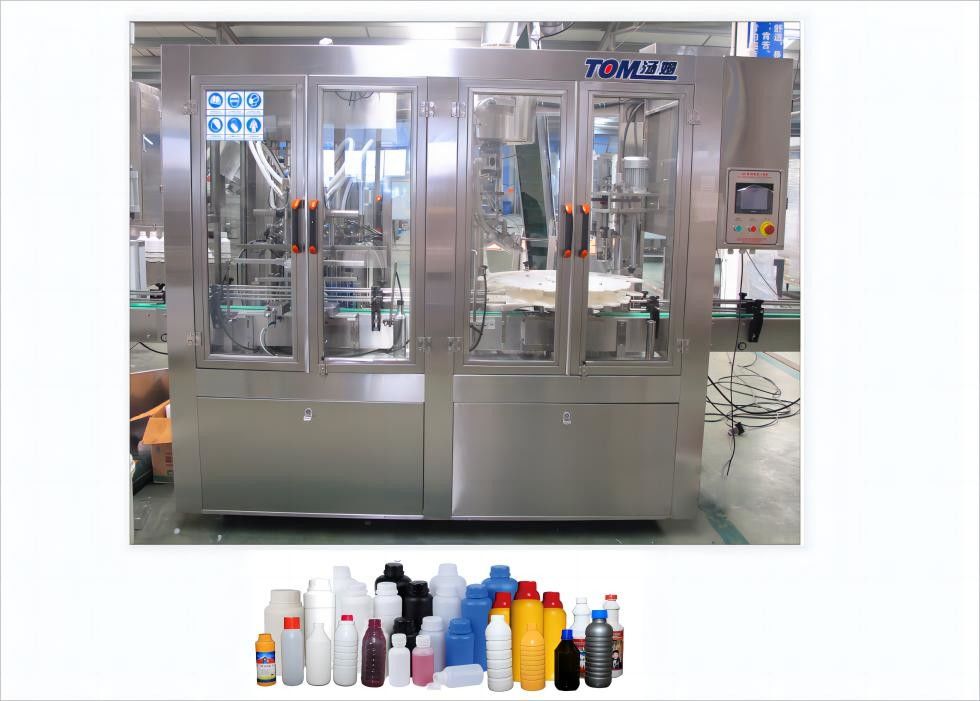

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: GXY-4-1

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 6 sets per month

Get Best Price
Highlight:

Monoblock Filler Capper Machine Piston

,

100ml Monoblock Filler Capper Machine

,

1200BPH monoblock machine

Filling Range:
100ml-1L
Warranted:
12 Months
Capacity:
1200bph
Accuracy:
+/-0.5% For 500ml
Condition:
New
Weight:
1000kg
Filling Product:
Liquid
Materials:
SUS304
Filling Range:
100ml-1L
Warranted:
12 Months
Capacity:
1200bph
Accuracy:
+/-0.5% For 500ml
Condition:
New
Weight:
1000kg
Filling Product:
Liquid
Materials:
SUS304
Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH

GXY-4-1 Fully Automatic Small Capacity Piston Filling And Capping For 100ml-1L

Major characteristics:

This machine is newly developed filling and capping machine. It is applied to many kinds and specifications filling packing equipment. Automatic controlled by PLC, touch screen controlled panel, easy operating, and convenient maintenance; it is idea equipment for low yield requirement.

The tightening system has functions of automatic caps sort-selecting, caps tightening. All the parts which contacting with the filling material are made of high quantity stainless steel, the surface has been polished, non pollution, the machine is applied to GMP standard requirement.

Technical parameters:

Power supply: AC 220V 50 Hz or according client requirements
Power 2kw
Pneumatic source 0.6MPa stable compressed air
Minimum diameter of the bottle mouth Ф40mm
Filling range 100-1000ml
Production capacity About 1000bottles/hour
Weight 650kg
Machine dimension 2000mm×1100mm×1900mm


Partial Introduce:

Filling part details:

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 0



Capping Part:

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 1

The start wheel are special designed following customer's bottle diameter which can make sure the capping stable and accuracy, won't hurt the bottle.


Safety door

All doors are equipped with photoelectric induction, emergency door opening, machine shutdown alarm to ensure personnel safety.

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 2



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 3





















Packaging & shipping:

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 4



warehouse for finished machine:

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 5



Loading picture:

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 6



Company Overview--Jiangsu Tom Group

Small Capacity Piston Monoblock Filler Capper Machine 100ml-1L 1200BPH 7

Tom "The Little White House"

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
