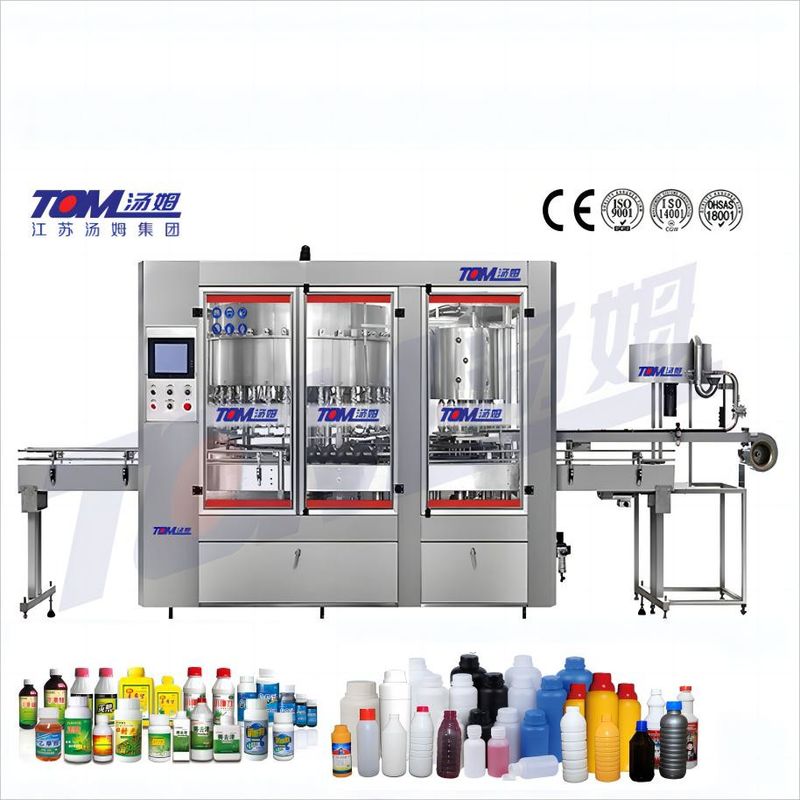

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: GXXC-24-8

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days

Payment Terms: L/C, T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

Piston monoblock filling and capping machine

,

1L monoblock filling and capping machine

,

5000BPH monoblock bottling machine

Model:
GXXC-24-8
Filling Range:
100ml-1L
Filling Head:
24 Heads
Capping Head:
8 Heads
Warranted:
One Year
Capacity:
5000bph
Accuracy:
+/-0.5% For 500ml
Materials:
SUS304
Model:
GXXC-24-8
Filling Range:
100ml-1L
Filling Head:
24 Heads
Capping Head:
8 Heads
Warranted:
One Year
Capacity:
5000bph
Accuracy:
+/-0.5% For 500ml
Materials:
SUS304
100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH

GXXC-24-8 Fully Automatic Piston Filling and Capping for 100ml-1L

Major characteristics:

1. This machine is newly developed filling and capping machine, with strong automation and large capacity. It is automatic controlled by PLC, touch screen controlled panel. It is an ideal integrate of mechanical, electrical, light, gas. The machine has exceeded the top level of the similar type machine.
2. This machine is integration of mechanics and electrics, filling specifications can easily be changed by altering parameter on touch screen control panel. Filling volume of each packing specifications, so that it can save the second adjustment.
3. During the machine cycle, the key parts are protected by integration of mechanics and electrics. If there is anything abnormal, it will automatically stop and alarm, then the touch screen will hint the abnormal part where it is.
4. Based on design if water-proof and pneumatic, so there is no pollution.


 Technical parameters:

Dimension

3500mm×2500mm×2300mm

Filling Head 24
Capping Head 8
Suitable bottle diameter Φ60mm-Φ145mm(can customize)
Height 80mm-380mm(can customize)
Packing specification 100ML-1000ML
Speed 5000BPH( for 500ml)
Filling error 100g<±0.5g
Pneumatic air source 0.65MPa clean and stable air source
Power supply AC380V 50HZ
Power 7.5 kw


Partial Introduce:
bottle delivery and operation
A;it use of one modular design,bottle-in use screw and photoelectric sensor protection design, if blocking the bottle phenomenon happened, photoelectric sensor start, host machine alarm and shutdown, man-machine interface feedback;
B; bottle-in - filling - transition - capping - bottle-out, are modular design, easy to replace;
C;mold with ABS oil nylon material, effectively prevent the bottle damage.
Filling part
100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 0
A:it adopts piston filling;
B:body clamp fast structure, the overall disassembly and replacement parts more convenient.
Cap supplier part
100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 1
A; cap sorter use photoelectric sorting method to ensure that no anti-cap, no clogging.
B; in the conveyor track set up after the photoelectric detection device to ensure smooth operation.


Safety door

All doors are equipped with photoelectric induction, emergency door opening, machine shutdown alarm to ensure personnel safety.

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 2



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 3





















Packaging & shipping:

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 4



warehouse for finished machine:

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 5



Loading picture:

100ml-1L Piston Monoblock Filling And Capping Machine 5000BPH 6
