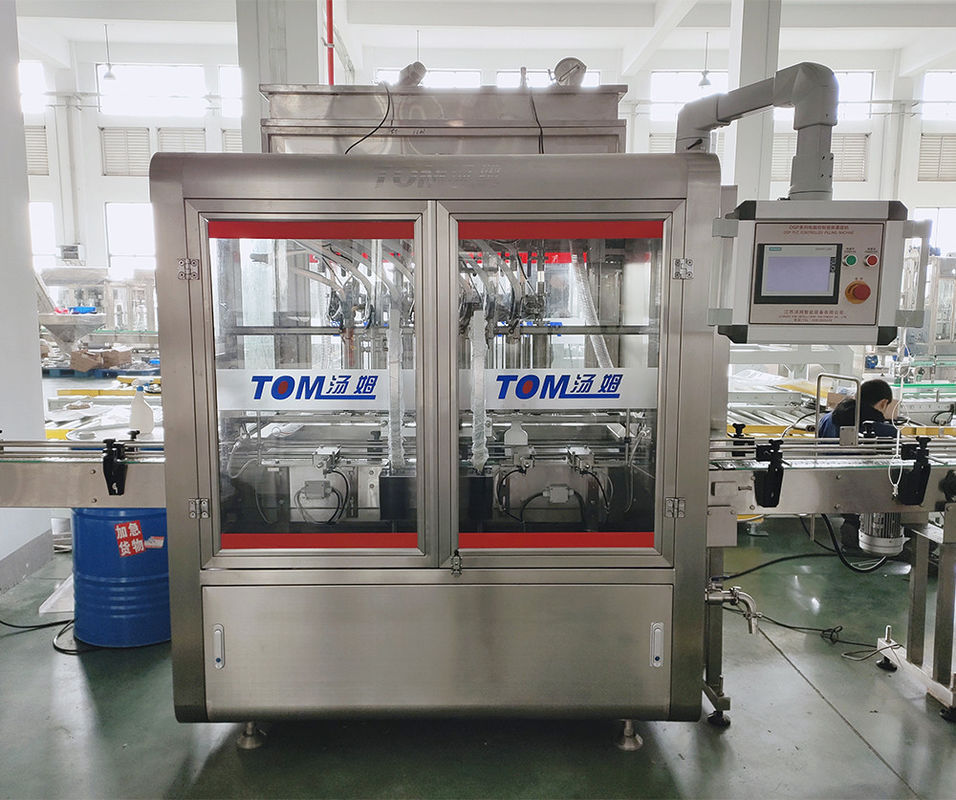

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol
100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol
video play

Large Image :  100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol Get Best Price

Product Details:
Place of Origin: Changzhou, China
Brand Name: TOM
Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO
Model Number: GZH-8DA1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery
Delivery Time: 30 WORKING DAYS
Payment Terms: T/T
Supply Ability: 25SETS/MONTHLY
Detailed Product Description
Material: SS304 Or SS316L Pneumatic Element: Airtac
Electronic Element: Siemens, Schneider Or Panasonic Filling Tank: Including
Liquid Level Sensor: Including Cleaning Function: Including

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 0

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 1

Major characteristics:

This is linear piston filling machine, especially designed for high viscous, low viscous and non-viscous products. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of all filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. Various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

5. The material which contacts liquid will be made of SS316L.

6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.



Technical parameters

No. Items Performance
01 Power supply AC220V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Round bottle Height: 100-320mm; diameter:Ф100-Ф180mm
05 Flat bottle Length:100-200mm; Width:40-80mm; Hieght:100-320mm
06 Bottle neck (minimum) Ф40mm (may customized)
07 Filling product High viscous, low viscous and non-viscous products
08 Filling range 100ml-1L
09 Filling error ≦±2g for 1L
10 Number of filling nozzles 6/8/10/12/16/20 filling heads
11 Production capacity 1800/2400/3000/3600/4800/5500 bottles/hour
12 Machine weight about 1500Kg
13 Machine dimension (L×W×H) 2400mm×1500mm×2200mm



Machine details:

Filling nozzle:

The filling nozzle is extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 2

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 3





The position of adjustment are all carved scale or equipped with digital display, easy to adjust; and specification adjustment can be achieved without tool;

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 4

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 5



Part of filling hopper:

(1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.

(2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.

(3) Designing and production meet GMP. Easily dismantle, clean and maintain.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 6



Piston fall off piston cylinder

For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 7



Conveyor and drip gutter: the conveyors before filling and after filling equipped with drip gutter also, to prevent liquid drop on ground and pollution workshop.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 8



Application products:

This filling machine is good work for Ethyl Alcohol

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 9



Protection door: All doors on the machine are equipped with safety door switches and full range of interlock control. If any door is opened, the machine cannot start or stop automatically.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 10



Touch screen: The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 11



Cable trays: simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 12



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

100ml-1L 8 Nozzles Automatic PLC Controlled Chemical Packaging Machine For Ethyl Alcohol 13



Tom's logistic department will load the goods into container direclty in Tom factory
