100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach

Product Details

Place of Origin: Changzhou, Changzhou

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GZZ-16DA1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 30 working days for single machine

Payment Terms: T/T

Supply Ability: 20 sets per month

Get Best Price
Highlight:
Material:
POM
Filling Speed:
2400BPH For 1L
Filling Accuracy:
1%
PLC Control:
Yes
Anti-drip Function:
Yes
Cleaning Function:
Yes
Filling Liquid:
Corrosive Liquid
Material:
POM
Filling Speed:
2400BPH For 1L
Filling Accuracy:
1%
PLC Control:
Yes
Anti-drip Function:
Yes
Cleaning Function:
Yes
Filling Liquid:
Corrosive Liquid

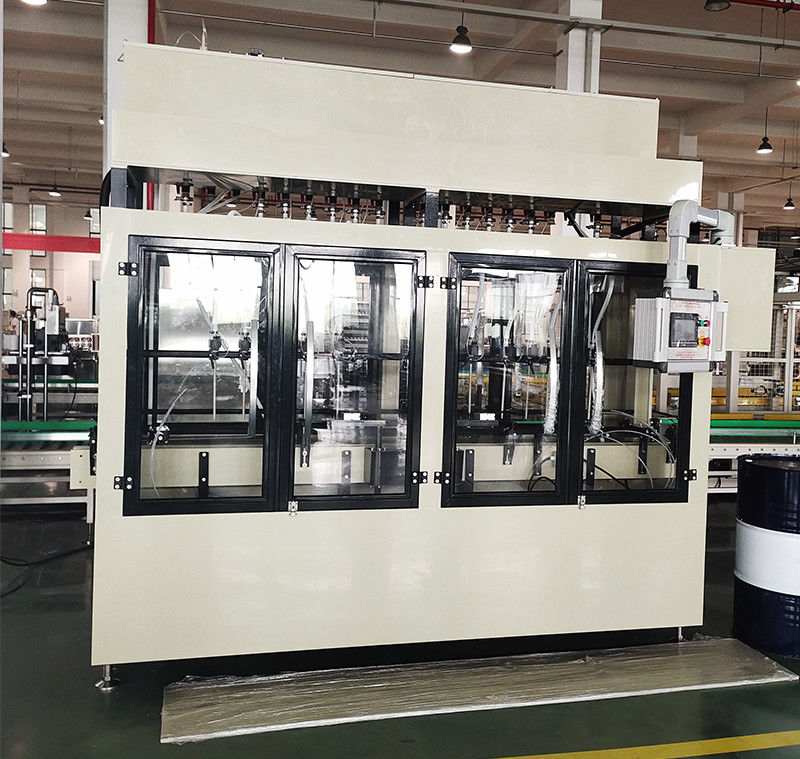

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach

100ml-1L 16 Nozzles Gravity Fully Automatic Chemical Filling Machine For Bleach

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 0

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 1



Major characteristics:

This machine is specially designed for high corrosive material, such as strong acid and alkali, hydrochloric acid products and bleach etc..

The welded part of main machine is made from polypropylene (non metal material), filling valve adopts imported plastic spherical valve which is anti-corrosive with a long service life.

1. This machine is linear gravity filling machine (time* rate of flow), automatically controlled by PLC and touch screen, with the advantages of advanced structure, stable working, low noise, widely adjusting range, fast filling speed; applicable to water aqua, emulsion, and some other no viscous material ‘s qualitative filling; automatically complete bottle inletting, qualitative filling, and bottle outlet.

2. This machine adopts PLC control system, operated by touch screen, easy operating, high produce efficiency, widely using range.

3. This machine is able to memory multiple sets of specification parameters with a high level automation, simplify the changings for different bottles, all the dosage adjustment can be achieved by touch screen, reliable working. With touch screen technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. Perfectly performed the mechanical and electrical integration technology



Technical Parameter:

No. Items Performance
01 Machine dimension (L×WxH) 3000mm×1100mm×2600mm
02 Number of filling heads 16
03 Suitable bottle size
Diameter Can be customized
Height Can be customized
04 Power 2.5Kw
05 Power supply 220V±10% (can be customized)
06 Pneumatic (air-operated) source 0.6Mpa clean and stable compressed air
07 Production capacity 2400bottles/hour for 1L
08 Filling range 100ml-1L
09 Weight About 1200 Kg





Machine details:

The filling hopper welded to the main machine is made from16mm non-metal polypropylene.

The welded part of main machine is made from polypropylene, inserted metal frame, strong and compact structure, acid-proof and alkali-proof.



The filling nozzle is made of titanium alloy which is anti-corrosive.

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 2



The drip gutter, bottle neck clamp, railway guard etc. are all made from stainless steel which plated anti-corrosive Teflon

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 3

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 4



The conveyor and chain plates are all use plastic material

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 5

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 6



Applicable products such as bleach, toilet cleaning liquid, disinfector and some other corrosive liquid.

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 7



Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 8

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 9

100ml-1L 16 Nozzles Fully Automatic PLC controlled Chemical Filling Machine For bleach 10



The goods are loaded by TOM's logistic department in TOM factory, because TOM is professional on it.
