High Speed Automatic Rotary Plastic Glass Bottle Feeding Table

Product Details

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: JP-J

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 20 working days for single machine

Payment Terms: T/T

Get Best Price
Highlight:

Glass bottle feeding table

,

Plastic bottle feeding table

,

High Speed feeding table

Place Of Origin:
China (Mainland)
Material:
Stainless Steel 304
Feeding Speed:
60-120bottles/minute
Motor:
Frequency Motor
Table Diameter:
1000mm Or 1200mm
Delivery Port:
Shanghai, China
Standard:
Meet GMP Standard
Service:
Engineer Is Available To Install And Debug The Equipment At Customer Site.
Place Of Origin:
China (Mainland)
Material:
Stainless Steel 304
Feeding Speed:
60-120bottles/minute
Motor:
Frequency Motor
Table Diameter:
1000mm Or 1200mm
Delivery Port:
Shanghai, China
Standard:
Meet GMP Standard
Service:
Engineer Is Available To Install And Debug The Equipment At Customer Site.
High Speed Automatic Rotary Plastic Glass Bottle Feeding Table

                          JP-J Bottle Feeding Table

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 0

Major characteristics:

The turn plate of this machine adopts adjustable inverter of limitless speed to rotate, making all the bottles enter into conveyor belt in order under the rotary tangential force, reduce labor, and raise production efficiency. This machine can work when the power is on, easily operating. It can be widely used for glass bottles, plastic bottles and polyester bottles for pharmaceutical, agrochemical, food, and chemical industries etc. It is an ideal equipment for small, medium and large factory.



Technical Parameter:

No Items Performance
01 Power supply AC 220V; 50Hz (may customized)
02 Power 1.5 Kw
03 Production Capacity 60-120 containers/minute
04 Diameter of turntable Φ1200mm
05 Suitable diameter of bottles : Φ40mm~Φ100mm
06

Machine weight

300kg
07

Machine dimension (L×W×H)

1700MM*1300MM*1350MM
08

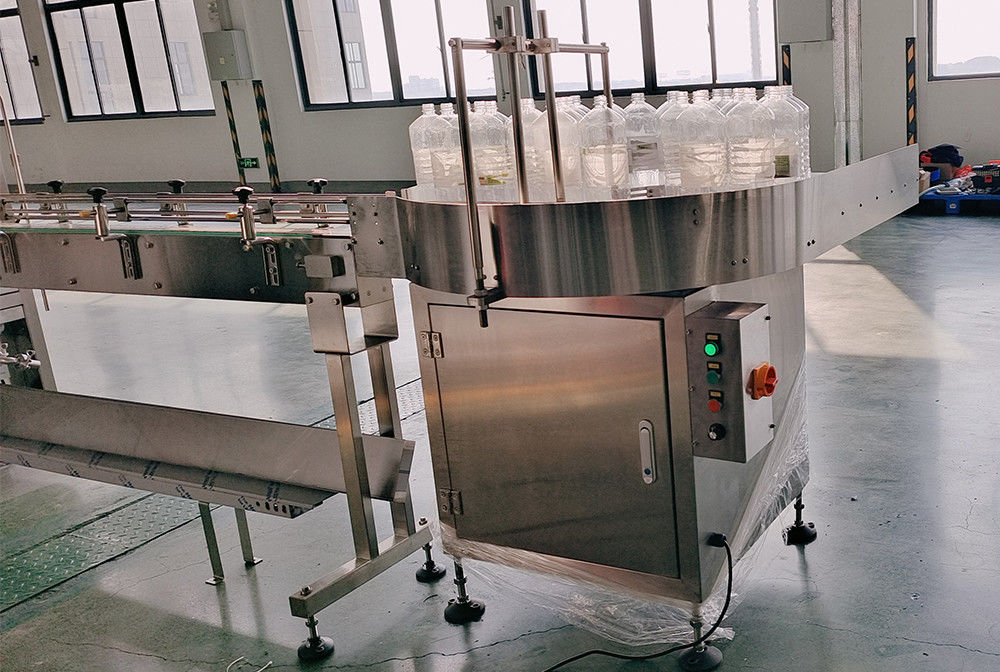

Machine picture in side

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 1



Machine picture in front

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 2



This feeding table can be customized for food industry which added dust production cover.

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 3



The dust cover can prevent the dust enter into bottle during running

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 4



Delivery: packed by wooden case and delivery to Shanghai Port, the wooden case is suitable for long-term sea delivery

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 5



Tom factory picture

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 6



Customer visiting in Tom factory

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 7



Customer visit Tom's exhibition booth

High Speed Automatic Rotary Plastic Glass Bottle Feeding Table 8
