100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 Working Days

Payment Terms: L/C, T/T

Supply Ability: 25 sets per month

Get Best Price
Highlight:

1L Pesticide Packaging Line

,

100ml Pesticide Packaging Line

,

Automatic pesticide packing machine

Automatic Grade:
Automatic
Type:
Filling Capping And Labeling
Warranty:
1 Year
Capping Speed:
5000 Caps/Hour
Voltage:
220/380V
Suitable Bottle:
100ml-1L
Condition:
New
Material:
SUS 304
Automatic Grade:
Automatic
Type:
Filling Capping And Labeling
Warranty:
1 Year
Capping Speed:
5000 Caps/Hour
Voltage:
220/380V
Suitable Bottle:
100ml-1L
Condition:
New
Material:
SUS 304
100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling

Pesticide Filling Packaging Line

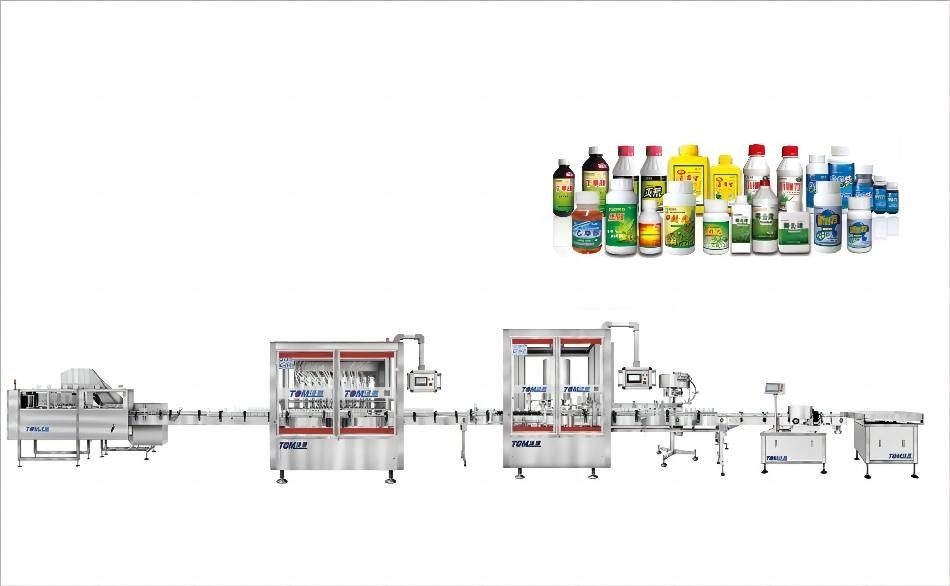

100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling 0





Main characteristics:

This Pesticide Filling Packaging Line is special designed for EC/SC/SL filling, including bottle unscrambler, filling, capping and labeling machines.



Major Parameters:



No. Items Performance
01 Power supply AC220V; 50Hz (may customized)
02 Power 9.0 Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle diameter (minimum) Ф40mm (may customized)
05 Bottle diameter Ф40mm~Ф100mm (may customized)
06 Bottle height 60mm~230mm (may customized)
07 Filling product SL/EC/SC
08 Filling range

100ml-1000ml

09 Number of filling nozzles 20
10 Number of capping heads 6
11 Production capacity 100 ml 6000 bph; 500ml 5000 bph
12 Machine weight about 3000Kg
13 Machine dimension (L×W×H) 3520mm×1400mm×2500mm





Detailed Introduce:

Filling Machine features:

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 20 filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. Various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

5. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.

100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling 1



Capping machine features:

The capping part is a following-type capping, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast speed, easy to change specifications, all parts are use high-quality stainless steel, is the ideal packaging equipment for various industries. PLC has a memory function, and can simultaneously memorize the combination of five doses and operating parameters, mechanical structure is simple, large space, greatly facilitate the replacement of the specifications of the adjustment.



Applicable bottle type:

100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling 2





Packaging & shipping:

100ml-1L Pesticide Packaging Line Automatic For Filling Capping And Labeling 3
