Product Details
Place of Origin: China
Brand Name: TOM
Certification: CE/ISO9001/CO
Model Number: TOM-Pesticide Filling
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea Worthy Packing
Delivery Time: 60 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Automatic Grade: |
Automatic |
Type: |
Pesticide Filling Packaging Line For Agrochemical Bottle |
Warranty: |
1 Year |
Capping Speed: |
1000-5000 Caps/Hour |
Voltage: |
220/380V |
Suitable Bottle: |
100ml-1L |
Condition: |
New |
Material: |
SUS 304 |
Application: |
For Round Bottle Or Square Bottle |
Automatic Grade: |
Automatic |
Type: |
Pesticide Filling Packaging Line For Agrochemical Bottle |
Warranty: |
1 Year |
Capping Speed: |
1000-5000 Caps/Hour |
Voltage: |
220/380V |
Suitable Bottle: |
100ml-1L |
Condition: |
New |
Material: |
SUS 304 |
Application: |
For Round Bottle Or Square Bottle |
Fully Automatic Pesticide Filling Packaging Line For Agrochemical Bottle
Main characteristics:

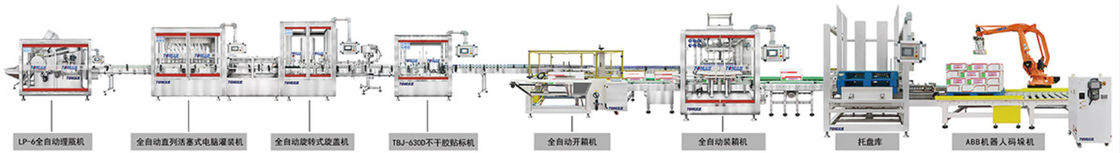

It is Pesticide Filling Packaging Line is special designed for pesticide filling, including bottle unscrambler, filling, capping, induction sealing, labeling, carton open, packing, carton sealing and robot stacking.
Major Parameters:
No. | Items | Performance |
01 | Power supply | AC220V; 50Hz (may customized) |
02 | Power | 22 Kw |
03 | Air source | 0.55Mpa-0.6Mpa clean and stable compressed air |
04 | Bottle diameter (minimum) | Ф40mm (may customized) |
05 | Bottle diameter | Ф40mm~Ф100mm (may customized) |
06 | Bottle height | 60mm~230mm (may customized) |
07 | Filling product | SL/EC/SC |
08 | Filling range |
100ml-1000ml |
09 | Number of filling nozzles | 20 |
10 | Number of capping heads | 6 |
11 | Production capacity | 100 ml 6000 bph; 500ml 5000 bph |
12 | Machine weight | about 3000Kg |
13 | Line dimension (L×W×H) | 35000mm×1400mm×2500mm |
Detailed Introduce:
Overview
Advantages of production line products:
In accordance with the basic principles of “stable, massive, intelligent, safe, environmentally friendly and humanized”, we design a first-class packaging production line for the daily chemical preparation industry.
Stabilization:
In the past 24 years since the establishment of the Tom Group, the equipment produced at the beginning of the factory has been used normally at the customer's site. At the customer's site, Tom's factory equipment has been in operation for 10 years or even more than 15 years.
Tom's R&D team is constantly improving and improving. There are dozens of technicians with 20 or 30 years of experience in the industry. The equipment installation and production site has more than ten years of experience in assembly and debugging, so that professional people can do professional things and let each one People continue to shine in the most suitable positions. assembly and technical personnel in other companies can’t work more than five years.
Massive:
When many equipment manufacturers use 1.5mm thick steel plates or thinner steel plates, Tom has been firmly using steel plates that are 50% thicker than other manufacturers, regardless of cost, only to make Tom's factory equipment have a longer use. to create greater profit margins for customers.
Packaging & shipping:
Company Information
Tom Group is a real honest entity enterprise. All stainless steel raw materials purchased are produced by the top 3 enterprises in the National Stainless Steel Industry Association, and all electrical components are imported from well-known brands. We have several advanced large-scale laser cutting machines, large-scale CNC machine tools, machining centers and other production equipment totaling 80 million yuan (about 95% of Tom Group's parts are processed and produced by ourselves)
Tom is growing fast and has large scale of production
The group covers an area of 150 acres, with a construction area of 120,558 square meters, and has more than 720 front-line production employees. We have the world's first-class technology luxury showroom and Tom's formalized conference hall that can accommodate more than 500 people.
The branch of Tom Group---“Jiangsu Thomson Intelligent Equipment Co., Ltd.” was built with huge investment and is famous in the six major development zones in Changzhou. It is highly praised by government personnel and customers, and is called “The Little White House of Jintan”/“Tom Little White House".
Tom Group has high sales and will achieve sales of 700 million yuan in 2021. The leaders are very concerned about Jiangsu Tom Group,
Premier Wen Jiabao has visited the company in person. National High-Tech Enterprise. It is an EU CE certified enterprise, an enterprise that has obtained the National Innovation Fund, a member enterprise of the World Trade Center, and has a total of 151 patents.
pesticide / veterinary medicine, fertilizer and chemical filling line - the first brand in China.
Among the top 100 companies in China's pesticide / veterinary medicine, fertilizer and chemical industry, 96 of them are Tom's loyal customers. Tom's brand ranks first in the industry with a market share of 67%. (The following are some customer logos)
