Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: FJ-210GD/300GD/350GD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 45 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

High Speed Pesticide Filling Machine

,

Rotary Pesticide Filling Machine

,

SS316L automatic powder filling and sealing machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Powder Hopper:
Including
Filling Material:
Powder And Liquid And Granule
Sealing Style:
4 Sides Sealing
Packing Style:
Horizontal Type
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Powder Hopper:
Including
Filling Material:
Powder And Liquid And Granule
Sealing Style:
4 Sides Sealing
Packing Style:
Horizontal Type
Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine

Automatic PLC Control Rotary Pesticide Power Filling And Sealing Machine With High Speed



Major characteristics:

1. Mechanical arm bag handling -printing -bag opening -filling -jolt ramming- air pressed -sealing - shaping -embossing -outputting

2. PLC and Touch screen control panels are used to control the machine automatically. It is easy to operate and no environment pollution .

3. The mainframe is adjusted by imported frequency conversion .

4. The packaging bags are good-looking, which has been printed and heat-sealed for twice .

5. The machine is designed with shaping service position ,so the mouth of the bag is smooth after sealing.

6. The part which contacts with filling materials is made of stainless steel. It is clean , anti-corrosion and stable.

7. According to the requirement of the filling materials, automatic weighing machine, screw filling machine is optional. Intelligent compound balance and other machines are optional for a filling line .

Technical parameters:

No. Item Performance
1 Machine overall dimension(LxWxH) 3000mm*2600mm*2200mm
2 Machine weight 1000KG
3 Power supply 380V; 50/60HZ
4 Power 4KW/5KW/5.5KW
5 Bag size (L*W)

210GD :100*150-210*320mm

300GD: 200*180-300*450mm

350GD: 250*230mm-350*500mm

6 Weighing range

210GD :50-500g

300GD: 500g-2000g

350GD: 1kg-5kg

7 Packing speed

210GD : 40bags/minute

300GD: 10-18bags/minute

350GD: 10-15bags/minute

6 Air source 0.6MPa clean and compressed air
7 Air consumption 40L/min
8 Suitable bag type Three sides bag, four sides bags, stand pouch bag

,

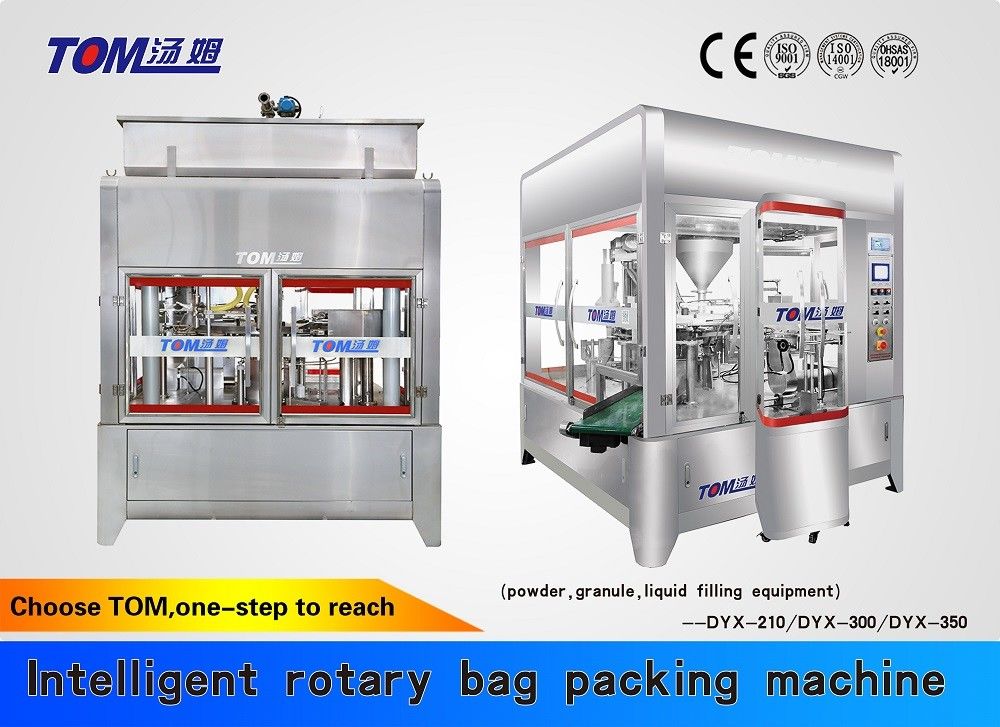

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 0

Machine details:

This machine is suitable for medium and big-sized bag packing, for filling both powder and liquid, small and simple structure, save space.

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 1



This filling part is rotary type with 8 working station, there's two filling nozzle, one filling nozzle is rough filling, the second filling is fine filling, there's weighing scale under filling station to guarantee high filling accuracy.

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 2



After filling, there's two sealing plate to seal the bag, one is hot sealing plate to seal the bag firmly, the second is cold sealing plate to make the sealing edge more beautiful

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 3



This is the bag feeding part, the people need to put the new empty bags into feeding part manually, usually it can house 200-300pcs of bags

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 4



This is the bag outlet conveyor, after filling and sealing, the bag will come out by this conveyor to enter into the next packing station

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 5



Here's the different material feeding device, dust collector and other auxiliary machines, can meet different requirements of customers

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 6

Here's the different material filling hopper and filling tank, if the filling material is powder, then machine will use screw hopper, if the filling material is liquid, then machine will use filling tank, if the filling material is granule or other bulk solid, the machine will use weighing head

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 7



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 8



Tom's logistic department will load the goods into container direclty in Tom factory

Rotary High Speed Pesticide Filling Machine Automatic Powder Filling And Sealing Machine 9
