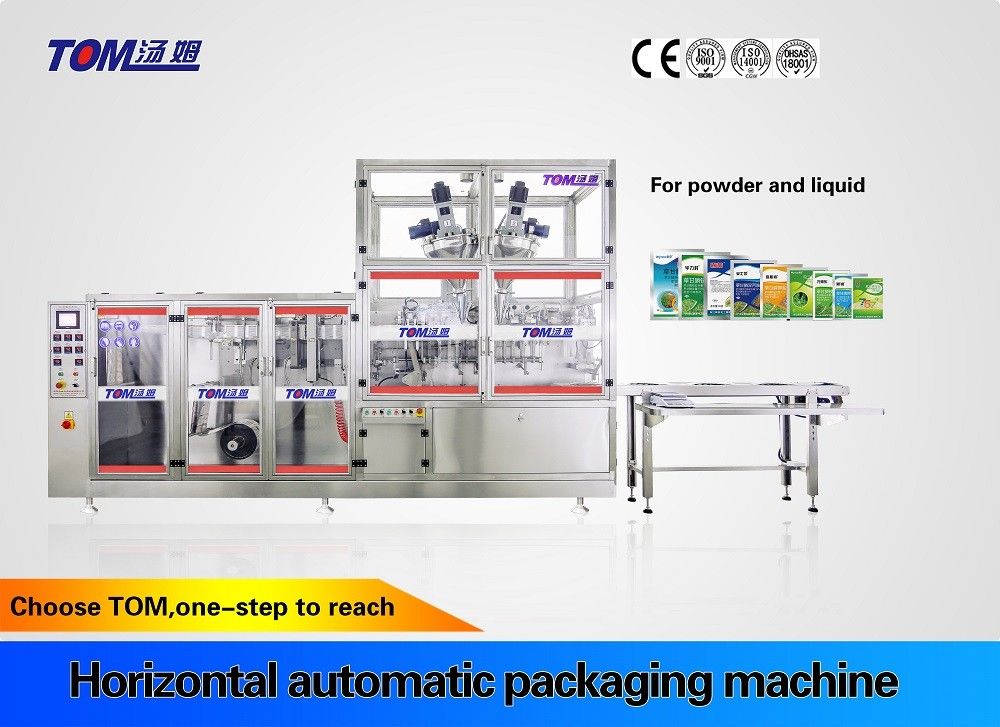

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: DJZ-180/240

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 45 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

Pesticide Filling Machine Horizontal

,

Pesticide Filling Machine Automatic

,

SS316L automatic powder filling and sealing machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Powder Hopper:
Including
Filling Material:
Powder And Liquid And Granule
Sealing Style:
4 Sides Sealing
Packing Style:
Horizontal Type
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Powder Hopper:
Including
Filling Material:
Powder And Liquid And Granule
Sealing Style:
4 Sides Sealing
Packing Style:
Horizontal Type
Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L

Automatic Servo Motor Control Horizontal Pesticide Power Filling And Sealing Machine With High Speed

Major characteristics:

1.This machine is suitable for hot sealing multi-layers compound packing material . It combines the function of bag making , bag filling , coding and sealing etc.Choose different types of packing equipment can be suitable for packing different products , such as :powder ,paste , granular , and liquid .This horizontal packing machine is special for liquid ,and high viscosity liquid ,Like SC, EC , SL , ETC, also for non-viscous paste .

2.This type machine is controlled by PLC and touch screen control panel ,which is easy operation and of high eligibility rate .

3.The control parts of this machine is controlled by the frequency conversion speeder of PLC ,It has high control ability and high automation ,No opening of bags, no filling. Photo-electricity sensor , coder ,approximate switch are all from international famous brand .

4.This machine can be applied to pack double bags , multi-position filling and anti-counterfeiting .

5.It is characterized by it’s high speed , all parts which contact with the filling material are made of stainless steel.

Technical parameters:

No. Item Performance
1 Machine overall dimension(LxWxH) 3500mm*970mm*2000mm
2 Machine weight 1080KG
3 Power supply 220V/380V 50/60HZ
4 Power 4.5KW
5 Bag size making

Single bag: Min: 180mm(w)*225mm(H); Max: 85mm(W)*110mm(H) ;

Double-chamber bag:Max: (90+90)mm (W)×160mm (H) Min:(60+60mm)(W)×70mm(H)

6 Film roll diameter Outer diameter: Φ380mm ; inner diameter : Φ70-Φ80mm
7 Packing speed 40-80 bags /minute
6 Air source 0.6MPa clean and compressed air
7 Air consumption 40L/min

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 0



Machine details:

This machine is suitable for small and medium-sized bag packing, for filling both powder and liquid, small and simple structure, save space.

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 1



The sachet is formed from film, after forming bag, then filling, after filling then sealing, after sealing then cutting, each movement is accurate, high efficiency.

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 2



The machine can work on different film material such as paper, aluminum foil, composite membrane etc..

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 3



The film rolling part, easy dismantle and fast changeover, easy operate with stable working.

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 4



Here's the mechnical driving part, each part fits well, easy to make maintain.

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 5



Here's the different material feeding device, dust collector and other auxiliary machines, can meet different requirements of customers

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 6

Here's the different material filling hopper and filling tank, if the filling material is powder, then machine will use screw hopper, if the filling material is liquid, then machine will use filling tank, if the filling material is granule or other bulk solid, the machine will use weighing head

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 7



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 8



Tom's logistic department will load the goods into container direclty in Tom factory

Servo Motor Control Horizontal Pesticide Filling Machine Automatic SS304 SS316L 9
