60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine

Product Details

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: TZB-2L-F

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 30 working days for single machine

Payment Terms: T/T

Get Best Price
Highlight:

120BPM Chemical Packaging Machine

,

60BPM Chemical Packaging Machine

,

Automatic double side sticker labeling machine

Place Of Origin:
China (Mainland)
Material:
Stainless Steel 304
Labeling Speed:
60-120bottles/minute
Motor:
Frequency Motor
Delivery Port:
Shanghai, China
Standard:
Meet GMP Standard
Service:
Engineer Is Available To Install And Debug The Equipment At Customer Site.
Place Of Origin:
China (Mainland)
Material:
Stainless Steel 304
Labeling Speed:
60-120bottles/minute
Motor:
Frequency Motor
Delivery Port:
Shanghai, China
Standard:
Meet GMP Standard
Service:
Engineer Is Available To Install And Debug The Equipment At Customer Site.
60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine

Automatic Double Sides Labeling Machine For Plastic Bottle And Glass Bottle

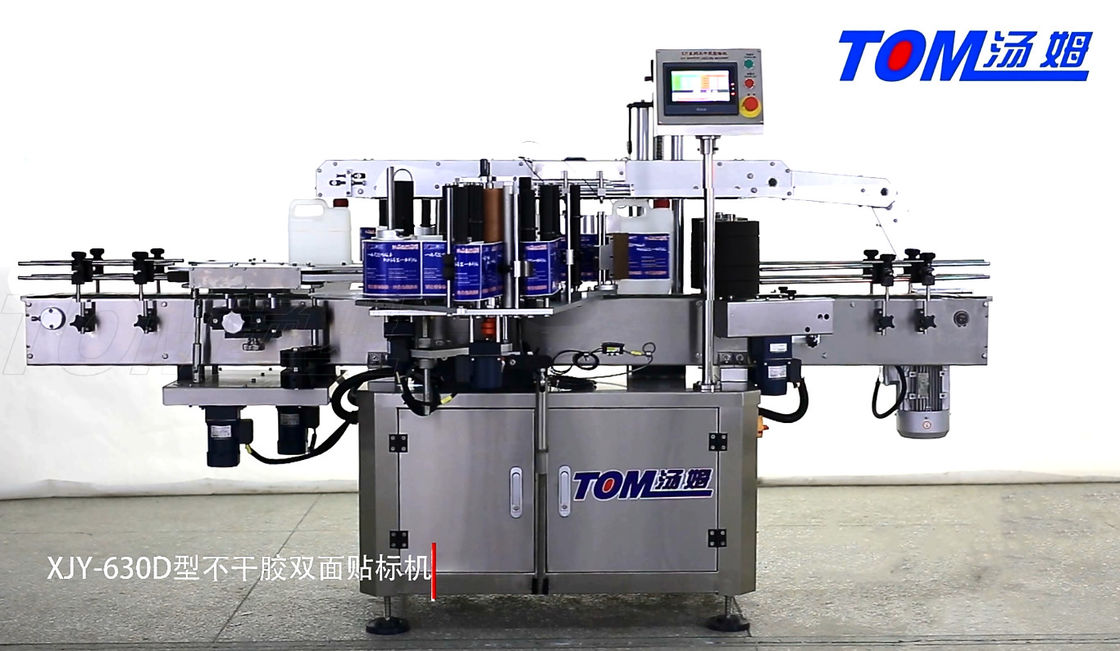

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 0



Major characteristics:

This labeling machine is suitable for foodstuff, daily chemical, pharmaceutical, pesticide and other lines. For round bottle, rectangle bottle, oval bottle with double sides labeling or single side labeling. Automatically controlled by computer (PLC), touch screen control panel, easily operation. No bottle no labeling. Meanwhile it can save ten group labeling parameters. Change different specifications of bottles for labeling fast.

It adopts servo motor to realize closed type controlling, low malfunction rate, high efficiency as well as fast speed. All parts which contact materials are made of good quality stainless steel, the surface of machine is well polished, friendly environmental, meet GMP standard.



Technical Parameter:

No. Items Performance
01 Power supply AC 220V; 50Hz
02 Power 5.0 KW
03 Labeling speed 100 bottles/minute
04 Inner diameter of paper roll Ф75mm
05 Max outer diameter of paper roll Ф350mm
06 Standard label height 0 ~ 130mm
07 Maximum label height 270mm
08 Weight 800 Kg
09 Machine dimension ( L x W x H ) 2800mm x 1500mm x 1600mm



Machine details:



Clamping type bottle separator, drived by servo moor, safe and stable, not hurt bottle

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 1



Bottle press fixing device, together with conveyor drived by same motor, to guarantee simultaneously, it fixing bottle while labeling, to ensure high labeling accuracy.

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 2

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 3



Label pressing sponge, to ensure the qualified rate of labeling

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 4

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 5



Equipped with label storage place, to prevent the label is distorted, label dispatching and back paper collecting is drived by motor to ensure smooth and accurate label sticking

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 6

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 7





With scale quick adjustment, more convenient, user-friendly. The angle of entire labeling plate can be adjusted, greatly meet the different bottle labeling requirements of customers.



60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 8

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 9



Delivery: packed by wooden case and delivery to Shanghai Port, the wooden case is suitable for long-term sea delivery

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 10



Tom factory picture

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 11



60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 12



Morocco Customer visiting in Tom factory

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 13



Russia Customer visit Tom's exhibition booth

60-120BPM Chemical Packaging Machine Automatic Double Side Sticker Labeling Machine 14
