100ml-1L Pesticide Filling Machine Semi Automatic Piston Filling Machine Two Heads

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-Z-2D

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 10 sets per month

Get Best Price
High Light:

DGP-Z-2D Pesticide Filling Machine

,

Pesticide Filling Machine 100ml

,

1L Semi Automatic Piston Filling Machine

Material:
SUS 304
Filling Volume:
100ML-1L
Filling Type:
By Volume
Model:
DGP-Z-2D
Filling Head:
2 Heads
Capacity:
About 480 Bottles/hour
Material:
SUS 304
Filling Volume:
100ML-1L
Filling Type:
By Volume
Model:
DGP-Z-2D
Filling Head:
2 Heads
Capacity:
About 480 Bottles/hour
100ml-1L Pesticide Filling Machine Semi Automatic Piston Filling Machine Two Heads

DGP-Z-2D Semi-Automatic 100ml-1L Volume Piston Filling Machine With Two Filling Heads

Major characteristics:

This product can be widely used in automatic filling of industries such as agrochemical, coating, lubricating oil, manual placing the drum in filling workstations, automatic quantitative filling (divided into coarse filling and fine filling), filling heads can be dived into bottom for filling, effectively prevent foaming, adopt PLC programming control, operate simple, convenient and easy to use. Small area, stable, reliable, high degree of automation, low labor intensity. It is an ideal packaging machine for agricultural and chemical coatings, lubricants and other industries.

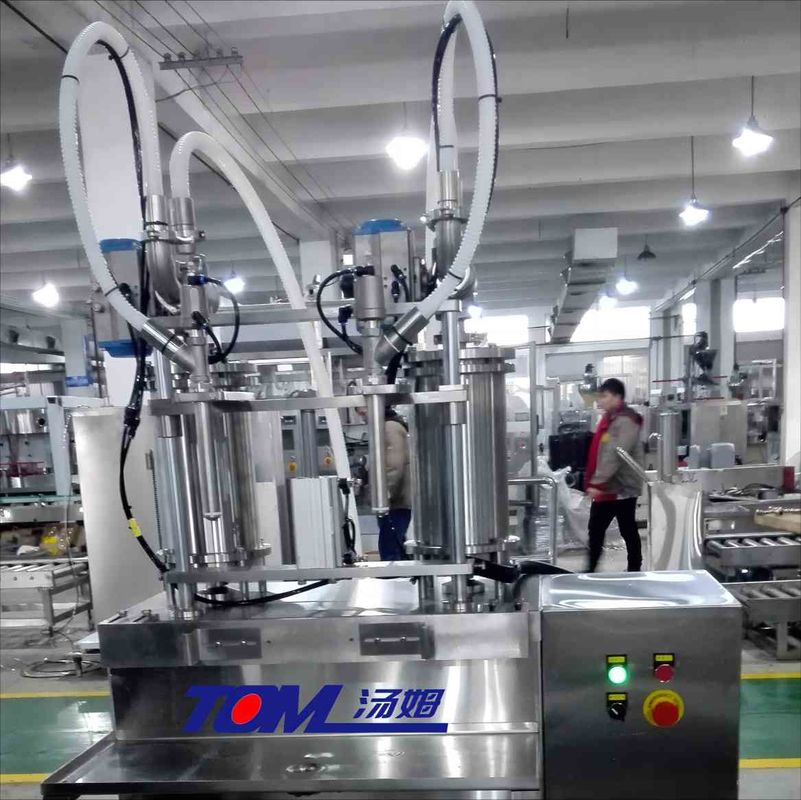

Machine's picture:

100ml-1L Pesticide Filling Machine Semi Automatic Piston Filling Machine Two Heads 0



Details of the Machine:

100ml-1L Pesticide Filling Machine Semi Automatic Piston Filling Machine Two Heads 1

Technical parameters:

Filling head 2 heads
Precision ≤±0.5%(test with water )
Capacity about 10 pcs/min
Power supply 380V;50Hz
Power 0.1kw
Machine Dimension: 900mm (L)× 650mm (W)×1500mm(H)
Machine weight About 500 kg
Filling range 100ml-1L





Packaging & shipping:

All the machines are wrapped with film, and then fixed with carbon steel , outside use plywood case packed which totally suitable long distance sea shipping.

100ml-1L Pesticide Filling Machine Semi Automatic Piston Filling Machine Two Heads 2
