Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-CZ-2A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 10 sets per month

Get Best Price
Highlight:

Semi Automatic Pesticide Filling Machine

,

5KG Pesticide Filling Machine

,

20kg weigh filler

Material:
SUS 304
Filling Volume:
5-20KG
Filling Type:
By Weigh
Model:
DGP-CZ-2A
Filling Head:
2 Heads
Capacity:
About 150 Drums/hour
Material:
SUS 304
Filling Volume:
5-20KG
Filling Type:
By Weigh
Model:
DGP-CZ-2A
Filling Head:
2 Heads
Capacity:
About 150 Drums/hour

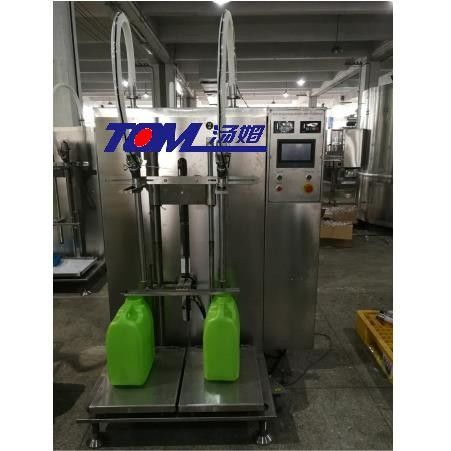

Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads

DGP-CZ-2A Semi-Automatic 5-20kg Weight Filling With Two Filling Heads

Major characteristics:

This product can be widely used in automatic filling of industries such as agrochemical, coating, lubricating oil, manual placing the drum in filling workstations, automatic quantitative filling (divided into coarse filling and fine filling), filling heads can be dived into bottom for filling, effectively prevent foaming, adopt PLC programming control, operate simple, convenient and easy to use. Small area, stable, reliable, high degree of automation, low labor intensity. It is an ideal packaging machine for agricultural and chemical coatings, lubricants and other industries.



Main technical parameters:

  • High precision: METTLER TOLEDO weighing sensor ensures the high precision of filling measurement.
  • The electric control system of the whole machine adopts well-known electrical brands (Schneider, Siemens, etc.) and integrates the electric control system, which is more stable, reliable, safe and low energy consumption. (the electrical configuration can be changed according to the customer's requirements)
  • Using principle of gravity weighing to realize the control of filling quantity. When filling, the signal is given by the weighing sensor, and the filling valve is controlled by the PLC; the machine has no material box, and the user's pipeline is directly connected to the interface of the machine, so the structure is simple and the cleaning is convenient, and the quick installation interface is adopted for the joints, which is convenient for disassembly
  • The filling part of the machine is composed of fast filling and slow filling. At the beginning of filling, the fast filling valve and slow filling valve are all opened for fast filling; when the filling reaches the fast feeding value, the fast filling valve is closed, and the slow filling position is used for slow filling to ensure the accuracy of filling volume; when the filling reaches the target feeding value, the slow filling valve is closed. All parts in direct contact with materials are made of SUS304 stainless steel.
  • The filling system of the machine is designed with a special plugging device to prevent the material dripping after filling.
  • the machine has a good function of diving and defoaming (according to the characteristics of materials). It can automatically adjust the rising speed of the filling pipe according to the speed of the feed flow to reduce the foam in filling process.

Technical parameters:

Filling head 2 heads
Precision ≤±0.2%(test with water )
Capacity 5KG:≈150drums/hour(test with water, limited by manual operation speed)
Power supply 380V;50Hz
Power 1.5 kw
Dimension 1050mm(L)×1100mm(W)×1700mm(H)
Machine weight About 500 kg



Suitable Drum's picture:

Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 0

Packaging & shipping:

All the machines are wrapped with film, and then fixed with carbon steel , outside use plywood case packed which totally suitable long distance sea shipping.

Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 1



Company Overview--Jiangsu Tom Group

Tom "The Little White House"



Jiangsu Tom Group factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.

Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 2

Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 3 Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 4
Company covers an area of 150 mu Office building
Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 5 Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 6
New factory processing center Old factory processing center
Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 7 Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 8
Assembly workshop After-sales service big data service center
Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 9 Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 10
Large meeting room Reception room
Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 11 Semi Automatic Pesticide Filling Machine 5-20kg Weigh Filler Two Heads 12
Packaging material display area Model workshop
