Two Head Semi Auto Weighing Filling Machine 5-30KG

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-CZ-2A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 sets per month

Get Best Price
Highlight:

Two Head semi auto weighing filling machine

,

30KG semi auto weighing filling machine

,

5KG weigh filler packaging machine

Material:
Stainless Stell 304
Filling Volume:
5-30KG
Speed:
700 Bottle Per Hour
Filling Type:
By Weigh
Application:
For EC SC SL...
Model:
DGP-CZ-2A
Liquid:
Liquid
Material:
Stainless Stell 304
Filling Volume:
5-30KG
Speed:
700 Bottle Per Hour
Filling Type:
By Weigh
Application:
For EC SC SL...
Model:
DGP-CZ-2A
Liquid:
Liquid

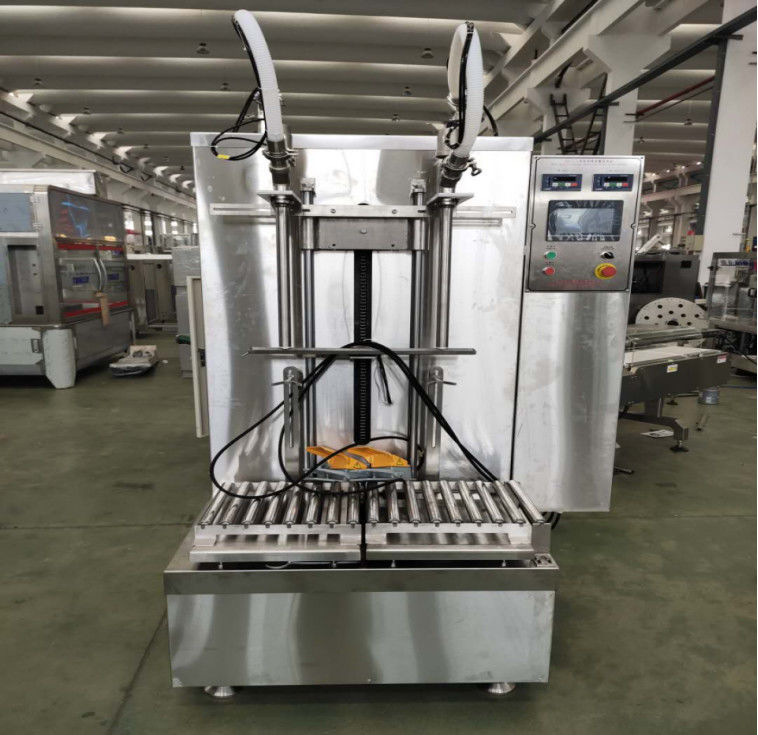

Two Head Semi Auto Weighing Filling Machine 5-30KG

DGP-CZ-2A Semi-automatic Two Filling Head weighing filler for 5-30KG

Major characteristics:

It is a semi-automatic filling machine with filling by weighing, with filling range from 5-30KG, suitable for filling agrochemical, daily chemicals, water aqua, lubricant, etc. and is ideal packing machine in industries of petrochemical, fine chemicals, etc.



Features

  • It is PLC + HMI controlled, with quick& slow filling mode, and when filling begin, the quick filling valve is on, and start to fill, and when it reached setting
  • volume for quick filling, the slow filling mode will begin to work until it reached to the set volume for slow filling.
  • With each filling nozzle controlled by weighing sensor and its feeding system, can make fine adjustment on filling volume of each filling nozzle.
  • Automatic drip collecting tray will be actuated after filling is over.

Technical parameters



No. Items Performance
01

Outer dimension (L×W×H)

1220mm×1800mm×1700mm

02

Machine Weight

200kg

03

Bottle neck

≥Φ40mm

04

Maximum Container Size

400mm×350mm×600mm

05

Power supply

AC220,1P, /AC380V±10%;3P, 50Hz/60Hz

06

Power

0.75kw
07 Filling range 5-30L
08 Filling error

±20g (20L)

09 Number of filling nozzles 2filling heads
10 Production capacity

700 bottles/hour

11

Relative humidity

<95%

Two Head Semi Auto Weighing Filling Machine 5-30KG 0



Two Head Semi Auto Weighing Filling Machine 5-30KG 1Two Head Semi Auto Weighing Filling Machine 5-30KG 2

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.

Jiangsu Tom is a national high-tech enterprise, an enterprise that has obtained the National Small and Medium Enterprise Venture Fund, a member enterprise of the World Trade Center, a member enterprise of the National and Provincial Daily Chemical Industry Association, a "little giant" enterprise in Jiangsu Province, and a professional and special innovation in Changzhou. Small and medium-sized enterprises, Changzhou service manufacturing demonstration enterprises, Changzhou Industrial Design Center, Jiangsu Province Certified Enterprise Technology Center, Jiangsu Province Intelligent Packaging Complete Equipment Engineering Technology Research Center, and Premier Wen visited Tom's Laboratory in 2009. So far, I have The company has more than 3,000 domestic daily chemical customers and more than 300 foreign daily chemical customers. Its excellent performance and perfect after-sales service system have won unanimous praise from users. Syngenta, Bayer, BASF, Luxi Chemical, Kim Jong Il, Stanley, nopson, Lear, Shurong, new Chaoyang, Hans, Fuhua, Huaying, Jiangshan, Huifeng, Kesheng, Fengshan, Jiannong, Yanhua Yongle, Huaxing, red sun, Guoguang, Zhengbang, sublimation Bayer, Yingtai, Wynca, Qizhou, Shandong Zhongnong, binnong, Qiaochang, Shengbang LVYE, Runfeng, LvBa, cosekinon, tianbang, Jiner Fengbang, Hansheng, hailier, Guangxi Institute of chemical industry, Tianyuan, Tianjin Huayu, Hebei Weiyuan, Yinnong, Lingang chemical and other well-known pesticide / veterinary medicine and fertilizer enterprises at home and abroad have become Tom's strategic partners and other well-known pesticide/veterinary medicine and fertilizer companies at home and abroad have become Tom's strategic partners.
