Product Details
Place of Origin: China
Brand Name: TOM
Certification: CE, ISO,CO
Model Number: FJ-140
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Sea Worthy Packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Filling Type: |
By Screw |
Filling Head: |
1 Heads |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Filling Range: |
5g-50g |
Warranty: |
All Life |
Speed: |
40 Bags/min |
Materials: |
SUS304 |
Precision: |
≤±1g |
Filling Type: |
By Screw |
Filling Head: |
1 Heads |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Filling Range: |
5g-50g |
Warranty: |
All Life |
Speed: |
40 Bags/min |
Materials: |
SUS304 |
Precision: |
≤±1g |
This type machine is used for heat-sealing multi-layers compound packed material of bags. Automatic achieve bag shaping, bag making, and filling, printing and sealing ECT. Choose different filling device can be suitable for different packing products, for example: powder, paste, granule, liquid and so on.
1. This machine adopts PLC, touch screen control panel, convenient to adjust.
2. The electric parts of this machine are controlled by PLC, touch screen control panel, easy operation, and high produce efficiency, wide application. Frequency conversion speed governor, high auto-immunization. Special device can to make the top sealing nice and smooth. No bag no opening and filling. Photoelectric sensor, approximate switch and other electric elements are using the international famous brand, reliable operation, easy operation, good man-machine interface.
3. It can achieve the double bags packing, multi working positions filling, which can anti-counterfeiting.
4. This type machine with fast speed, easy to change the packing specification, all the parts which will contact the filling products are made of high quality stainless steel, and it is an ideal choice for pharmacy, chemical, foodstuff, cosmetic industries.
Technical parameters
| No. | Items | Performance |
| 01 | Power supply |
380V±10% |
| 02 | Power |
4.5kw |
| 03 | Air source |
0.6Mpa clean and stable compressed air |
| 04 |
Bag size making |
max: 140mm (W)*180mm (H) Min: 70mm (W)*80mm (H) |
| 05 | Suitable film roll |
max external diameter: Ф380mm Inner diameter: Ф70mm-Ф80mm |
| 06 | Filling product | Powder, liquid, granular |
| 07 | Filling range | 5g-50g |
| 08 | Filling error |
30g≤±1g |
| 09 | Number of filling nozzles | 1 filling head |
| 10 | Production capacity |
40bags/min |
| 11 | Machine weight | about 900Kg |
| 12 | Machine dimension (L×W×H) |
2850mm (L)*920mm (W)*2200mm (H) |

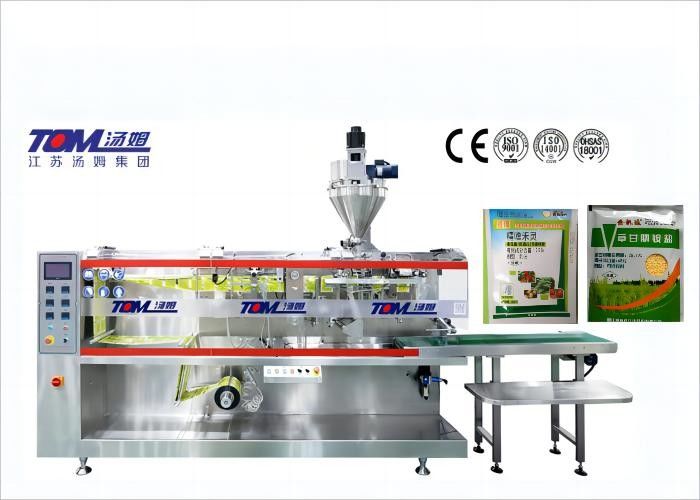

Some picture of FJ-140 Horizontal automatic packing machine:
Details of Packing Machine:
1. The packing machine’s all action realized by this cam, the cam’s precision is a key to this machine. Our cam can guarantee for whole lifelong, we will fee-replacement if the cam has any problem.
2. All the sealing parts are processed with made of stainless casting, long service life and more firmness.
3.Human designed for the button
4.Electric elements are choose famous brand
Packaging & Shipping:
1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.
Ware hourse for finished packed machines:
Loading machines into container:
We have a professional logistics team responsible for shipping
