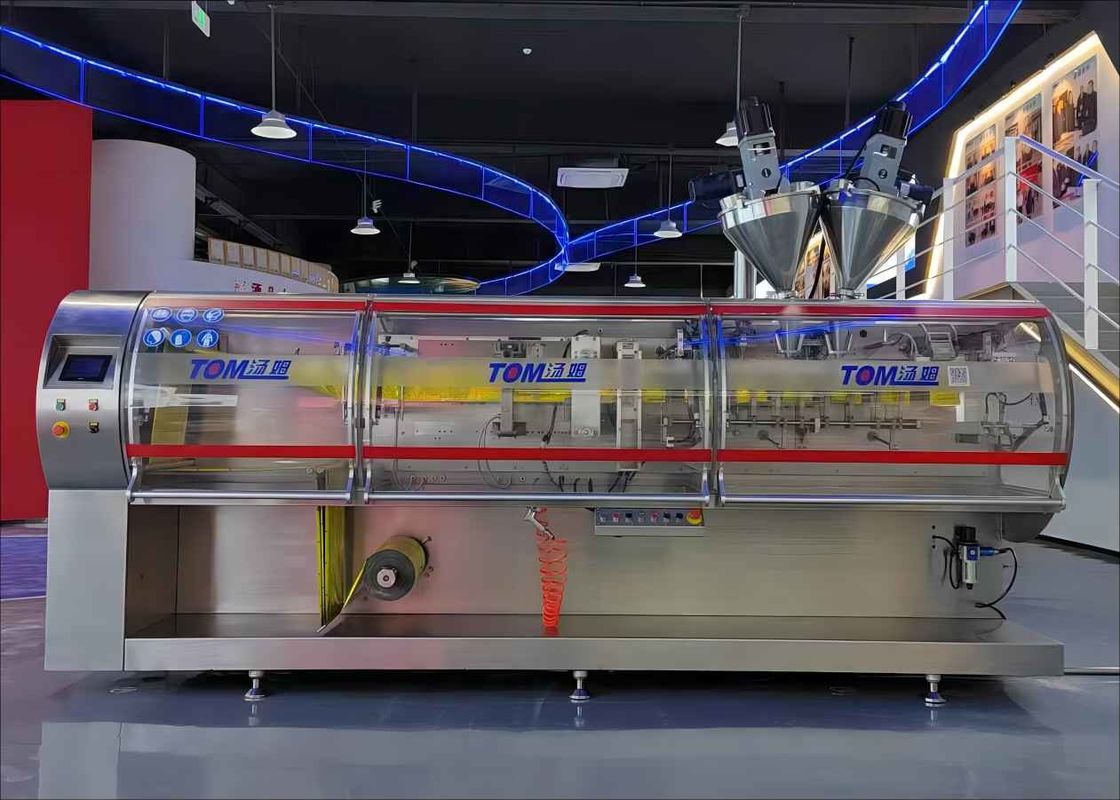

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: FJ-180

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 20 sets per month

Get Best Price
Highlight:

200g Pesticide Filling Machine

,

20g Pesticide Filling Machine

,

Granule horizontal packing machine

Filling Type:
By Screw
Filling Head:
2 Heads
Machine Size:
3900mm (L)*970mm (W)*2200mm (H)
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Filling Range:
20g-200g
Warranty:
All Life
Speed:
40-80bags/min
Materials:
SUS304
Filling Type:
By Screw
Filling Head:
2 Heads
Machine Size:
3900mm (L)*970mm (W)*2200mm (H)
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Filling Range:
20g-200g
Warranty:
All Life
Speed:
40-80bags/min
Materials:
SUS304
FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine
FJ-180 Fully Automatic High Speed Horizontal Bag Packing Machine For Powder and Granule
Major characteristics:

This type machine is used for heat-sealing multi-layers compound packed material of bags. Automatic achieve bag shaping, bag making, and filling, printing and sealing ECT. Choose different filling device can be suitable for different packing products, for example: powder, paste, granule, liquid and so on.

1. This machine adopts PLC, touch screen control panel, convenient to adjust.

2. The electric parts of this machine are controlled by PLC, touch screen control panel, easy operation, and high produce efficiency, wide application. Frequency conversion speed governor, high auto-immunization. Special device can to make the top sealing nice and smooth. No bag no opening and filling. Photoelectric sensor, approximate switch and other electric elements are using the international famous brand, reliable operation, easy operation, good man-machine interface.

3. It can achieve the double bags packing, multi working positions filling, which can anti-counterfeiting.

4. This type machine with fast speed, easy to change the packing specification, all the parts which will contact the filling products are made of high quality stainless steel, and it is an ideal choice for pharmacy, chemical, foodstuff, cosmetic industries.

Technical parameters



No. Items Performance
01 Power supply

380V±10%

02 Power

8.5kw

03 Air source

0.6Mpa clean and stable compressed air

04

Bag size making

single bag:

max: 180mm (W)*225mm (H)

Min: 85mm (W)*100mm (H)

Double bag:

Max (90+90) mm (w)*220(H)

Min (80+80) mm (W)*90(H)

05 Suitable film roll

max external diameter: Ф380mm

Inner diameter: Ф70mm-Ф80mm

06 Filling product Powder, liquid, granular
07 Filling range 10g-200g
08 Filling error

30g≤±1﹪,30g-200g±0.5﹪

09 Number of filling nozzles 2 filling heads
10 Production capacity

40bags/min-70bags/min

11 Machine weight about 1500Kg
12 Machine dimension (L×W×H)

3900mm (L)*970mm (W)*2200mm (H)



Some picture of FJ-180 Horizontal automatic packing machine:

Details of Packing Machine:

1. The packing machine’s all action realized by this cam, the cam’s precision is a key to this machine. Our cam can guarantee for whole lifelong, we will fee-replacement if the cam has any problem.

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 0

2. All the sealing parts are processed with made of stainless casting, long service life and more firmness.

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 1

3.Human designed for the button

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 2

4.Electric elements are choose famous brand

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 3

Safety door:

All doors are equipped with photoelectric induction, emergency door opening, machine shutdown alarm to ensure personnel safety.

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 4



Packaging & Shipping:

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 5



Ware hourse for finished packed machines:

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 6



Loading machines into container:

We have a professional logistics team responsible for shipping

FJ-180 20g-200g Pesticide Filling Machine Powder Granule Horizontal Packing Machine 7
