Home > products > Chemical Packaging Machine > XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: XJY-630D

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 35 sets per month

Get Best Price
Highlight:
Type:
Adhesive Label
Speed:
3000 Bph
Application:
For Round Bottle
Model:
XJY-630D
Power:
220V Or 380V
Precision:
High
Materials:
SUS 304
Guarantee:
One Year
Type:
Adhesive Label
Speed:
3000 Bph
Application:
For Round Bottle
Model:
XJY-630D
Power:
220V Or 380V
Precision:
High
Materials:
SUS 304
Guarantee:
One Year
XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine
XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine

Major Characteristics:

This machine is suitable for high requirement of label’s position and has a fixed position and has a fixed position for cylindrical bottle labeling. Touch screen, PLC program, the photoelectric device and color code tests the bottles and conveys the labels. Convenient operation and easy to adjust specification .the whole machine is made of stainless steel and aluminum alloy, rustless, conforming to GMP standard.



Technical Parameter:

No. Items Performance
01 Power supply AC 220V; 50Hz or 38V
02 Power

2.5 KW

03

Labeling speed 0 ~ 26 meter / minute
04 Inner diameter of paper roll Ф75mm
05 Max outer diameter of paper roll Ф350mm
06 Standard label height 0 ~ 140mm
07 Maximum label height 200mm
08 Weight 600 Kg
09 Machine dimension ( L x W x H ) 2000mm x 1600mm x 1500mm

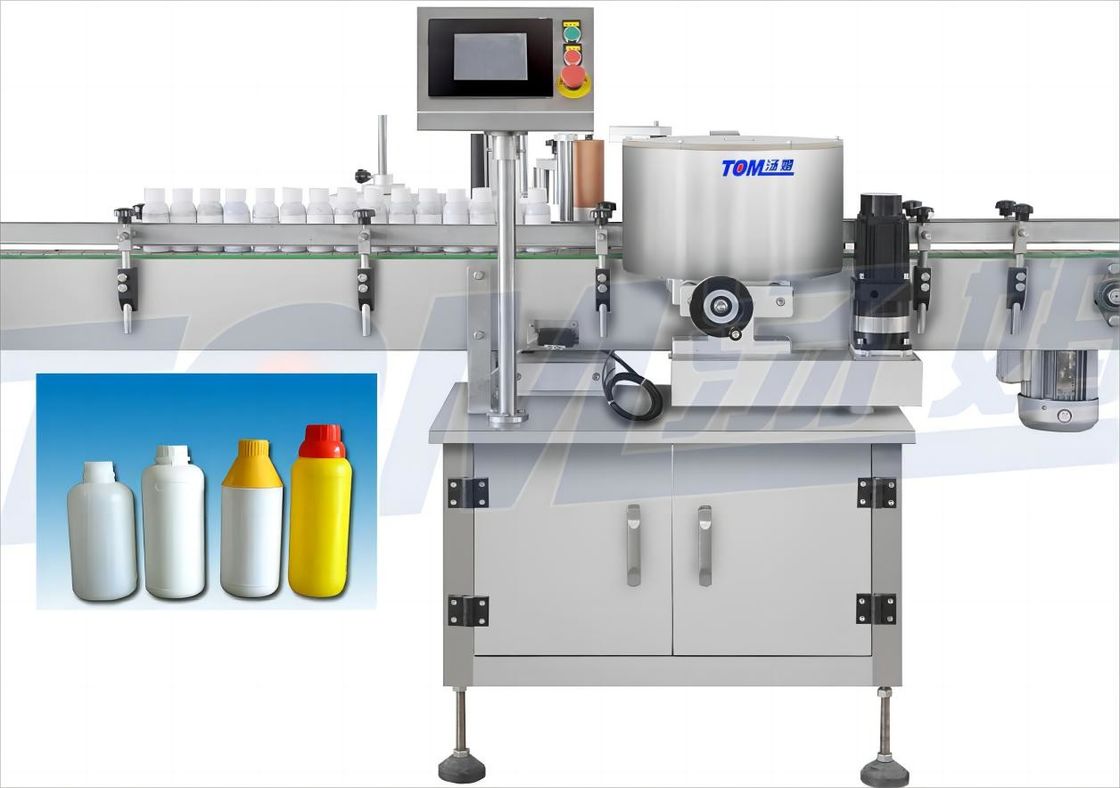

Machine's Picture:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 0

Part of Machine:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 1

The label out system use servo motor, with high precision,running stable.



XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 2

This mould is special designed based on the bottle’s diameter, make the labeling precision is more accurate.



XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 3

The servo motor adopts the French Schneider automatic high-precision closed-loop control principle of transmission, torque is big. By Japanese Panasonic PLC implementation of the action control, touch screen to adopt analog adjustment to ensure the labeling speed and high precision.



Suitable bottle:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 4



Packing picture:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 5



warehouse for finished machine:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 6



Loading picture:

XJY-630D High-precision Positioning Automatic Adhesive Labeling Machine 7
