2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-CZ-12LA

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 sets per month

Get Best Price
Highlight:

2800BPH Lubricant Filling Line

,

Lubricant Filling Line PLC Controlled

,

5L weighing filling machine

Material:
Stainless Stell 304
Filling Volume:
1-5L
Speed:
2800 Bottle Per Hour For 5L
Filling Type:
By Weigh
Application:
Petrochemical Industry
Model:
DGP-CZ-12LA
Liquid:
For Lubricating Oil
Material:
Stainless Stell 304
Filling Volume:
1-5L
Speed:
2800 Bottle Per Hour For 5L
Filling Type:
By Weigh
Application:
Petrochemical Industry
Model:
DGP-CZ-12LA
Liquid:
For Lubricating Oil

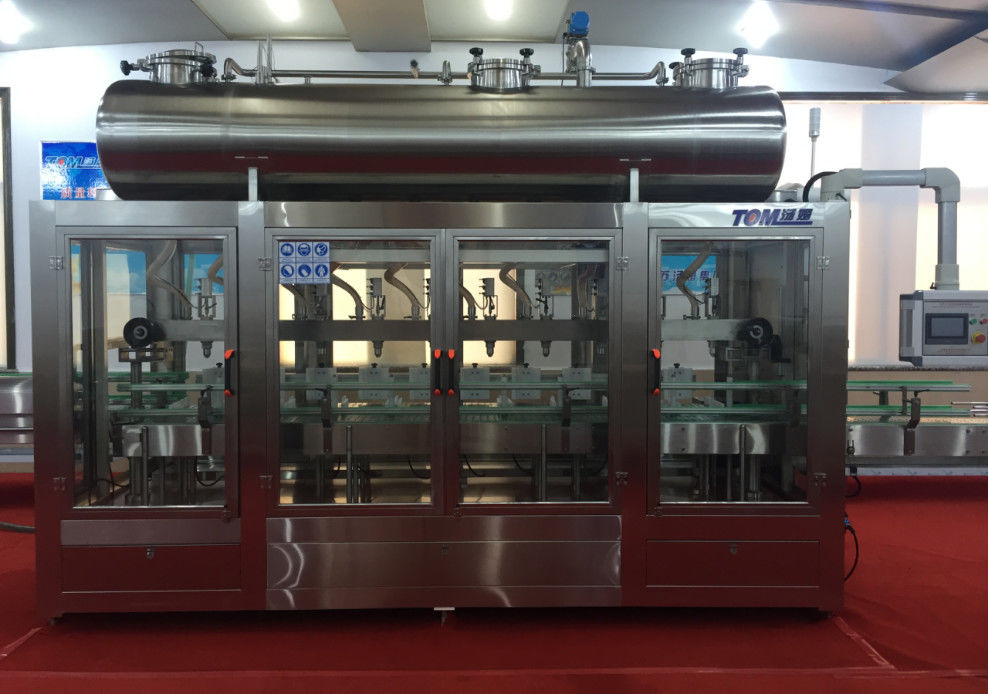

2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L

DGP-CZ-12LA Fully Automtaic PLC Controlled Weighing Filling Machine For 1-5L

Major characteristics
The machine in accordance with the requirements of your company using weighing filling machine, by the filling conveyor, the main frame, clip / push bucket device, metering system, filling head, oil storage system, control system and other components. Filling capacity can be set 1Kg-6Kg, with zero tracking, automatic correction function, gross weight / net weight of the two ways optional, filling the use of fine two-level filling, to ensure filling accuracy. Equipped with vacuum suction device to prevent dripping or spilling. Automatic completion of the count into the bottle, metering filling, feeding out a series of bottles and other operations, edible oil, lubricants and condiments and other industries ideal packaging machine.

Technical parameters



No. Items Performance
01 Power supply AC380V; 50Hz (may customized)
02 Power 1.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle mouth diameter

≥ φ18mm (≤ φ18 bottle of the bottle can be customized)

05

Filling container specifications

1-5L
06 Filling product Lubrication oil
07 Filling range 1-5L
08 Filling error ≦±2g
09 Number of filling nozzles 12filling heads
10 Production capacity

5L about 2800 bottles/hour

11 Machine weight about 1500Kg
12 Machine dimension (L×W×H)

3000mm × 1600mm × 2500mm



All pipelines and valves are connected by quick installation, which is easy to disassemble.

The main operating principle of the equipment

This machine uses the working principle of gravity weighing to control the filling volume. During filling, the programmable controller PLC controls the opening time of the filling valve, and the material flows into the container to be filled by itself/pumping. The material flows into the weighing small silo through the material box, and weighs while feeding until it reaches the set amount. The upper material is weighed and the lower bottle is in place. When the bottle is in place, the filling starts, and the subtractive method is used when filling. Principle, from 0 to accumulate until the set amount is filled, the small weighing bin always maintains a certain margin

2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 0



The filling machine is controlled by PLC system + touch screen. Free switching between automatic control and manual control. With system self-checking, fault alarm and display of movement status, accuracy, speed and adjustment. With its own man-machine interface, all parameters can be operated on the man-machine interface.

2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 12800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 2

The filling level tank level control and adjustment system can be combined with the feed pump (finished product tank) to control the feed and realize the automatic control function. The filling box material level is displayed in real time, the feed valve is automatically controlled according to the level of the material box, and an alarm is issued when the liquid level is high or low.

2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 32800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 4



The bottom panel of the filling station is recessed, and one end is equipped with a discharge port, which is convenient for cleaning and draining the cleaning liquid and raw material residue



2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 52800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 6

Applicable bottle type



2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 7



The Photo Of Our Company

2800BPH Lubricant Filling Line PLC Controlled Weighing Filling Machine 1-5L 8
