3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 30 Working Days

Payment Terms: L/C, T/T

Supply Ability: 25 sets per month

Get Best Price
Highlight:

3000 Bottles / Hour Lubricant Filling Line

,

Lubricant Filling Line SUS304

,

5L lubricant packaging machine

Automatic Grade:
Automatic
Type:
Filling Capping And Labeling
Warranty:
1 Year
Capping Speed:
3000 Bottles/Hour
Voltage:
220/380V
Suitable Bottle:
1L-5L
Condition:
New
Material:
SUS 304
Automatic Grade:
Automatic
Type:
Filling Capping And Labeling
Warranty:
1 Year
Capping Speed:
3000 Bottles/Hour
Voltage:
220/380V
Suitable Bottle:
1L-5L
Condition:
New
Material:
SUS 304
3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304

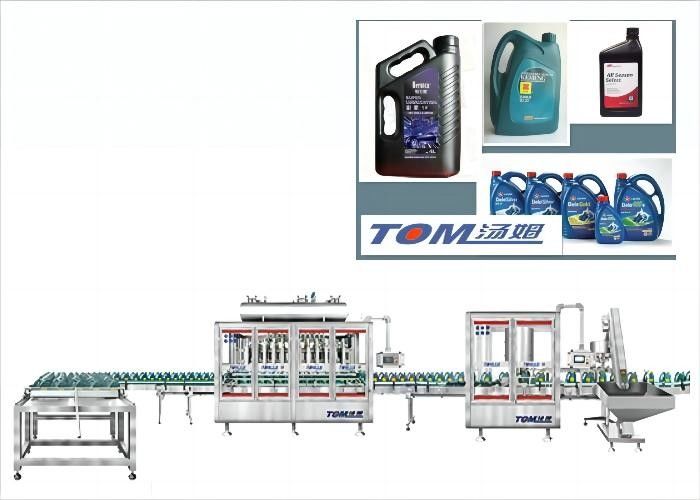

Lubricant Oil Filling Packaging Line



 3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304 0





Main characteristics:

This Lubricant Oil Filling Packaging Line is special designed for lubricant oil /brake oil packing, including linear filling, rotary capping and labeling machines.



Major Parameters:



No. Items Performance
01 Power supply AC220V; 50Hz (may customized)
02 Power 9.0 Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle diameter (minimum) Ф40mm (may customized)
05 Bottle diameter Ф40mm~Ф100mm (may customized)
06 Bottle height 60mm~230mm (may customized)
07 Filling product lubricant oil
08 Filling range

1L-5L

09 Number of filling nozzles 12
10 Number of capping heads 4
11 Production capacity 3000 bph for 1L
12 Machine weight about 3000Kg
13 Machine dimension (L×W×H) 3520mm×1400mm×2500mm





Detailed Introduce:

Major characteristics:

The filling machine is weighing type filling machine which consists of conveyor, main frame, drum clamp part, measuring part, filling nozzle, oil storage tank and control system, the filling range can be from 3L to 10L, with the function of zero-tracking and automatically fall correction, gross/net weighing type can be chosen, the filling type is divided into rough filling and fine filling, to guarantee high filling accuracy; equipped with drip collector and leakage-proof vacuum device, to prevent drip or spill.

This machine can complete drum inlet, measuring filling, drum outlet automatically, it is an ideal equipment in lube industry, Car Care Products industry and fine chemical industry.

3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304 1



Capping machine features:

The capping part is a rotary capping with 4 capping heads, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast speed, all parts are use high-quality stainless steel, is the ideal packaging equipment for various industries. PLC has a memory function, and can simultaneously memorize the combination of five doses and operating parameters, mechanical structure is simple, large space, greatly facilitate the replacement of the specifications of the adjustment.



Applicable bottle type:

3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304 2





Packaging & shipping:

3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304 3



Company Overview--Jiangsu Tom Group

3000 Bottles / Hour Lubricant Filling Line 1L-5L SUS 304 4

Tom "The Little White House"

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
