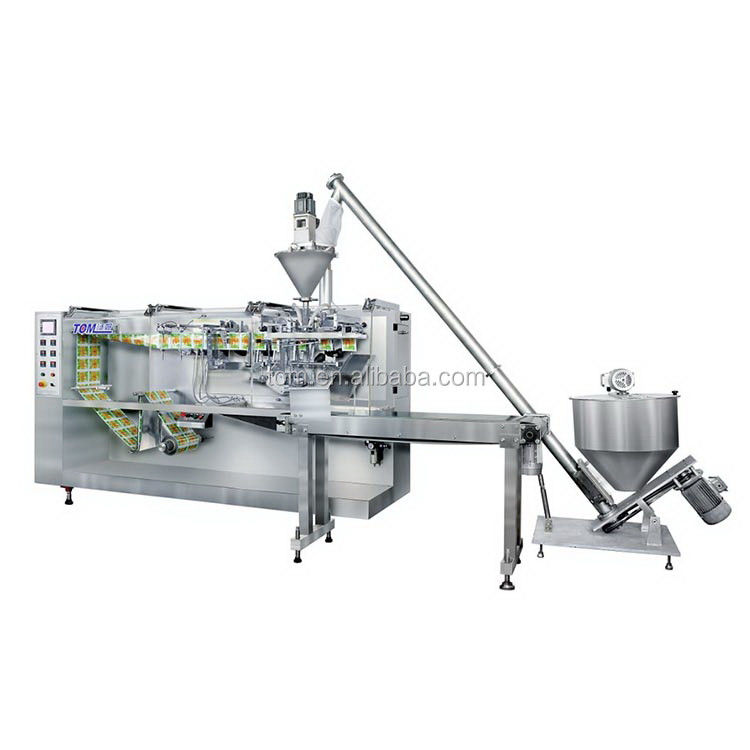

2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: FJ-140

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30 sets per month

Get Best Price
Highlight:

PLC Controlled Horizontal Pouch Packing Machine

,

100g Horizontal Pouch Packing Machine

,

2g horizontal pouch machine

Material:
Stainless Stell 304
Filling Volume:
2-100g
Speed:
40-80 Bottle Per Minute
Filling Type:
By Screw Or Piston
Application:
Powder, Liquid, Granular
Model:
FJ-140
Machine Size:
2850mm X 920mm X 2200mm
Material:
Stainless Stell 304
Filling Volume:
2-100g
Speed:
40-80 Bottle Per Minute
Filling Type:
By Screw Or Piston
Application:
Powder, Liquid, Granular
Model:
FJ-140
Machine Size:
2850mm X 920mm X 2200mm
2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine

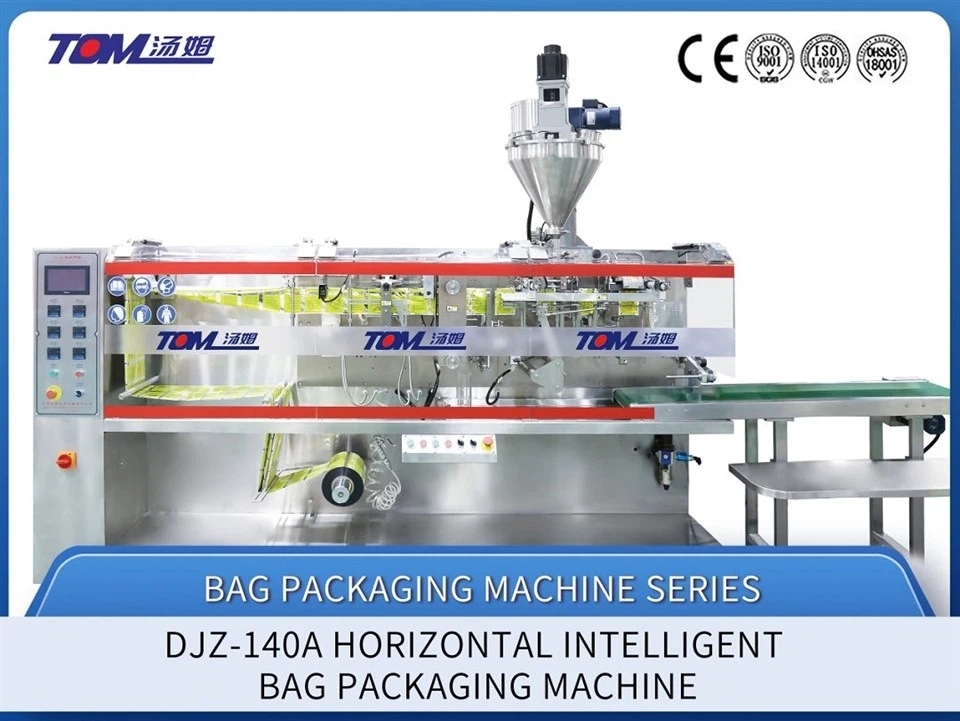

FJ-140 Fully Automtaic PLC Controlled Horizontal Pouch Packing Machine
Major characteristics

1. Controlled by PLC and operated by touch screen, easy operation, high production rate, wide application range.

2. The electrical parts consist of PLC and sleepless speed governor, high control ability, high automation. Specific devices are used to avoid dislocation. No penning of bags no filling. The application of touch screen makes it more reliable and convenient in operation and friendly in human machine interface. The famous brand advanced photoelectric sensors. Print coder, and proximity switches make contributions to the perfect embodiment of mechanical & electrical integration.

3. It is characterized by fast speed and simple specification change. All the parts that touch feed directly are made of stainless steel. It is an ideal packing machine for agrochemical, pharmaceutical, foodstuff and cosmetic industries.

Technical parameters



No. Items Performance
01 Power supply

380V±10%

02 Power

3.5kw

03 Air source

0.6Mpa clean and stable compressed air

04

Bag size making

Max: 140mm (Width) x 180mm (Height)

Min: 60mm (Width) x 70mm (Height)

05 Suitable film roll

max external diameter: Ф380mm

Inner diameter: Ф70mm-Ф80mm

06 Filling product Powder, liquid, granular
07 Filling range 2-100g
08 Filling error

30g≤±1﹪

09 Number of filling nozzles 1 filling heads
10 Production capacity

40bags/min-80bags/min

11 Machine weight about 880Kg
12 Machine dimension (L×W×H)

2850mm x 920mm x 2200mm



The application of high precision cam

We use 13 pcs of different specification of cams altogether on this machine, and cam is made of 38 chrome steel, which has excellent abrasion performance, rather than 45# steel which other manufacturers usually adopt. The cam is supplied by specialized manufacturer, with contact surface absolutely smooth. Only TOM use this kind cam, As the bag motion of horizontal bag feeding machine are realized by cam, so the precision of the cam can play decisive role on the running stability and usage life of the machine.

The cam of our horizontal machine is free to replace for life.

2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine 0

The sealing device wheel frame is all processed by stainless steel castings, which has long service life and strong firmness. The original welded parts are easily deformed and easily broken.

2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine 1

The main components of this machine are all international famous brands. The human-machine interface and microcomputer controller (PLC) adopt the Japanese Panasonic brand. The operation is simple and the operation is reliable. The servo control system adopts Taiwan TECO and has been used by the company for nearly 10 years. Has considerable experience, stable quality, wide application environment and low maintenance rate. The main power inverter adopts the French Schneider brand

                                2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine 2



An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine 3



The Photo Of Our Company



2-100g Fully Automatic PLC Controlled Horizontal Pouch Packing Machine 4
