DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-CZ

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 25 sets per month

Get Best Price
Highlight:

DGP-CZ Pesticide Filling Machine

,

Pesticide Filling Machine Fully Automatic

,

30KG Drum Filling Machine

Material:
Stainless Stell 304
Filling Volume:
5-30KG
Speed:
100-1200 Bottle Per Hour
Filling Type:
By Weight
Application:
Both Viscosity And No Viscosity Liquid
Model:
DGP-CZ
Liquid:
Any Liquid Can Flow Well
Material:
Stainless Stell 304
Filling Volume:
5-30KG
Speed:
100-1200 Bottle Per Hour
Filling Type:
By Weight
Application:
Both Viscosity And No Viscosity Liquid
Model:
DGP-CZ
Liquid:
Any Liquid Can Flow Well

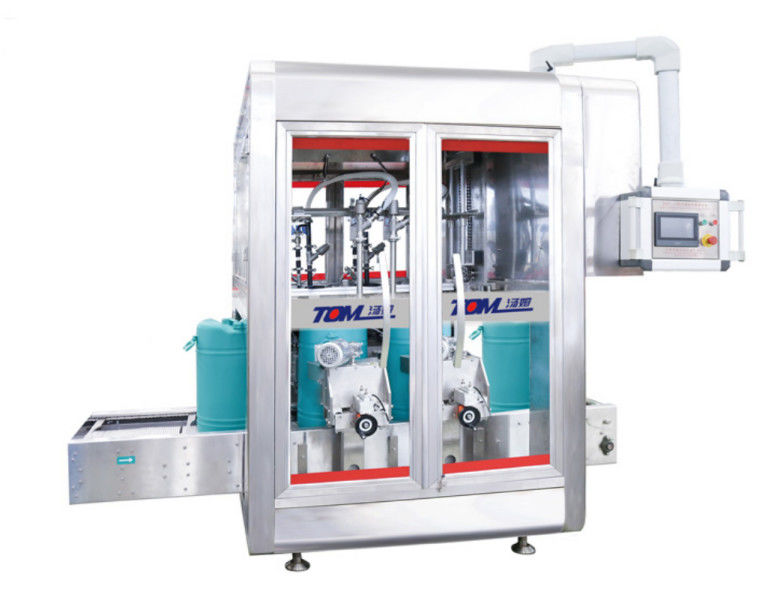

DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine

DGP-CZ Fully Automtaic PLC Controlled Weight Drum Filling Machine For 5-30KG

Major characteristics

1,the machine automatically feed drum, automatic positioning, automatic filling. Automatic outlet, finish filling barrel 5L-30L. It is our factory technicians modified in semiautomatic and automatic weighing filling machine, it is a new automatic liquid weight filling machine.

2,the machine works by weighing the use of gravity to achieve the filling volume control. When the filling is given by the load cell signal, the valve opens by PLC programmable controller to control the filling;The filling volume of single filling head and multiple filling heads can be adjusted in touch screen.

3,the machine filling part by the rapid filling and slow filling composition, filling valve fully open when the initial filling, fast-filling; filling to be fast feed value when filling valve is closed to slow filling loading position, slow-filling, in order to ensure the accuracy of the filling; arrived target feed value, the filling valve is closed.

4,This machine have block device, to eliminate the phenomenon of drawing or drip filling viscous liquid

5,the machine has a good dive defoaming functions, can automatically adjust the feed tube under rising feed flow rate based on the speed of the filling process to reduce bubble.

6. The filling machine is controlled by PLC system and touch screen. Automatic control and manual control can be switched freely. It has system of self-check, fault alarm, display motion state, accuracy, speed and adjustment. With its own man-machine interface, all parameters can be operated on the man-machine interface.

Technical parameters



No. Items Performance
01 Power supply AC380V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04

container L×W

Length 160mm-340mm:Width 100mm-260mm

05

suitable drum

height 250mm-500mm(design according customer’s drum)

06 Filling product High viscous, low viscous and non-viscous products
07 Filling range 100ml-1000ml or 1-5L
08 Filling error

≤±0.1%F.S(test by water)

09 Number of filling nozzles 2/4/6/8/10/12 filling heads
10 Production capacity 100-1200 bottles/hour
11 Machine weight about 1500Kg
12 Machine dimension (L×W×H)

3500mm×1900mm×2300mm





Durable, scale display, convenient specification adjustment, easy cleaning

DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine 0

This machine uses the working principle of self-flow weighing. PLC control filling valve; This machine has no material box, simple structure, convenient cleaning, quick loading interface for easy disassembly.

Applicable bottle type

DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine 1







This machine is linear piston type filling machine, with 304 stainless steel environmental protection closed frame, tempered glass door stainless steel edge protection (not frameless ordinary glass), the top left with suction port.

DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine 2

Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;



DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine 3

An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

DGP-CZ Pesticide Filling Machine Fully Automatic PLC Controlled Drum Filling Machine 4
