Product Details
Place of Origin: China
Brand Name: TOM
Certification: CE, ISO,CO
Model Number: DGP-Z-D
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 sets per month
Material: |
Stainless Stell 304 |
Filling Volume: |
50-1000ml Or 1-5L |
Speed: |
700-5000 Bottle Per Hour |
Filling Type: |
By Pistion/Volume |
Application: |
Both Viscosity And No Viscosity Liquid |
Model: |
DGP-Z-D |
Liquid: |
EC, SL, SC, ETC. |
Material: |
Stainless Stell 304 |
Filling Volume: |
50-1000ml Or 1-5L |
Speed: |
700-5000 Bottle Per Hour |
Filling Type: |
By Pistion/Volume |
Application: |
Both Viscosity And No Viscosity Liquid |
Model: |
DGP-Z-D |
Liquid: |
EC, SL, SC, ETC. |
Major characteristics
This is our newly developed pesticide filling machine. It has reached the international advanced level ,partial has exceeded the similar product . It is also accepoted by the world famous chemical magnate . This is a inline piston filling machine for cream and liquid.It adopts PLC and touch screen control panel for controling materials . It is characterized by accurate measuring ,advanced structure ,stable operating ,low noise ,large adjusting range ,fast filling speed . It is also suitable for the and high viscosity ,liquid ,semi-liquid .filling of easy volatilization ,easy bubbly liquid strong corrosive liquid for rubber and plastic, Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head . The external surface of this machine is made of excellent stainless steel . Good appearance , applied to GMP standard .
Technical parameters
| No. | Items | Performance |
| 01 | Power supply | AC220V; 50Hz (may customized) |
| 02 | Power | 1.5 Kw-4.5Kw |
| 03 | Air source | 0.55Mpa-0.6Mpa clean and stable compressed air |
| 04 | Bottle diameter | Ф40mm～Ф100mm (may customized) |
| 05 | Bottle height | 60mm～230mm (may customized) |
| 06 | Filling product | High viscous, low viscous and non-viscous products |
| 07 | Filling range | 100ml-1000ml or 1-5L |
| 08 | Filling error | ≦±2g |
| 09 | Number of filling nozzles | 4/6/8/10/12/16/20 filling heads |
| 10 | Production capacity | 700/1200/1800/2400/3000/3600/4800/6000 bottles/hour |
| 11 | Machine weight | about 1500Kg |
| 12 | Machine dimension (L×W×H) |
2000mm×1500mm×2200mm |
Durable, scale display, convenient specification adjustment, easy cleaning
Three-way pneumatic valve: our company has 25 years of experience in filling mechanism, and knows that non-professional valve manufacturers are difficult to make valves with good sealing performance. The three-way valve is cast as a whole to prevent leakage.
Our company has a number of solutions for the problems of leakage, wire drawing and foam after filling of materials that users worried
Applicable bottle type

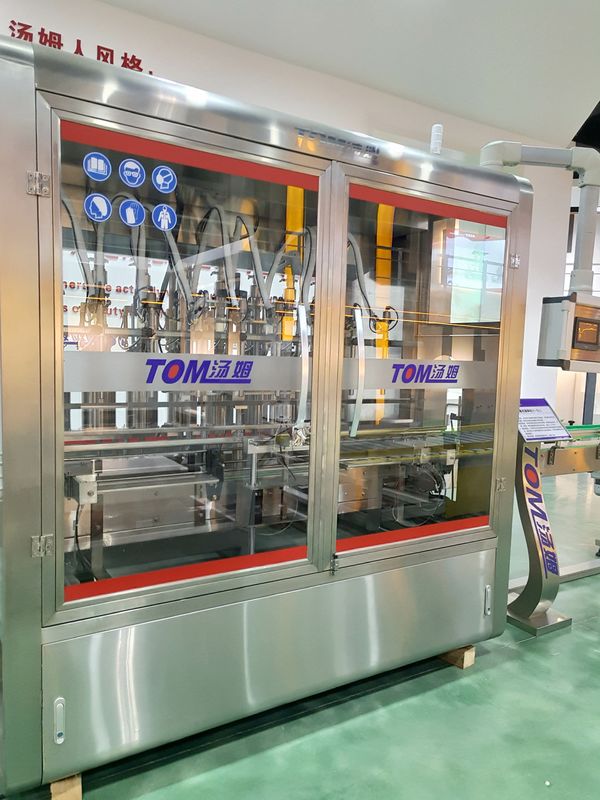

This machine is linear piston type filling machine, with 304 stainless steel environmental protection closed frame, tempered glass door stainless steel edge protection (not frameless ordinary glass), the top left with suction port.
Patent design automatic cylinder cleaning function, can discharge the material completely clean, save the cleaning waste water.
The computer automatically controls the piston cylinder to remove the cylinder quickly.
Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;
An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)
