1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE, ISO,CO

Model Number: DGP-20B

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 25 sets per month

Get Best Price
Highlight:

1800BPH Detergent Filling Machine

,

1200BPH Detergent Filling Machine

,

3000BPH detergent packing machine

Material:
Nometal
Filling Volume:
50-1000ml
Speed:
1000-5000 Bottle Per Hour
Filling Type:
By Gravity/Piston
Application:
Both Viscosity And No Viscosity Liquid
Model:
DGP-20B
Liquid:
Dtergent,HCL, Bathroom Cleaner
Material:
Nometal
Filling Volume:
50-1000ml
Speed:
1000-5000 Bottle Per Hour
Filling Type:
By Gravity/Piston
Application:
Both Viscosity And No Viscosity Liquid
Model:
DGP-20B
Liquid:
Dtergent,HCL, Bathroom Cleaner
1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic
DGP-20B Fully Automtaic PLC Controlled Nonmetal Dertergent Filling Packaging Machine
This is a inline piston filling machine for corrosive liquid and cream. Corrosive liquid filling machine adopts PLC and touch screen control panel for controling materials . It is also suitable for the and high viscosity ,liquid ,semi-liquid .filling of easy volatilization ,easy bubbly liquid strong corrosive liquid for rubber and plastic, Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head .

Major characteristics

This is our newly developed pesticide filling machine. It has reached the international advanced level ,partial has exceeded the similar product . It is also accepoted by the world famous chemical magnate . This is a inline piston filling machine for cream and liquid.It adopts PLC and touch screen control panel for controling materials . It is characterized by accurate measuring ,advanced structure ,stable operating ,low noise ,large adjusting range ,fast filling speed . It is also suitable for the and high viscosity ,liquid ,semi-liquid .filling of easy volatilization ,easy bubbly liquid strong corrosive liquid for rubber and plastic, Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head . The external surface of this machine is made of excellent stainless steel . Good appearance , applied to GMP standard .

Technical parameters



No. Items Performance
01 Power supply AC220V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle diameter Ф40mm~Ф100mm (may customized)
05 Bottle height 60mm~230mm (may customized)
06 Filling product High viscous, low viscous and non-viscous products
07 Filling range 100ml-1000ml
08 Filling error ≦±2g
09 Number of filling nozzles 4/6/8/10/12/16/20 filling heads
10 Production capacity 1200/1800/2400/3000/3600/4800/6000 bottles/hour
11 Machine weight about 1500Kg
12 Machine dimension (L×W×H)

2000mm×1500mm×2200mm



Durable, scale display, convenient specification adjustment, easy cleaning

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 0

height adjust:

When changing the bottle type, rotate the hand wheel to adjust the height of the filling nozzle.

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 1



Our company has a number of solutions for the problems of leakage, wire drawing and foam after filling of materials that users worried

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 2



Applicable bottle type



1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 3

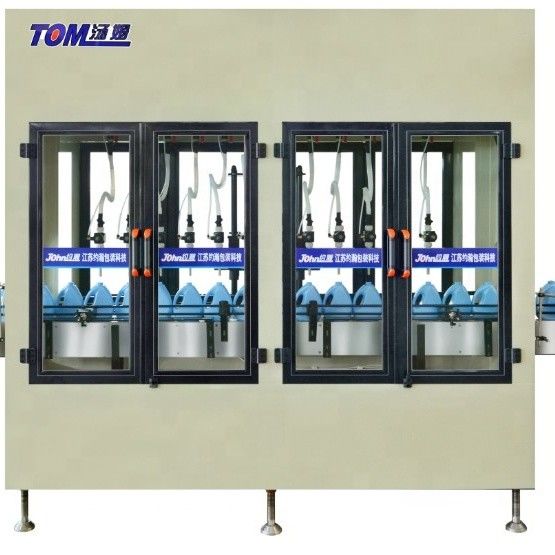

This machine is linear piston type filling machine, with 304 stainless steel environmental protection closed frame, tempered glass door stainless steel edge protection (not frameless ordinary glass), the top left with suction port.

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 4

The part of electrical equipment

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 5

An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

1200BPH 1800BPH Detergent Filling Machine 2400BPH 3000BPH Fully Automatic 6
