SUS304 Detergent Filling Machine Automatic Piston Liquid

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GZH-XDA

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 30 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

Liquid Detergent Filling Machine

,

Piston Detergent Filling Machine

,

SUS304 liquid detergent packaging machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
SUS304 Detergent Filling Machine Automatic Piston Liquid

100ml-1000ml SUS304 Good-Looking Digital Liquid Detergent Bottle Filling Machine GZH-XDA

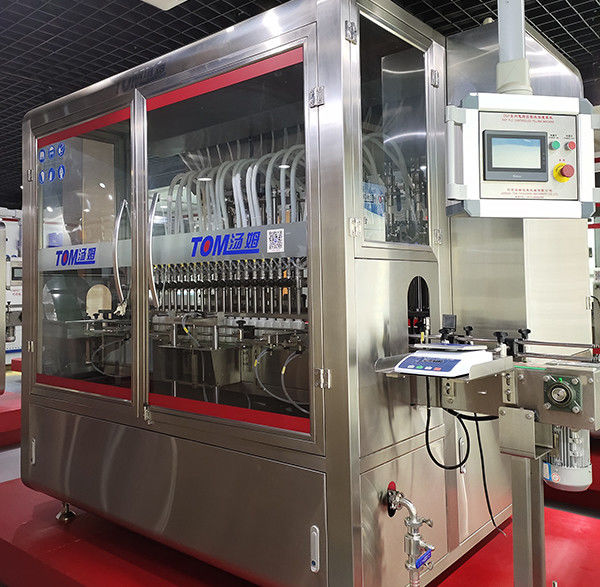

SUS304 Detergent Filling Machine Automatic Piston Liquid 0













































































Major characteristics:

This is linear piston filling machine, especially designed for high viscous, low viscous and non-viscous products. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of all filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. Various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

5. The material which contacts liquid will be made of SS316L.

6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.



Technical parameters:

No. Items Performance
01 Power supply AC220V/380V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle diameter Ф40mm~Ф100mm (may customized)
05 Bottle height 60mm~230mm (may customized)
06 Filling product High viscous, low viscous and non-viscous products such as Detergent, Shampoo
07 Filling range 100ml-1000ml
08 Filling error ≦±2g
09 Number of filling nozzles 4/6/8/10/12/16/20 filling heads
10 Production capacity 1200/1800/2400/3000/3600/4800/6000 bottles/hour
11 Machine weight about 1500Kg
12 Machine dimension (L×W×H) 2000mm×1500mm×2200mm



Machine details:

Filling nozzle:

The filling nozzle is extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.

SUS304 Detergent Filling Machine Automatic Piston Liquid 1



SUS304 Detergent Filling Machine Automatic Piston Liquid 2



The position of adjustment are all carved scale or equipped with digital display, easy to adjust; and specification adjustment can be achieved without tool;

SUS304 Detergent Filling Machine Automatic Piston Liquid 3

SUS304 Detergent Filling Machine Automatic Piston Liquid 4



Part of filling hopper:

(1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.

(2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.

(3) Designing and production meet GMP. Easily dismantle, clean and maintain.

SUS304 Detergent Filling Machine Automatic Piston Liquid 5



Piston fall off piston cylinder

For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.

SUS304 Detergent Filling Machine Automatic Piston Liquid 6



Application products:

This filling machine is good work for Shampoo, Body Lotion, Liquid Detergent, Liquid soap, Sanitizer and some other viscous and high-Viscous liquid.

SUS304 Detergent Filling Machine Automatic Piston Liquid 7

General information:

Model: GZH-XDA

Minimum order quantity: 1set

Payment term: T/T

Delivery time: single machine: 30 working days, filling line: 2 months

Delivery port: Shanghai, China

Packing: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Certificate: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Standard: Meet GMP standard

Cleaning: with CIP cleaning system

Place of Origin: Changzhou, China (Mainland)

Service: Engineer is available to install and debug the equipment at customer site.
