Product Details
Place of Origin: China
Brand Name: TOM
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Filling Speed: |
High |
Service: |
OEM/ODM |
Driving System: |
Servo Motor |
Product Name: |
Lubricant Filling Machine |
Speed: |
50-10000 Bottle Per Hour |
Operation Mode: |
Automatic |
Power Supply: |
220V/380V |
Filling Accuracy: |
High |
Filling Speed: |
High |
Service: |
OEM/ODM |
Driving System: |
Servo Motor |
Product Name: |
Lubricant Filling Machine |
Speed: |
50-10000 Bottle Per Hour |
Operation Mode: |
Automatic |
Power Supply: |
220V/380V |
Filling Accuracy: |
High |
This machine is specifically designed for the purpose of filling up to 200 liters of barrel. Being capable of multiple azimuthal rotation, the machine can fulfill the task of barrel filling with the help from an operator who holds the control on the head of the filling. This machine is an ideal choice for a wide range of applications, including water, oil paint, lubricating oil and Soy letithin.
The whole line is composed of three sections: the barrel feeding station, the filling station and the output station for barrels. Initially, the truck driver will put the empty barrel onto the feeding station, and then they will be implemented to the filling station in order. During the process, it would be necessary for the worker to adjust the filling head, and once done, the filling process will kick off and then the barrel will be send to the output station. Finally, the worker will be tasked with closing off the barrel, completing the whole process.
| 1 | Size (L*W*H) | 1600*2000*3000mm |
| 2 | diameter of drum’s mouth: | ≥20mm(can special design) |
| 3 | diameter of drum: | 200L |
| 4 | filling error: | ≤ +-0.1% |
| 5 | power: | 2.5KW |
| 6 | air source | 0.5MPa clean and stable air |
| 7 | power supply | AC380V 50HZ |
| 8 | filling head | 1 |
| 9 | speed | ＜50 drum/hour(200Ldrum) |
| 10 | working temperature | 0℃ -- 50℃ |
| 11 | Working condition relative humidity | <95% (non-condensing) |
| 12 | Material interface | standard flange, material inlet pressure is less than 0.3 MPa |
| 13 | material |
contact part is 304 stainless steel, conveyor roller is made of carbon steel |

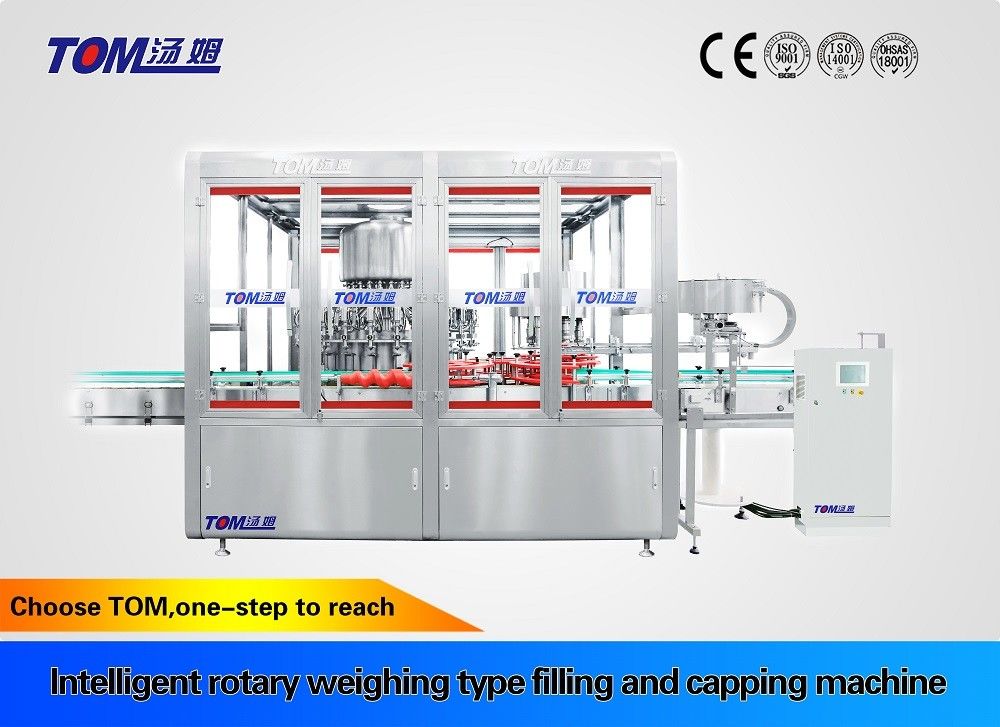

The TOM Automatic Lubricant Oil Filling Machine is a high-end lubricant filling equipment from China, driven by servo motor and controlled by PLC, which can complete the filling of lubricant oil. The capacity of the machine is customizable and the filling speed is from 50 to 10000 bottles per hour. We provide not only the OEM/ODM service but also the perfect solution for your engine oil packing. It’s the ideal choice for all your lubricant filling needs.
Technical support and service for Lubricant Filling Machine
Our team of professionals is available to provide the best technical support and service for your Lubricant Filling Machine. We’ll help you quickly troubleshoot any issues, diagnose problems, and provide helpful tips for maintenance and repairs. Our team will work with you to ensure that your equipment is performing optimally and that you are getting the best results from your machine.
We also offer a range of services, including installation, calibration, and preventive maintenance. Our team of qualified technicians is available to provide on-site or remote support to help you make the most of your Lubricant Filling Machine. We also offer a wide range of spare parts to help you get your machine up and running quickly.
We are committed to providing the best customer service and technical support. If you have any questions or concerns about your Lubricant Filling Machine, please do not hesitate to contact us.
Packaging and Shipping
The Lubricant Filling Machine is packaged in the most efficient way to ensure that it is well-protected during transit. The machine is then shipped to the customer's site, with all relevant documents and instructions.
Q1: What is the brand name of the Lubricant Filling Machine?
A1: The brand name of the Lubricant Filling Machine is TOM.
Q2: Where is the Lubricant Filling Machine made?
A2: The Lubricant Filling Machine is made in China.
Q3: What kind of lubricant can be used with the Lubricant Filling Machine?
A3: The Lubricant Filling Machine is compatible with most types of lubricant.
Q4: How long does it take to set up the Lubricant Filling Machine?
A4: Setting up the Lubricant Filling Machine should not take longer than one hour.
Q5: Does the Lubricant Filling Machine require any maintenance?
A5: The Lubricant Filling Machine requires regular maintenance to ensure optimal performance.
