Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GZH-12DA

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 30 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

Automatic Shampoo Filling Machine

,

Shampoo Filling Machine PLC Controlled

,

12 Nozzle shampoo bottle filler

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including

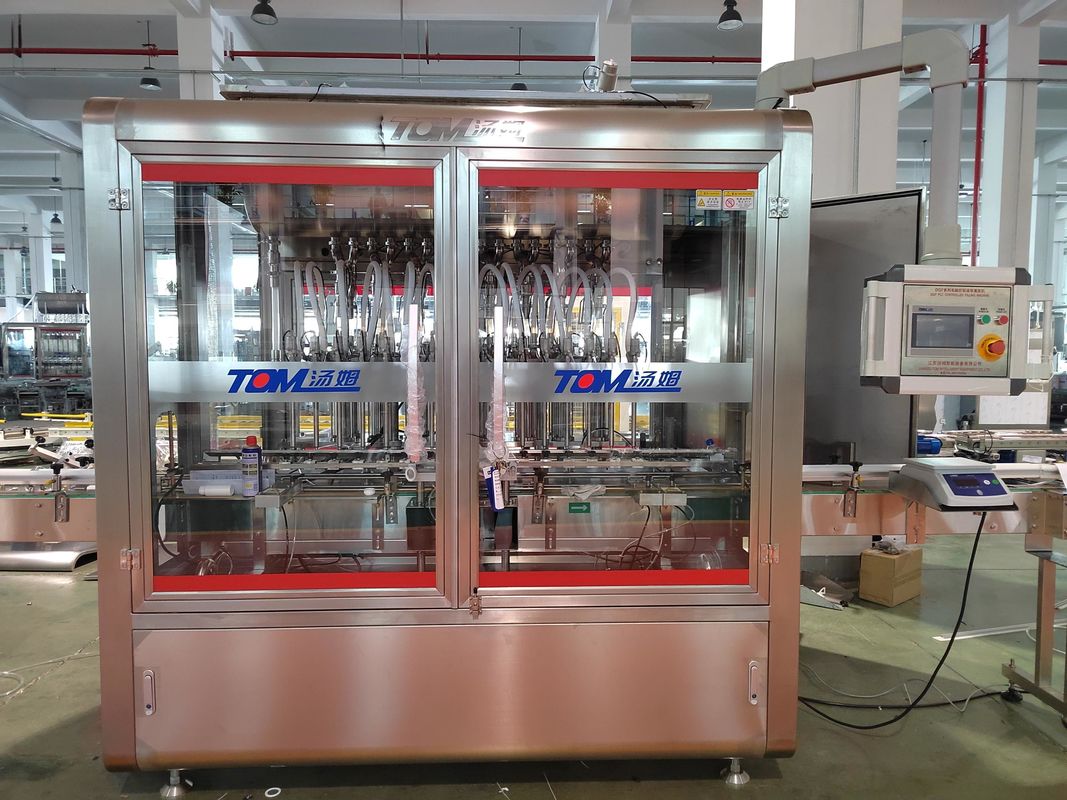

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle

Automatic PLC Controlled 12 Nozzle Shampoo Filling Machine, Piston Filling Machine

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 0



Major characteristics:

This is linear piston filling machine, especially designed for high viscous, low viscous and non-viscous products. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of all filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. Various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

5. The material which contacts liquid will be made of SS316L.

6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.



Technical parameters:

No. Items Performance
01 Power supply AC220V/380V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Bottle diameter Ф40mm~Ф100mm (may customized)
05 Bottle height 60mm~230mm (may customized)
06 Filling product High viscous, low viscous and non-viscous products such as Detergent, Shampoo
07 Filling range 100ml-1000ml
08 Filling error ≦±2g
09 Number of filling nozzles 12 filling heads
10 Production capacity 3600 bottles/hour
11 Machine weight about 1500Kg
12 Machine dimension (L×W×H) 2000mm×1500mm×2200mm



Machine details:

Filling nozzle:

The filling nozzle is extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 1



Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 2



The position of adjustment are all carved scale or equipped with digital display, easy to adjust; and specification adjustment can be achieved without tool;

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 3

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 4



Part of filling hopper:

(1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.

(2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.

(3) Designing and production meet GMP. Easily dismantle, clean and maintain.

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 5



Piston fall off piston cylinder

For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 6



Application products:

This filling machine is good work for shampoo, detergent and some other viscous and high-Viscous liquid.

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 7

Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 8

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 9

Automatic Shampoo Filling Machine PLC Controlled 12 Nozzle 10
