1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GZH-2DA1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 20 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

5L Shampoo Filling Machine

,

Shampoo Filling Machine 2 Nozzle

,

Semi Automatic shampoo refill machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Number Of Filling Nozzle:
2
Filling Speed:
8-10 Bottle/minute
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Number Of Filling Nozzle:
2
Filling Speed:
8-10 Bottle/minute

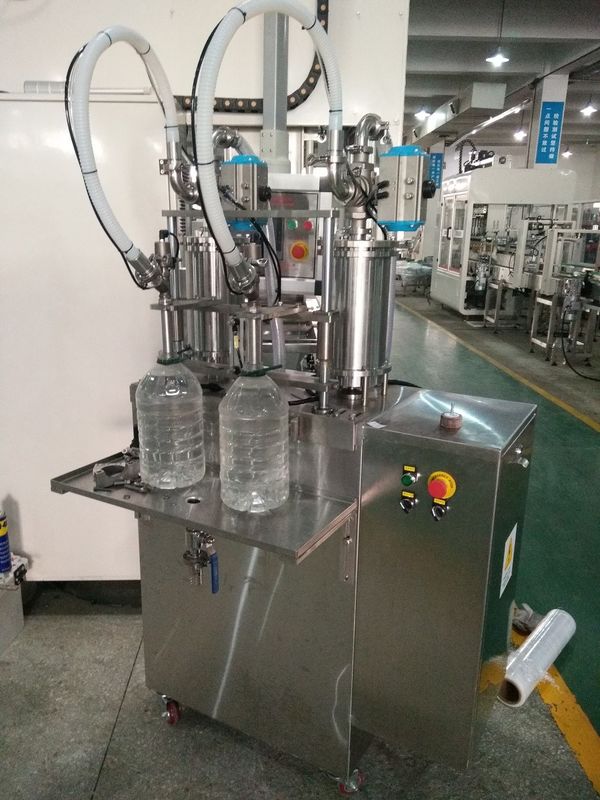

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle

1L-5L 2Nozzles Semi-Automatic Piston Filling Machine For Varous Liquid

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 0

Major characteristics:

1. This machine with two filling heads is to aim at liquid filling range from 1L to 5L.

2. The mainly part of machine is made of Stainless Steel 304 or 316L.

3. This machine is controlled by a pneumatic device with foot steps, when you step the pneumatic device, the machine starts filling, and the filling volume is controlled by a sensor which set inside the driving part.

4. Simple structure, easy to operate, accurate precision of quantitative filling and large yield etc.



Technical parameters

No. Items Performance
01 Machine dimension (L×W×H) 1150mm x 850mm x 1800mm
02 Machine weight 300Kg
03 Container mouth diameter ≥ φ35mm
04 Max container size φ200mm(diameter)×300mm
05 Power supply

AC220V;50HZ(or according to customers’ requirement)

06 Power 0.75 kW
07 Filling volume range 1L~ 5L
08 Error range ±2ml for 1L ; ±4ml for 4L
09 Pneumatic (air-operated) source 0.6Mpa clean and stable compressed air
10 Filling heads number 2
11 Production capacity

15-20 bottles/minute for 1L(according to operator’s operating speed)

12 Required working relative humidity 95% (no condensation)
13 95% (no condensation) 0 ~ 40℃

Machine details:

Filling nozzle:

The filling nozzle can be extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 1



The semi-automatic piston filling machine is suitable for various liquid such as detergent, pesticide, painting, lubricants oil etc., it has a widely using range, and east to operate, small footprint and save space

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 2



Application products: good work for filling ethyl Alcohol

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 3



Good work for filling dishing washing detergent

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 4



Good work for filling lubricants oil, engine oil

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 5



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 6



Tom's logistic department will load the goods into container direclty in Tom factory

1L-5L Piston Shampoo Filling Machine Semi Automatic 2 Nozzle 7
