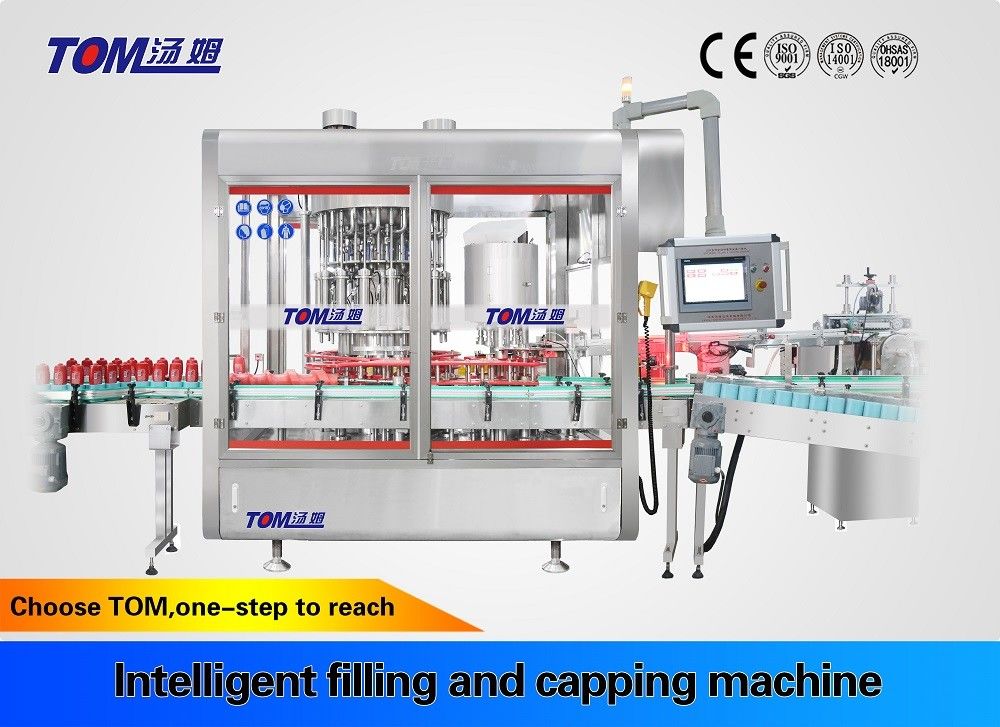

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: DGP-Z-20-6

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 60 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

20 Nozzle Edible Oil Filling Machine

,

Edible Oil Filling Machine 8 Heads

,

2 In 1 edible oil packing machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Number Of Filling Nozzle:
20
Number Of Capping Head:
8
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Number Of Filling Nozzle:
20
Number Of Capping Head:
8
20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1

Automatic PLC Controlled 20 Nozzle Filler And 8 Heads Capper 2-In-1 Edible Oil Filling Machine

Major characteristics:

1. The is a new-generation quantitative filling and capping machine .

2. Capping part with inlet bottle ,sorting cap , feeder cap ,capping and outlet bottle makes . Dispatchjing cap in high speed . Bottle and cap can operate sunchronously .With supermatic productivity and high automation , the rotary piston machine is new-generation quantitative one .

3.This machine is an integration of mechanics and electrics . It is automatically controlled by PLC and touch screen controlled panel . It is an ideal model which integrates mechanic , electric ,light and gas . The machine has exceeded the top level of the similar type Bottles and caps are not injured buring capping ,It can compare abjistment with the foreign similar products . It is charectenrized by its long-time compoents , stable running, low noise ,large range and high efficiency . The surface has been polished and biaufiful .this machine adopts stepless . It is idea for small ,medium , large packaging workshop . During the work , the key parts are protected . If there is anything abnormal it will automatically stop and alarm ,then the touch screen will hint the abnormal part’s whereabouts its efficient design of water-proof frame and pneumatic motion ensure the enwiroment ot wokshop is not polluted .



Technical parameters

No. Item Performance

01

Machine overall imension(L×W×H) 3500mm×2200mm×2200mm

02

No. of filling heads 20

03

No. of capping heads 8

04

Filling error 50-200m< 1ml , 200ml -1000ml < 2ml

05

Machine weight About 3000kg

06

Suitable bottle

Diameter: Φ40mm-Φ110mm; Height:80mm-320mm

07

Suitable bottle volume 100ml-1000ml

08

Power supply AC380V;50HZ

09

Power 7.0 kw

10

Air source / air consumption 0.6MPa clean and stable compressed air; 300L/min

11

Production capacity

≤8000b/h(it will be different ,according to material and volume of packing container )

12

Capper conveyor height 950mm±50mm



20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 0

Machine details:

The main filling and capping parts including 24 nozzle filling nozzles and 8 heads cappin heads, filling by piston with high filling accuracy and filling speed,

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 1



The capping heads suitable for varous kind of caps, and he capping heads are customized according to customer's cap sample, if the cap diameter is different, the capping heads need to change accordingly, but the changeover time is quick.

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 2



The bottle inlet screw is used for separate bottle one bye one enter into filling station smoothly

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 3



The crooked cap detector and rejector, is the capped bottle is unqualified such as cap is crooked, or cap is missing, this bottle will be rejected automatically

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 4



This is the aluminum foild detector and rejector, if the aliminum foil is missing, the bottle will be rejected automatically

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 5



This is the cap sorter, the cap sorter and sorting the caps to capping station one by one automatically, it has linkage function with the cap elevator and capping machine, if the cap sorter bowl is full, the cap elevator will stop feeding cap into sorter, if cap sorter is lacking caps, the elevator will start work again.

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 6



This is the cap transfer station, the capping head will grasp cap here and put cap onto bottle

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 7



Application products:

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 8



Conveyor and drip gutter: the conveyors before filling and after filling equipped with drip gutter also, to prevent liquid drop on ground and pollution workshop.

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 9



Cable trays: simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 10



Packaging & Shipping

The machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 11



Tom's logistic department will load the goods into container direclty in Tom factory

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 12

20 Nozzle Edible Oil Filling Machine 8 Heads 2 In 1 13
