8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel

Product Details

Place of Origin: Changzhou, Changzhou

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: KLJ-40D

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Non-fumigation wooden case inserted Iron Shelf, suitable for long time sea delivery

Delivery Time: 30 working days for single machine

Payment Terms: T/T

Get Best Price
Highlight:

12 Cartons / Minute auto box packing machine

,

auto box packing machine Stainless Steel

,

8 Cartons / Minute auto carton machine

Material:
Stainless Steel
Open Speed:
8-12 Cartons/minute
PLC Control:
Yes
Warranty:
One Year
Material:
Stainless Steel
Open Speed:
8-12 Cartons/minute
PLC Control:
Yes
Warranty:
One Year

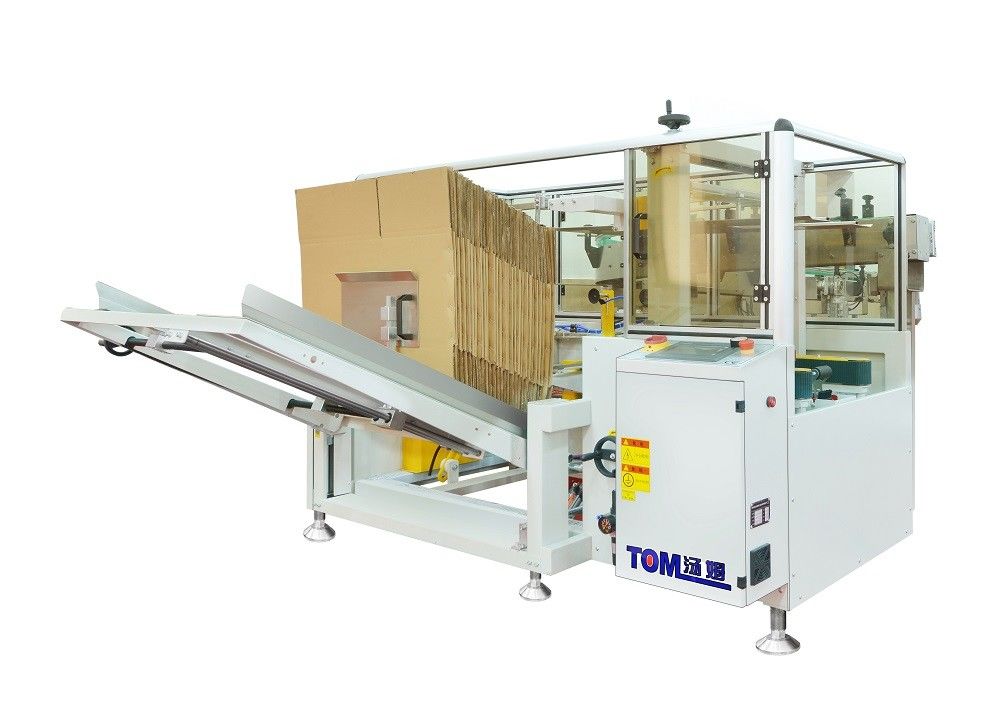

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel

Automatic Vertical Type Carton Box Opening Machine With Tap Bottom Sealing Function

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 0



Major characteristics:

1. This machine can complete the work of carton opening, folding and sticking the adhesive tape.

2. Adopts PLC+ touch screen control.

3. Imported components, electric and pneumatic parts.

4. Vertical cardboard magazine, add cardboards whenever necessary without stopping the machine.

5. Manually adjust for different cartons within allowable range, just takes 1~2 minutes.

6. Reasonable design, vacuum cup suck the cardboard, fold and seal the bottom.

7. Small space occupation, precision and durable parts provide the guarantee for stable running, long life, and high efficiency.

8. with protection device for cutter installation to avoid being hurt.

9. Easy operation, machine can be used individually and combined with the packaging line.



Technical Parameter:

No. Items Performance
01 Carton Size L:200-450 W:150-400 H:100-350mm
02 Speed 8-12 carton/min ( according to the carton size)
03 Dimension L2000*W1900*H1450mm
04 Power supply 220V/380V 50/60HZ 300W
05 Table Height Min 600mm; Max 720mm
06 Tape width 48/60mm
07 Air source 5-6kg/cm3
08 Tape 48/60/72mm
09 Weight 400kg



8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 18-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 28-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 3



Machine size:

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 4

Carton opening process

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 5

Main features:

Using vertical cardboard storage mode, only need to put the cardboard neatly on the storage tank, replenish the cardboard at any time, no need to stop, the rack is stable and durable,

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 6



In order to accurately grasp the carton, the multi-layer anti-static suction cup is selected, and the suction force of grasping the carton can reach 40-50KG, which is stable and durable.
The use of Airtac cylinder control, high wear resistance, no damage to the carton, durable.

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 7



8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 8



The patterned conveyor belt is used to increase the friction with the surface of the box to ensure the stable progress of the box and the perfect bottom cover with high wear resistance.

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 9



8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 10





Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 11

8-12 Cartons / Minute Auto Box Packing Machine Stainless Steel 12
