PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler

Product Details

Place of Origin: China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: LP-2A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Sea Worthy Packing

Delivery Time: 40 working days for single machine

Payment Terms: T/T, L/C, Western Union

Supply Ability: 15 sets per month

Get Best Price
Highlight:

PLC Controlled Edible Oil Filling Machine

,

6000bph Edible Oil Filling Machine

,

High Speed Bottle Unscrambler

Capacity:
6000bph For 100ml
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Suitable Bottle:
50ml-200ml Round Bottle
Automatic Grade:
Automatic
Warranty:
1 Years
Material:
304 Stainless Steel
Application:
For Round Bottle
Capacity:
6000bph For 100ml
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Voltage:
220V/380V
Suitable Bottle:
50ml-200ml Round Bottle
Automatic Grade:
Automatic
Warranty:
1 Years
Material:
304 Stainless Steel
Application:
For Round Bottle

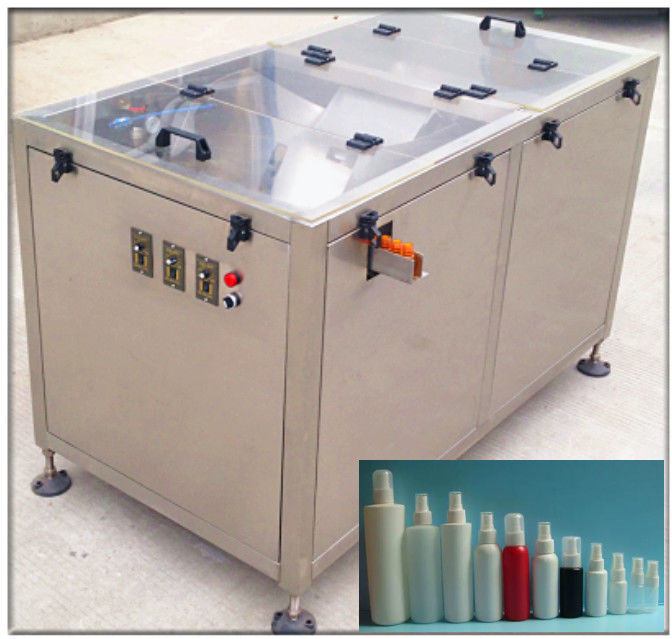

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler

LP-2A PLC controlled Fully Automatic High Speed Bottle Unscrambler



Major characteristics:

This machine is specially designed for small bottles from 10ml to 150ml, Easy operation, simple maintenance and reliable running, This machine is equipped with outlet bottle quantitative testing and overload protection device, noise <70dB, the main material of this machine are all use SS304, easy to clean and sterilize,Using automatic reverse bottle rejection principle, equipped with bottle accumulation device, greatly increased the production efficiency.

This machine equipped with two stepless speed regulating motors, one is used for bottle elevator, the other one is used for adjust the speed of working star, that is means the star’s turn speed is faster, the outlet unscrambled bottle speed is faster. There’s a sensor (AUTONICS) to detect whether the conveyor has bottle blcoking, if bottle blocked, then the working star will stop turn automatically, if detect bottle insufficient, the star will work again. This machine suitable for daily chemical, Pharmaceuticals and foodstuff industries.



Technical Parameter:

No. Items Performance
01 Capacity 11000 bottles/hour
02 Bottle diameter Φ30mm~Φ60mm
03 Bottle height 50mm~150mm
04 Power supply AC 220V, 50Hz, single phase
05 Power 1.1 Kw
06 Machine dimension (L ×W×H) 2200mm×1500mm×1200mm
07 Machine weight About 300 Kg





Machine details:

This machine is specially designed for small bottles from 10ml to 150ml, Easy operation, simple maintenance and reliable running, This machine is equipped with outlet bottle quantitative testing and overload protection device, noise <70dB, the main material of this machine are all use SS304, easy to clean and sterilize,Using automatic reverse bottle rejection principle, equipped with bottle accumulation device, greatly increased the production efficiency. The bottle part use start wheel:

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 0



Big volume Bottle hopper can effective reduce the times for putting bottle:

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 1



Electrical parts:
The electrical part are in top side of machine, can prevent water and material inside it, safety and environmental.



PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 2

Safety door:

All doors are equipped with photoelectric induction, emergency door opening, machine shutdown alarm to ensure personnel safety.

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 3

Drawing for Reference



PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 4

Packaging & Shipping

1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 5



Ware hourse for finished packed machines:

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 6



Loading machines into container:

We have a professional logistics team responsible for shipping

PLC Controlled Edible Oil Filling Machine Fully Automatic High Speed Bottle Unscrambler 7
