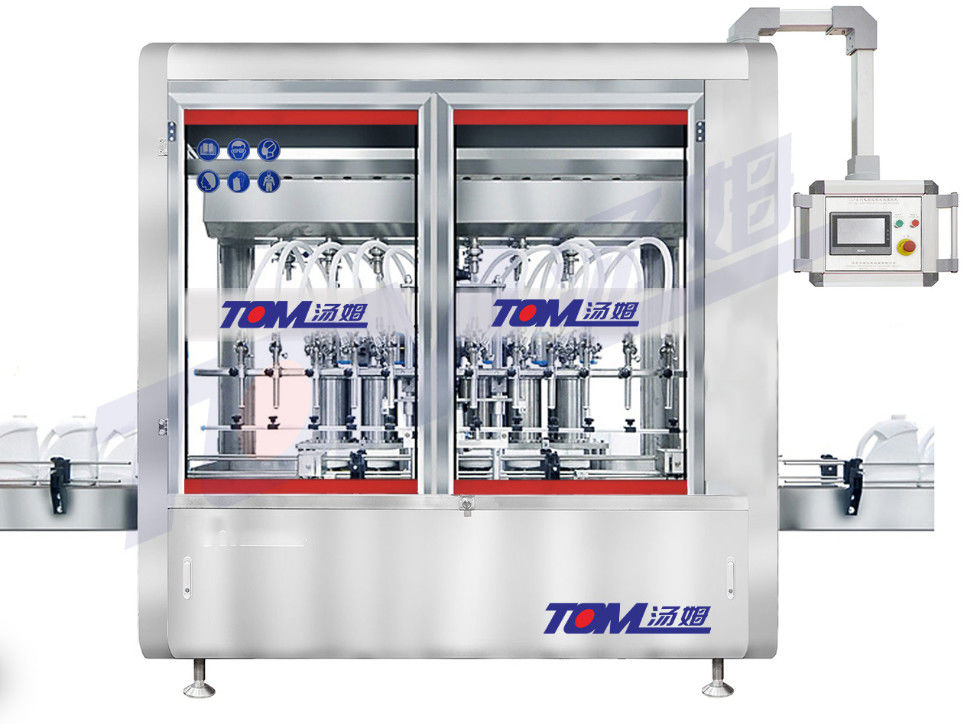

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH

Product Details

Place of Origin: Changzhou, China

Brand Name: TOM

Certification: ISO9001:2000, ISO14001, OHSAS18001, CE, CO

Model Number: GZH-6LA1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Non-fumigation Wooden Case inserted Iron Shelf, Suitable for Long Time Sea Delivery

Delivery Time: 30 WORKING DAYS

Payment Terms: T/T

Supply Ability: 25SETS/MONTHLY

Get Best Price
Highlight:

5L Edible Oil Filling Machine

,

Automatic Edible Oil Filling Machine

,

1200BPH edible oil bottle packing machine

Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
Material:
SS304 Or SS316L
Pneumatic Element:
Airtac
Electronic Element:
Siemens, Schneider Or Panasonic
Filling Tank:
Including
Liquid Level Sensor:
Including
Cleaning Function:
Including
1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH

1L-5L 6 Nozzles Automatic PLC Controlled Edible Oil Filling Machine 1200BPH

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 0

Major characteristics:

This is linear piston filling machine, especially designed for high viscous, low viscous and non-viscous products. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.

1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of all filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. Various sealing rings used can meet different characteristics of products requirements.

4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.

5. The material which contacts liquid will be made of SS316L.

6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.



Technical parameters

No. Items Performance
01 Power supply AC220V; 50Hz (may customized)
02 Power 1.5 Kw-4.5Kw
03 Air source 0.55Mpa-0.6Mpa clean and stable compressed air
04 Round bottle Height: 100-320mm; diameter:Ф100-Ф180mm
05 Flat bottle Length:100-200mm; Width:40-80mm; Hieght:100-320mm
06 Bottle neck (minimum) Ф40mm (may customized)
07 Filling product High viscous, low viscous and non-viscous products
08 Filling range 1L-5L
09 Filling error ≦±4g
10 Number of filling nozzles 6/8/10/12 filling heads
11 Production capacity 1200/1800/2400/3000 bottles/hour
12 Machine weight about 1500Kg
13 Machine dimension (L×W×H) 2400mm×1500mm×2200mm



Machine details:

Filling nozzle:

The filling nozzle is extended, can diving into the bottle bottom to filling, filling meanwhile going up, to prevent bubbles.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 1

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 2



The position of adjustment are all carved scale or equipped with digital display, easy to adjust; and specification adjustment can be achieved without tool;

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 3

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 4



Part of filling hopper:

(1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.

(2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.

(3) Designing and production meet GMP. Easily dismantle, clean and maintain.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 5



Piston fall off piston cylinder

For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 6



Conveyor and drip gutter: the conveyors before filling and after filling equipped with drip gutter also, to prevent liquid drop on ground and pollution workshop.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 7



Application products:

This filling machine is good work for vaious of cooking oil

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 8



Protection door: All doors on the machine are equipped with safety door switches and full range of interlock control. If any door is opened, the machine cannot start or stop automatically.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 9



Touch screen: The support of touch screen adopts 360-degree rotatable bracket, which is easy to operate, simple and generous in appearance, strong in practicability, and gives the operator a kind of enjoyment at one's own will.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 10



Cable trays: simple structure, beautiful appearance, flexible configuration and convenient maintenance, so that the cables and air pipes on the site are not messy.

1L-5L Automatic Edible Oil Filling Machine 6 Nozzles 1200BPH 11
