Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L

Product Details

Place of Origin: China

Brand Name: TOM

Certification: CE/ISO9001

Model Number: GZZ-12DA1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 2500 mm(L)*2000 mm(W)* 2500 mm(H)

Delivery Time: 30 working days

Payment Terms: L/C, T/T

Supply Ability: 25 Sets Per Month

Get Best Price
Highlight:

Personal Care Product Shampoo Filling Machine

,

Shampoo Filling Machine 100ML

,

1L shampoo filling equipment

Voltage:
220V/380V,380V/50Hz
Material:
POM
Certification:
ISO9001,CE,ISO,CE/ISO
Warranty:
1 Year,12months,One Year
Machine Type:
Time Gravity
Filling Accuracy:
+/-0.5%
Filling Range:
100ml-1L
Weight:
1500 Kg
Voltage:
220V/380V,380V/50Hz
Material:
POM
Certification:
ISO9001,CE,ISO,CE/ISO
Warranty:
1 Year,12months,One Year
Machine Type:
Time Gravity
Filling Accuracy:
+/-0.5%
Filling Range:
100ml-1L
Weight:
1500 Kg
Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L

Personal Care Product Filling Machine

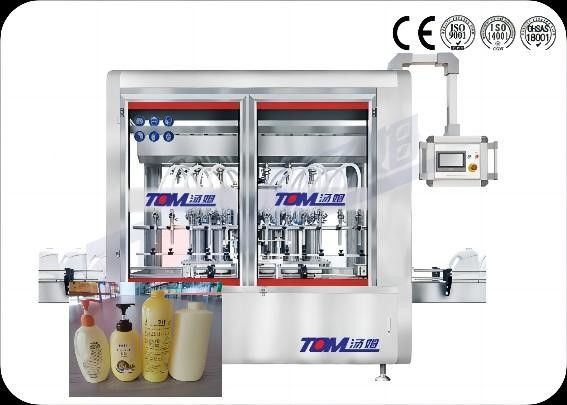

Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L 0



Video Link:



Main features:

1.The machine adopts programmable logic controller (PLC) to control and touch screen operation: (1) Because of the different height of bottle for each specification, the height of feeding head can only be adjusted manually without tools (height adjustment 100mm-250mm) and takes about 5 minutes. Due to the different specifications of each bottle, the adjustment range of the filling head satisfies the requirement of bottle type (adjustment distance of 45mm-95mm) from 100ml-1000ml, For manual tool-free adjustment, it takes about 10 minutes (adjust the distance between the feeding nozzle and the baffle); (2) high degree of automation, can memorized sets of parameters to achieve more convenient and quick for different specifications, All adjustments are implemented in the touch screen and operate reliably. Application of touch screen technology, the operation of the machine more reliable, convenient, more friendly man-machine interface.

2.all the piston use one set of dynamical system controlled, double screw, double guide rail, insure the piston running with high precision and high speed, it means filling precision and stable;

3.Cylinder or motor-driven filling head operation of the dive filling method, with the variable speed filling function can be set and lengthened feeding head, can reduce foaming when filling the bubble materials, to prevent material spills caused bottle and bottle mouth pollution;

4.In addition to liquid level control for the normal working level control, also increase high and low level detection and sound and light alarm device to prevent liquid level anomaly; abnormal level host alarm, and can be implemented on the feed valve or feed pump control;



Major Technical Parameter:

Filling head 12
Capacity About 3600 bottles/hour for 500ml
Suitable bottle 100ml-1L
Bottle mouth ≥Ø 18mm(Special specifications are customized according to customer samples)
Power supply 380V;50Hz
Power 3.0 kw
Outer dimension 2000mm(L)×1400mm(W)×2600mm(H)
Machine’s weight about 1000 kg




Suitable Bottle:

Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L 1



Packaging & shipping:

Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L 2



Company Overview--Jiangsu Tom Group

Personal Care Product Shampoo Filling Machine PLC Controlled Automatic 100ML-1L 3

Tom "The Little White House"

Jiangsu Tom Group is an enterprise specializing in the production of pesticide / veterinary medicine, fertilizer and chemical intelligent equipment. The factory covers an area of 150 acres and has a construction area of 120,558 square meters. It has 710 employees, 2 doctoral students, 30 master students, and 358 undergraduates. It has obtained ISO9001 quality system. Certification, ISO14001 Environmental Management System Certification, OHSAS18001 Occupational Health and Safety System Certification, CE Certification, Jiangsu Province Specialized Specialized New "Little Giant" Enterprise, Changzhou Specialized Specialized New Small and Medium Enterprise, 125 National Utility Patents and 26 National Inventions patent. Over the past 24 years, after the hard work of Tom people, Tom Group has continued to innovate and develop, keeping pace with the times, providing generations of advanced intelligent packaging equipment for more than 3,300 pesticide / veterinary medicine, fertilizer and chemical companies, and building Industry 4.0 intelligent factories for customers; Provide automated three-dimensional warehouse; create smart factory production data acquisition and execution system (MES) for customers.
